Instructions for Use EN Olympus AFU-100
16 WB135745-W10
5 Accessories
5.1 Footswitch

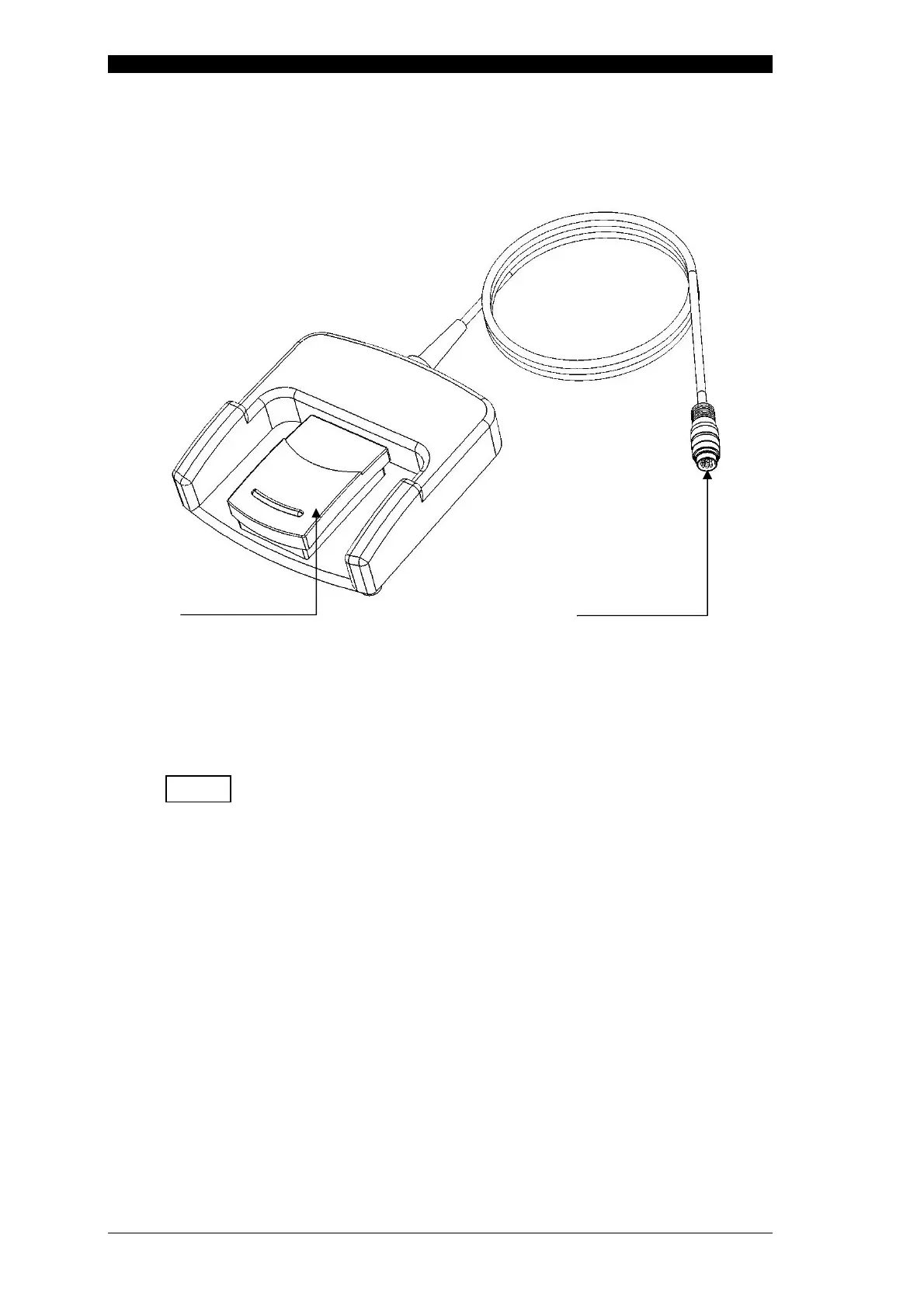

21 Footswitch pedal
This pedal is used to activate / deactivate the selected flow level.
22 Footswitch plug
Connects the footswitch with the peristaltic pump unit on the rear panel.
NOTE
The footswitch is an optional accessory. The selected flow level can
also be activated / deactivated with the flow activation / deactivation
button (4) as well as with a special button on the electrosurgical unit’s
footswitch
.
5.2 Pump tube
The achievable flow rate depends on the diameter of the inserted pump tube, the used
instrument (including its accessories) and the setting of the flow level (see chapter 11.1,
Pump tube characteristics, chapter 7.3, Pump tube insertion and connection and
chapter 7.4, Flow selection).
6 Installation and commissioning
The unit must be properly installed and commissioned by Olympus or your distributor or
by a person or firm commissioned and authorised by the manufacturer.
Prepare the peristaltic pump unit and other equipment to be used with this peristaltic
pump unit before each use. Refer to the instructions for use of the equipment, and
install and connect all equipment as described on the following pages.
Footswitch pedal (21)
Footswitch plug (22)
