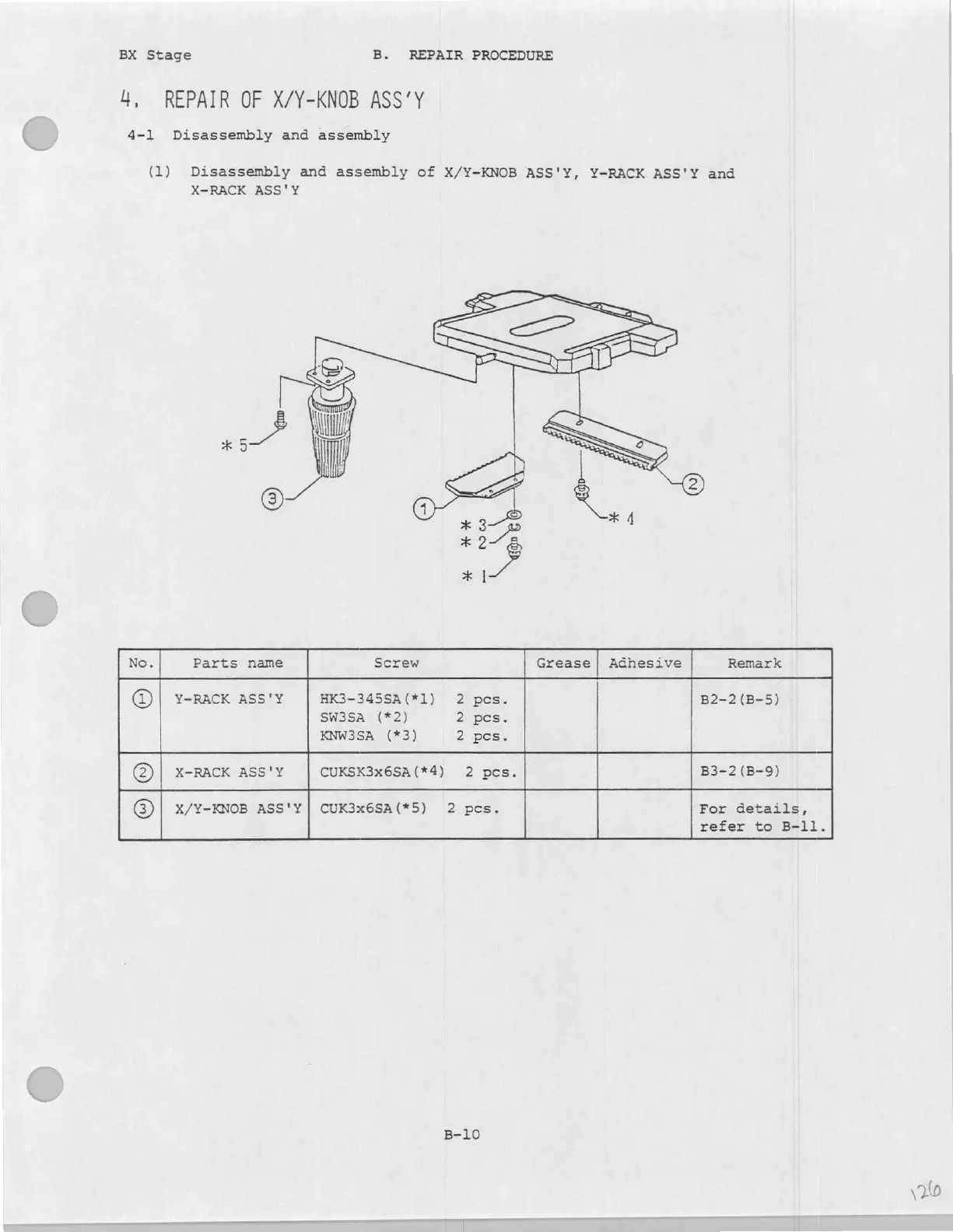

BX
4,
Stage
B.
REPAIR
PROCEDURE
REPAIR
OF
X/Y-KNOB
ASS'Y
4-1
Disassembly
and
assembly
(1)
Disassembly
and
assembly
of
X/Y-KNOB
ASS'Y,
Y-RACK
ASS'Y
and
X-RACK
ASS'Y
No.
Parts
name
Screw
Grease
|
Adhesive
Remark
(O)
|
Y-RACK
ASS'Y
|
HK3-345SA(*1)
2
pes.
B2-2(B-5)
SW3SA
(*2)
2
pes.
KNW3SA
(*3)
2
pes.
|
x-RACK
ASS'Y
|
CUKSK3x6SA(*4)
2
pes.
B3-2
(B-9)
©
|
x/Y-KNOB
AsS'Y|
CUK3x6SA(*5)
2
pes.
For
details,
refer
to
Bell.
B-10
lo
