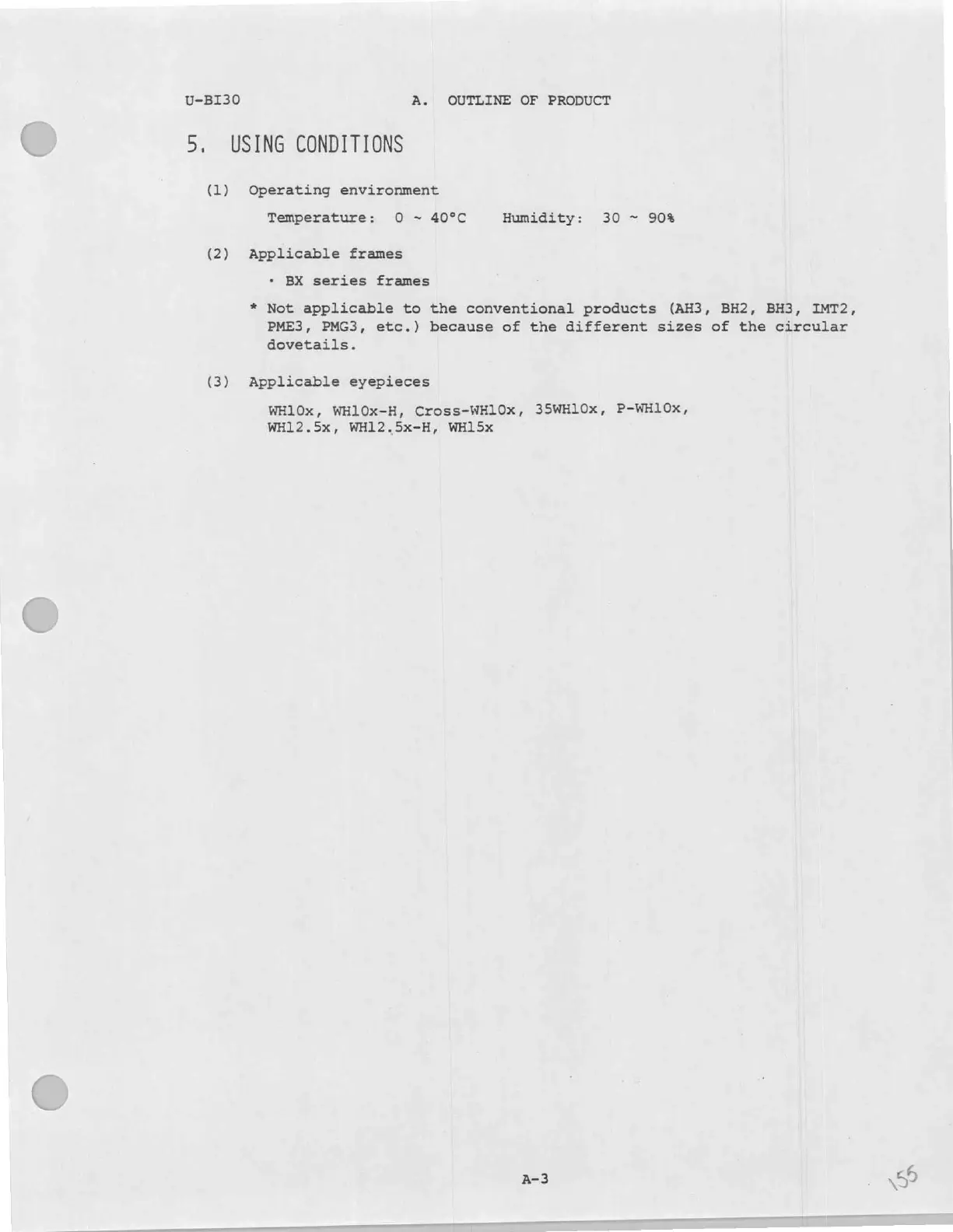

U-BI30
A.
OUTLINE
OF
PRODUCT
5,
USING
CONDITIONS
(1)
Operating
environment
Temperature:
0 ~
40°C
Humidity:
30
~
90%
(2)
Applicable
frames
ㆍ
BX
series
frames
*
Not
applicable
to
the
conventional
products
(AH3,
BH2,
BH3,
IMT2,
PME3,
PMG3,
etc.)
because
of
the
different
sizes
of
the
circular
dovetails.
(3)
Applicable
eyepieces
WH10x,
WH1Ox-H,
Cross-WH10x,
35WH10x,
P-WH1Ox,
WH12.5x,
WH12.5x-H,
WH15x
