Olympus bx40 Service Manual

BX40F
E.
REPAIR
PROCEDURE

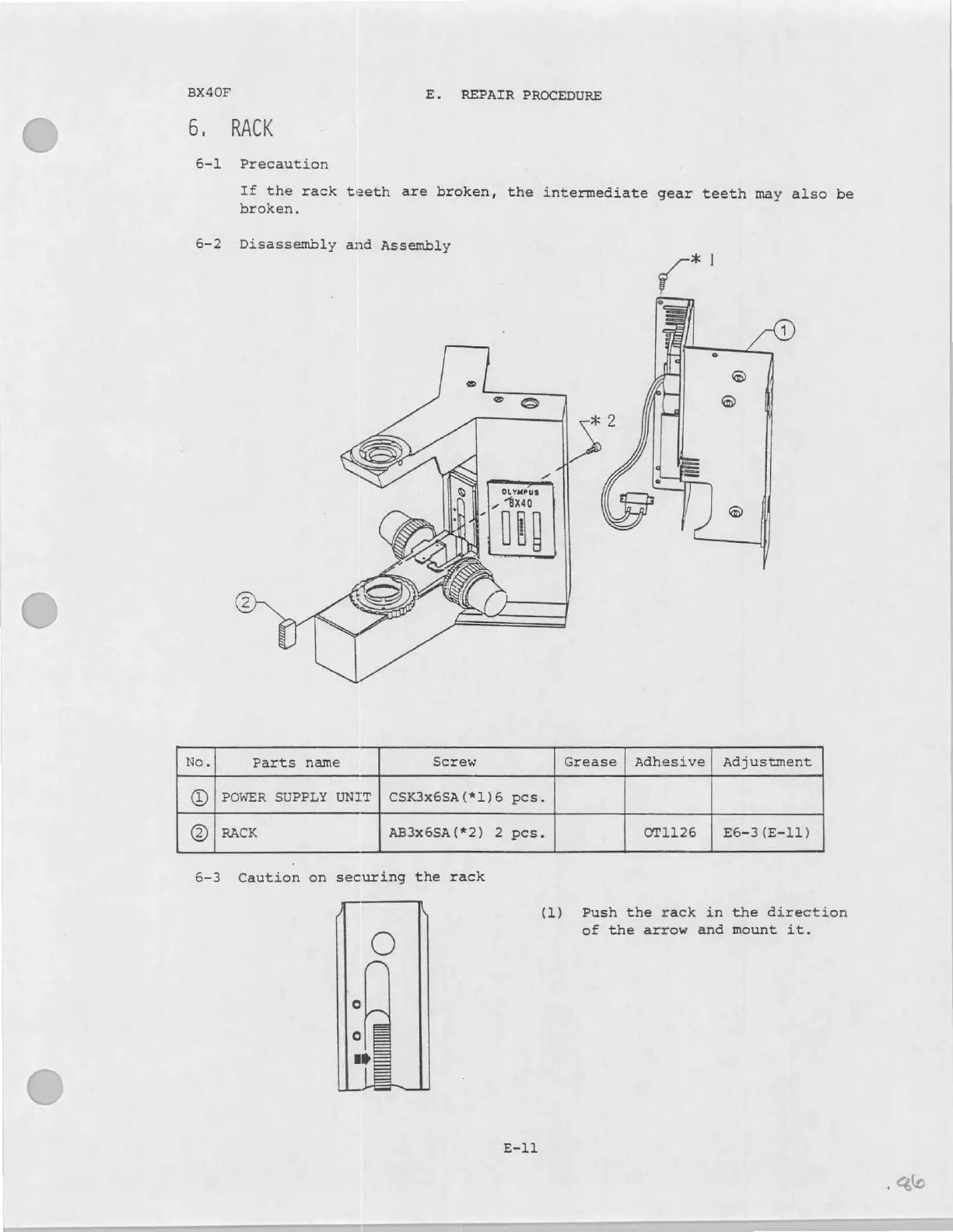

6. RACK
6-1 Precaution
If
the
rack
teeth
are
broken,
the
intermediate
gear
teeth
may
also
be
broken.
6-2 Disassembly and Assembly
OLYMPUS
„0
DE
No. Parts name Screw Grease | Adhesive | Adjustment
© POWER SUPPLY UNIT | CSK3x6SA(*1)6 pcs.
© | Rack AB3x6SA(*2) 2 pes. OT1126 | E6-3(E-11)
6-3 Caution on securing the rack
(1) Push the rack in the direction
of the arrow and mount it.
E-11
. 26

Olympus bx40 Specifications

General

Illumination	Transmitted Light
Light Source	6V 30W Halogen lamp
Observation Method	Brightfield
Stage	Mechanical stage
Objectives	Plan Achromat
Focusing	Coaxial coarse and fine focusing knobs
Observation Tube	Binocular or Trinocular (depending on configuration)
Nosepiece	Revolving
Condenser	Abbe condenser (NA 1.25)
Eyepiece	WH10X/22
Magnification	40x - 1000x (depending on objectives)
Diopter Adjustment	Yes (on at least one eyepiece)
