Olympus bx40 Service Manual

U-BI30
1,
С.

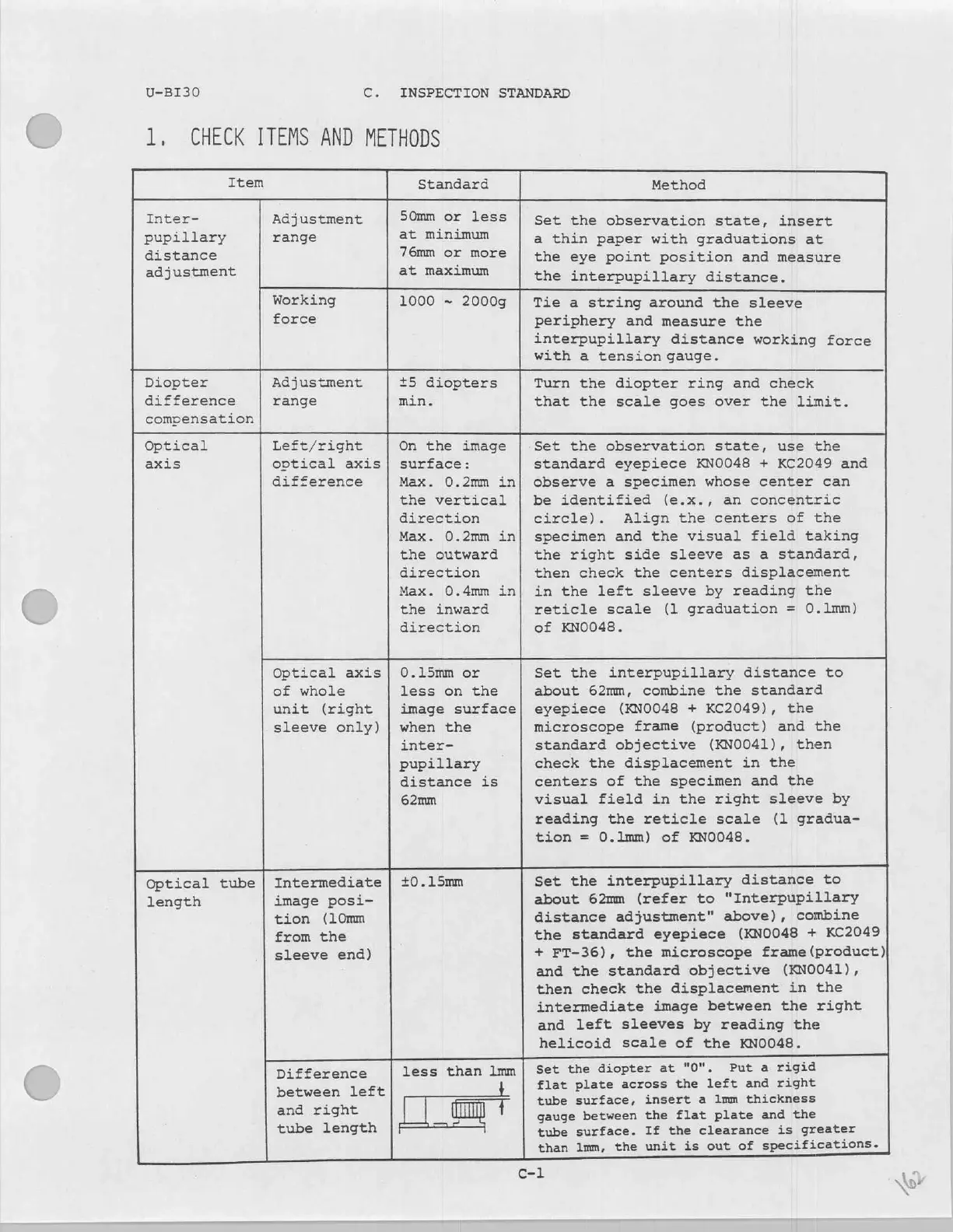

INSPECTION STANDARD
CHECK ITEMS AND METHODS
Item Standard Method
Inter- Adjustment SOmm Or less | set the observation state, insert
pupillary range at minimum a thin paper with graduations at
distance 76mm or more | the eye point position and measure
adjustment at maximum the interpupillary distance.
Working 1000 ~ 2000g Tie a string around the sleeve
force periphery and measure the
interpupillary distance working force
with a tension gauge.
Diopter Adjustment +5 diopters Turn the diopter ring and check
difference range min. that the scale goes over the limit.
compensation
Optical Left/right On the image Set the observation state, use the
axis optical axis | surface: standard eyepiece KN0048 + KC2049 and
difference Max. 0.2mm in| observe a specimen whose center can
the vertical
direction
Max. 0.2mm in
the outward
direction
Max. 0.4mm in
be identified (e.x., an concentric
circle). Align the centers of the
specimen and the visual field taking
the right side sleeve as a standard,
then check the centers displacement
in the left sleeve by reading the
the inward reticle scale (1 graduation = 0.1mm)
direction of KN0048.
Optical axis | 0.15mm cr Set the interpupillary distance to
of whole
unit (right
sleeve only)
less on the
image surface
when the
inter-
pupillary
distance is
62mm
about 62mm, combine the standard
eyepiece (KN0048 + KC2049), the
microscope frame (product) and the
standard objective (KN0041), then
check the displacement in the
centers of the specimen and the
visual field in the right sleeve by
reading the reticle scale (1 gradua-
tion = 0.lmm) of KN0048.
Optical tube
length
Intermediate
image posi-
tion (10mm
from the
sleeve end)
+0.15mm
Set the interpupillary distance to
about 62mm (refer to "Interpupillary
distance adjustment" above), combine
the
standard
eyepiece
(KN0048
+
KC2049
+ FT-36), the microscope frame(product)
and the standard objective (KN0041),
then check the displacement in the
intermediate image between the right
and left sleeves by reading the
helicoid scale of the KN0048.
Difference
between left
and right
tube length
less than Imm
+
„m
1
Set the diopter at "0". Put a rigid
flat plate across the left and right
tube surface, insert a 1mm thickness
gauge between the flat plate and the
tube
surface.
If
the
clearance
is
greater
than
lmm,
the
unit
is
out
of
specifications.
C=1

Olympus bx40 Specifications

General

Illumination	Transmitted Light
Light Source	6V 30W Halogen lamp
Observation Method	Brightfield
Stage	Mechanical stage
Objectives	Plan Achromat
Focusing	Coaxial coarse and fine focusing knobs
Observation Tube	Binocular or Trinocular (depending on configuration)
Nosepiece	Revolving
Condenser	Abbe condenser (NA 1.25)
Eyepiece	WH10X/22
Magnification	40x - 1000x (depending on objectives)
Diopter Adjustment	Yes (on at least one eyepiece)
