BX40F

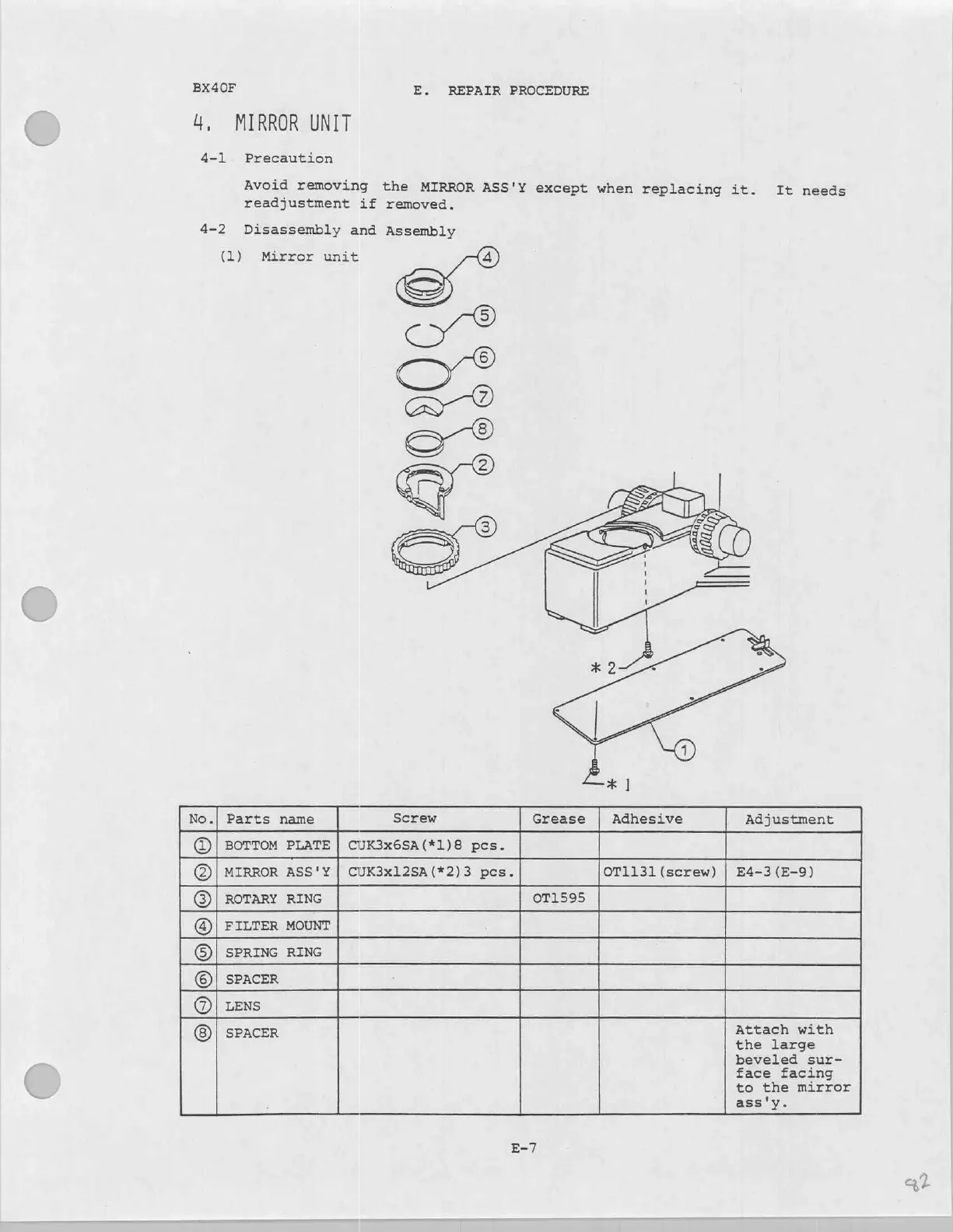

MIRROR UNIT
4-1 Precaution
4,
4-2
E. REPAIR PROCEDURE
Avoid
removing
the
MIRROR
ASS'Y
except
when
replacing
it.
It
needs
readjustment
if
removed.
(1) Mirror unit
Disassembly and Assembly
-x I
Parts name
Screw
Grease Adhesive
Adjustment
BOTTOM PLATE CUK3x6SA(*1)8 pcs.
MIRROR ASS'Y CUK3x12SA(*2)3 pes. OT1131 (screw)
E4-3(E-9)
ROTARY RING
OT1595
FILTER MOUNT
SPRING RING
SPACER
LENS
ΘΙΘΙΘΙΘΙΦΙ9/Φ/Θὅ
SPACER
Attach with
the large
beveled sur-
face facing
to the mirror
ass'y.
Qh
