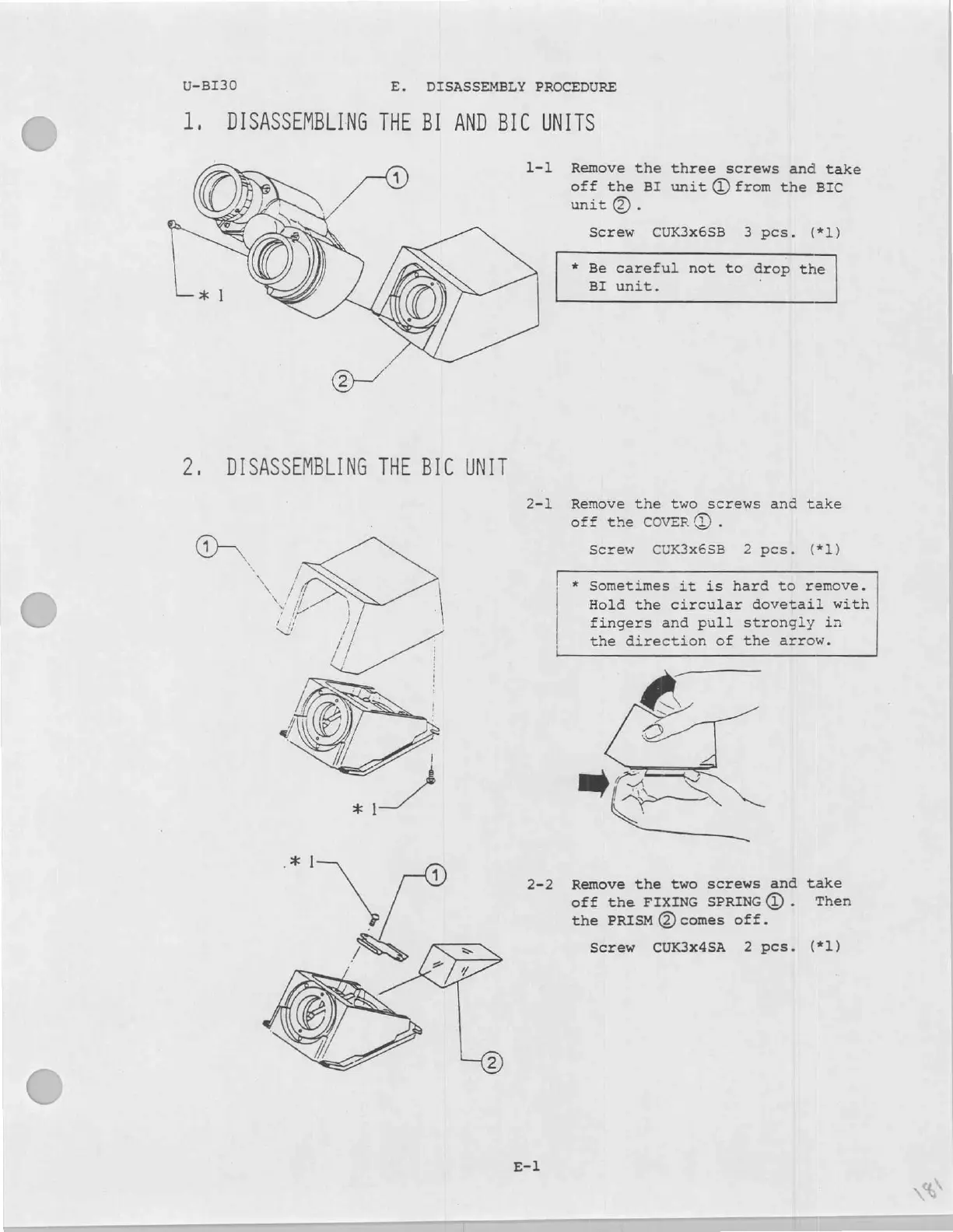

U-BI30 E. DISASSEMBLY PROCEDURE
1. DISASSEMBLING THE BI AND BIC UNITS
Remove the three screws and take
off the BI unit @ from the BIC
unit @.
Screw CUK3x6SB 3 pcs. (*1)
* Be careful not to drop the
BI unit. '
2, DISASSEMBLING THE BIC UNIT
2-1 Remove the two screws and take
off the COVER ©.
Screw CUK3x6SB 2 pcs. (*1)
* Sometimes it is hard to remove.
Hold the circular dovetail wit
fingers and pull strongly in
the direction of the arrow.
.* 1
2-2 Remove the two screws and take
off the FIXING SPRING@). Then
the PRISM (O) comes off.
у DR Screw CUK3x4SA 2 pcs. (*1)
7) SN

Olympus bx40 Specifications

General

Illumination	Transmitted Light
Light Source	6V 30W Halogen lamp
Observation Method	Brightfield
Stage	Mechanical stage
Objectives	Plan Achromat
Focusing	Coaxial coarse and fine focusing knobs
Observation Tube	Binocular or Trinocular (depending on configuration)
Nosepiece	Revolving
Condenser	Abbe condenser (NA 1.25)
Eyepiece	WH10X/22
Magnification	40x - 1000x (depending on objectives)
Diopter Adjustment	Yes (on at least one eyepiece)
