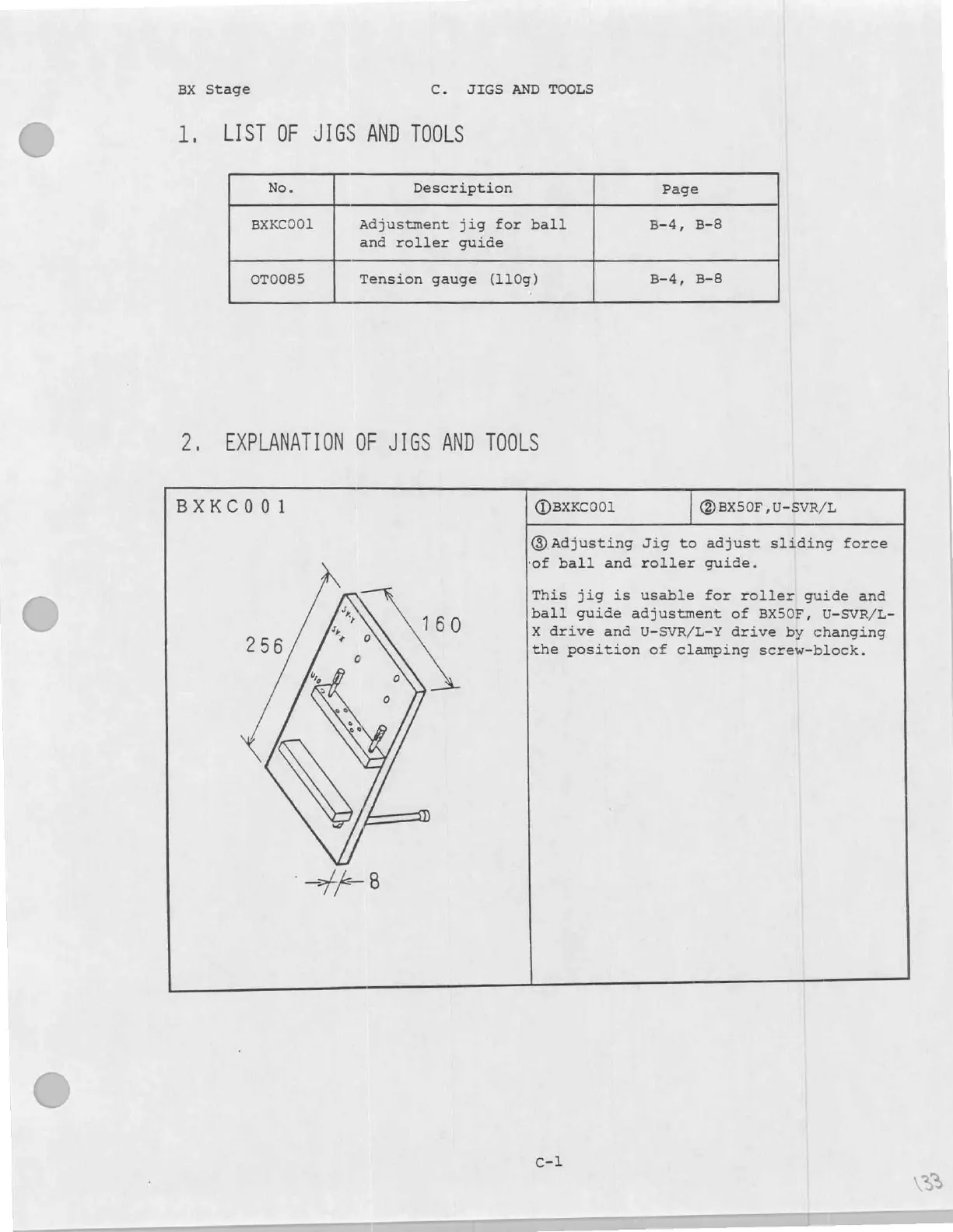

BX Stage С. JIGS AND TOOLS
1, LIST OF JIGS AND TOOLS
No. Description Page
BXKC001 Adjustment jig for ball B-4, B-8
and
roller guide
OT0085 Tension gauge (110g) B-4, B-8
2. EXPLANATION OF JIGS AND TOOLS
ВХКСО 0 1
①BXKC001 @BX50F ,U-SVR/L
@ Adjusting Jig to adjust sliding force
‘of ball and roller guide.
This jig is usable for roller guide and
ball guide adjustment of BX50F, U-SVR/L-
X drive and U-SVR/L-Y drive by changing
the position of clamping screw-block.

Olympus bx40 Specifications

General

Illumination	Transmitted Light
Light Source	6V 30W Halogen lamp
Observation Method	Brightfield
Stage	Mechanical stage
Objectives	Plan Achromat
Focusing	Coaxial coarse and fine focusing knobs
Observation Tube	Binocular or Trinocular (depending on configuration)
Nosepiece	Revolving
Condenser	Abbe condenser (NA 1.25)
Eyepiece	WH10X/22
Magnification	40x - 1000x (depending on objectives)
Diopter Adjustment	Yes (on at least one eyepiece)
