BX40F E. REPAIR PROCEDURE

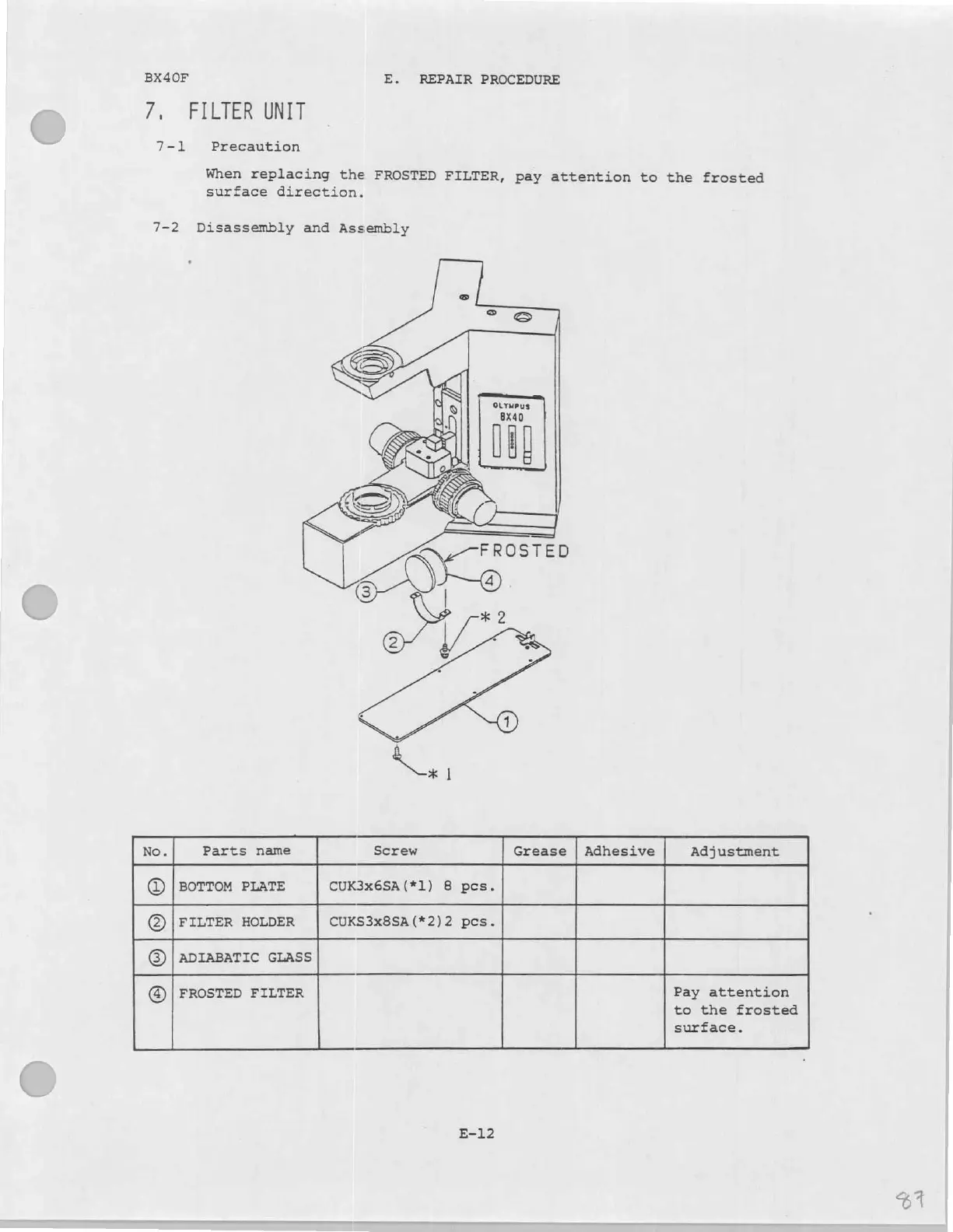

7, FILTER UNIT
7-1 Precaution
When
replacing
the
FROSTED
FILTER,
pay
attention
to
the
frosted
surface
direction.
7-2 Disassembly and Assembly
ouYupus
No. Parts name Screw Grease | Adhesive Adjustment
(D | BOTTOM PLATE CUK3x6SA (*1) 8 pcs.
© | FILTER HOLDER CUKS3x8SA (*2)2 pes.
© | ADIABATIC GLASS
(© | FROSTED FILTER Pay attention
to the frosted
surface.
E-12
DS

Olympus bx40 Specifications

General

Illumination	Transmitted Light
Light Source	6V 30W Halogen lamp
Observation Method	Brightfield
Stage	Mechanical stage
Objectives	Plan Achromat
Focusing	Coaxial coarse and fine focusing knobs
Observation Tube	Binocular or Trinocular (depending on configuration)
Nosepiece	Revolving
Condenser	Abbe condenser (NA 1.25)
Eyepiece	WH10X/22
Magnification	40x - 1000x (depending on objectives)
Diopter Adjustment	Yes (on at least one eyepiece)
