Olympus FL 36R User Manual

21
EN

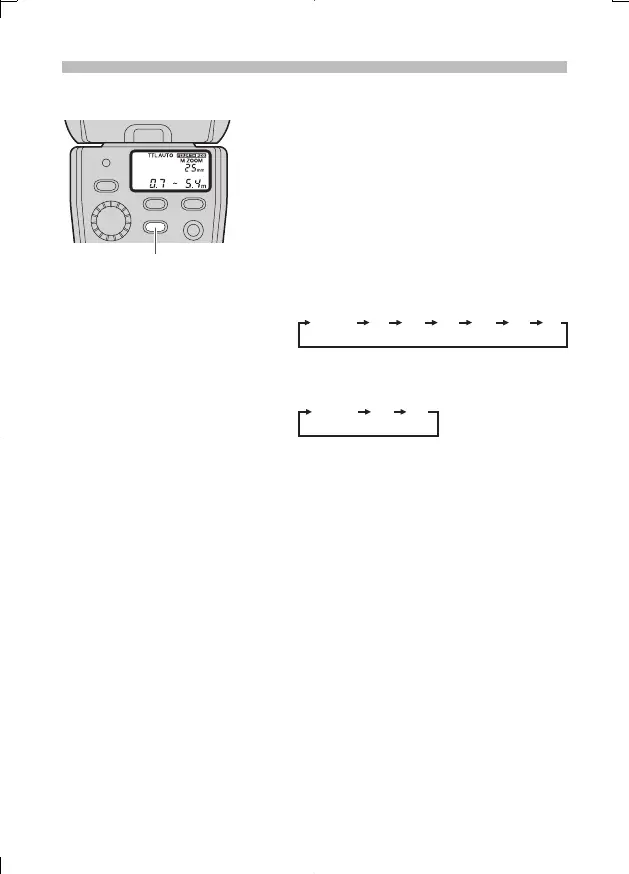

Setting the firing angle (ZOOM)
The firing angle can be adjusted manually.
1 Press the ZOOM button to adjust the
firing angle.
 The [M ZOOM] indicator lights in the
control panel.
 The firing angle can be set to one of 12,
14, 17, 25, 35 and 42 mm (24, 28, 35, 50,
70 and 85 mm with the 135 type).
Each press of the ZOOM button switches
the firing angle as follows.
12 14 17 25 35 42
ZOOM
*
(24) (28) (35) (50) (70) (85)
When the wide panel is used
g “Using the wide panel” (P. 24):
10 8
ZOOM
*
(20) (16)
* [ZOOM] (auto) can be selected only
when the camera in use is equipped with
the communication capability.
x
Notes
 Selecting a value larger than the focal length of the lens in use will darken
the peripheral areas of the image.
ZOOM button
r2067e000cs2j.indb21r2067e000cs2j.indb21 2007/10/0110:49:522007/10/0110:49:52
