Attaching to the camera
Confirm that both the camera and electronic flash are off.
Attaching or removing the electronic flash while either the flash or the
camera is on may result in malfunction.

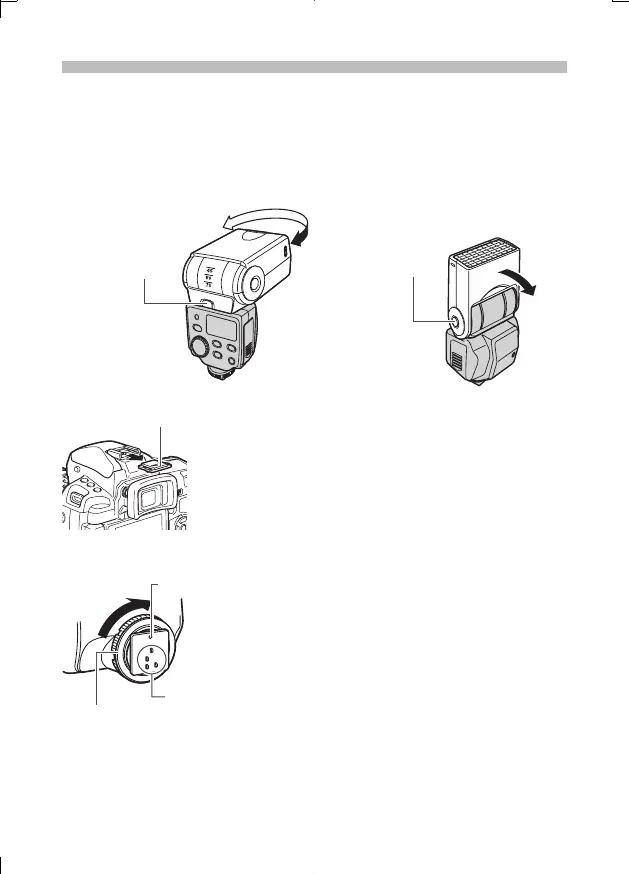

1 Pressing the bounce lock release button, place the light-emitting
section in standard position (horizontal, front).
2 Remove the hot shoe cover from the
camera.
 Store the hot shoe cover in the pocket
located on the inner side of the flash case.
3 Loosen the lock ring.
 If the lock pin is protruding, pull it back
inside by turning the lock ring as far as it
will go in the direction opposite to LOCK.
x
Notes
 Do not apply excessive force to the lock
pin.
 Do not touch the electric contacts with a
finger or metallic object.
 Do not attach the electronic flash while
the lock pin is protruding. Otherwise,
malfunction may result.
Bounce lock
release button
(left-right direction)
Electric
contacts
Lock pin
Hot shoe cover
Lock ring
Bounce lock
release button
(up-down direction)
