Installation and Connection 3-14 ISSUE1
When adding the compatible electrosurgical generator to the compatible high
flow insufflation unit and the ltrasonic generator.
CAUTION
To prevent malfunction, connect either the compatible
electrosurgical or ultrasonic generator to the compatible high
flow insufflator. Do not connect both the compatible
electrosurgical and ultrasonic generators to the insufflator at
the same time.
When connecting three devices or more, do not use two of
communication cable 10 m. Otherwise, the communication
may fail.
When adding the compatible electrosurgical generator to the compatible high flow insufflation unit and the
ultrasonic generator that have been already connected, follow the below steps (see Figure 3.14).
1. Connecting the communication cable 0.25 m to the compatible
electrosurgical generator
Connect the plug of the communication cable 0.25 m to the LINK-IN or
LINK-OUT connector of the compatible electrosurgical generator.
2. Connecting the communication cable 0.25 m to the ultrasonic generator
Connect the other plug of the communication cable 0.25 m to the LINK-IN or
LINK-OUT connector of the ultrasonic generator.

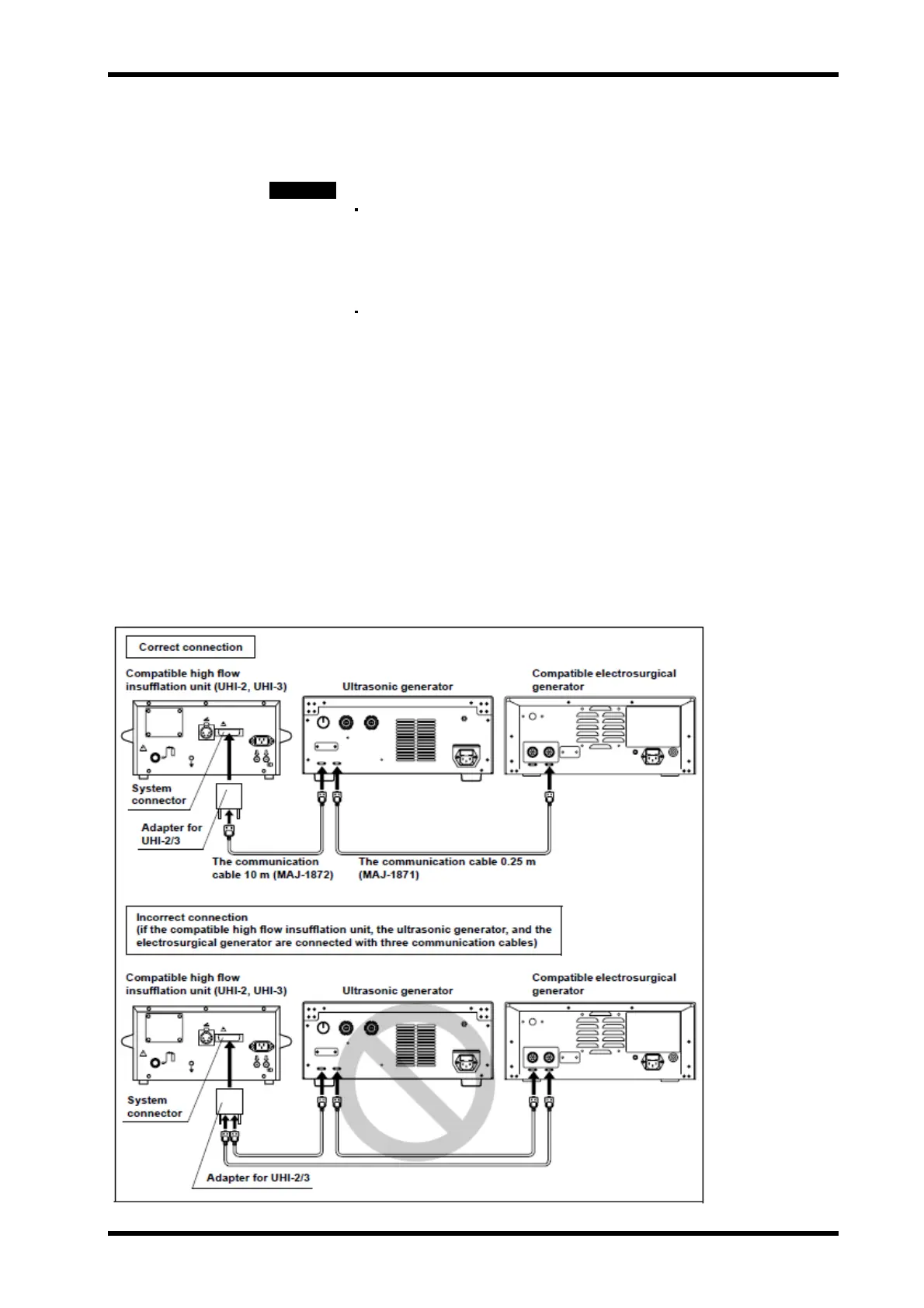

Figure 3.14
To Next Page
