Process

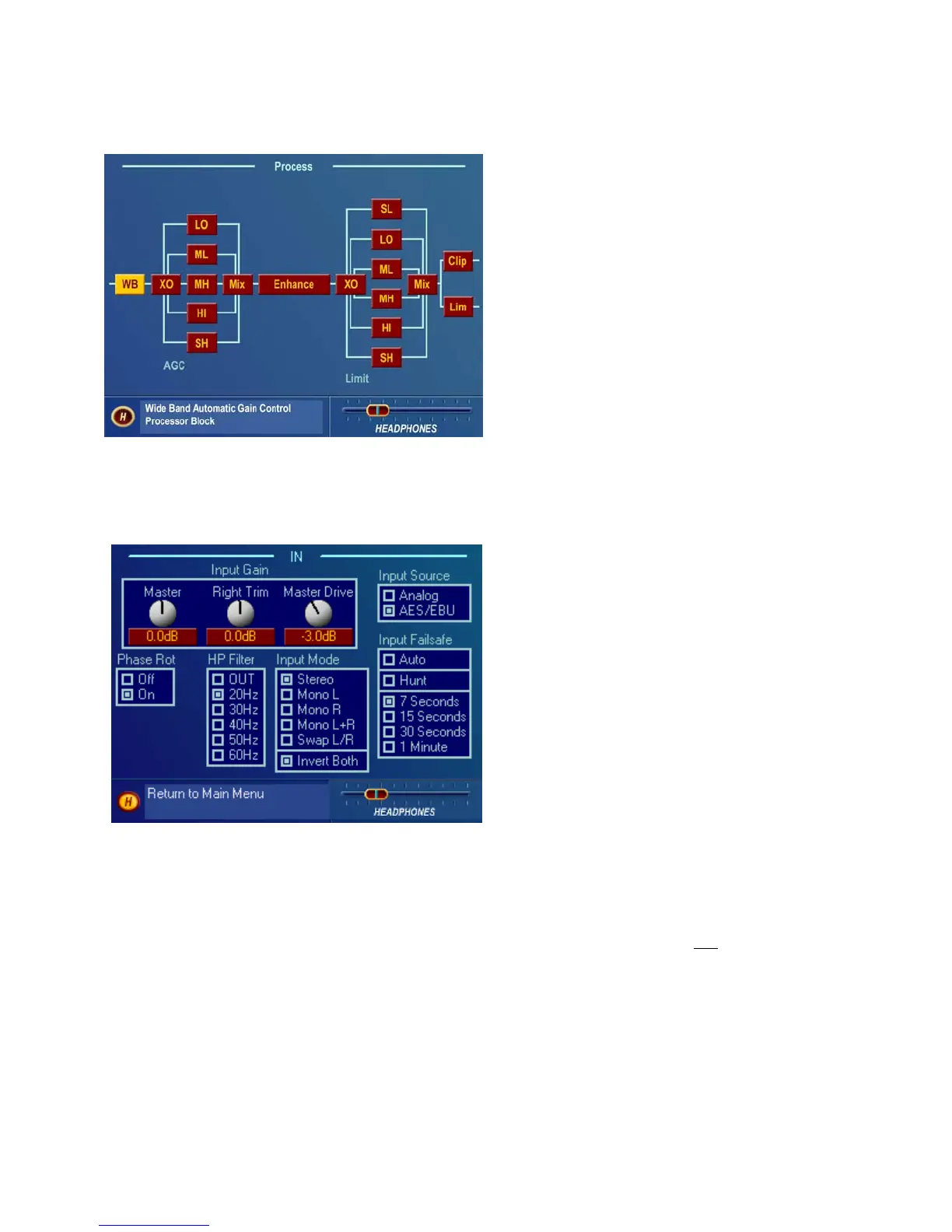

This menu is a graphical block-diagram representation
of the signal flow through the Omnia-6fm. Each block-
diagram icon, when highlighted and clicked, opens up
a parameter window that pertains to that part of the
Omnia-6EX processing circuitry. See Chapter 5, “Fine
Tuning Your Sound” starting on Page 61 for an in-
depth discussion of using this menu to edit presets.
Process Menu
Input
This menu has six items:
• Input Gain Master, Right Trim, Master Drive
• Input Source Selection
• Invert Both Channels Option
• Input Mode Selection
• HP Filter Selection
• Phase Rotation Selection
Input Menu
Input Gain Master / Right Trim
These controls set both the analog and digital input peak levels (simultaneously). For analog and digital signals, the
control range is from –12.0 to +12.0 dB of gain. The factory default control setting of 0.0dB corresponds to a
maximum peak input level of +22dBu. To change the input sensitivity, highlight the Master (Not
Master Drive)
control and click, then use the jog-wheel to adjust the level in precise 0.1 dB steps. –12.0 dB has the least amount of
gain; +12.0 dB is the maximum gain. This control adjusts the gain of both the Left and Right channels
simultaneously. Compare the setting of this control with the input bargraph meters so that signal peaks (the
“bouncing balls”) read between -12 and -6 dBFS. To correct any balance errors, use the Right Trim control. This
control adjusts only the gain of the Right Channel over a limited range of plus or minus 3 dB in precise 0.1 dB steps.
To Next Page
