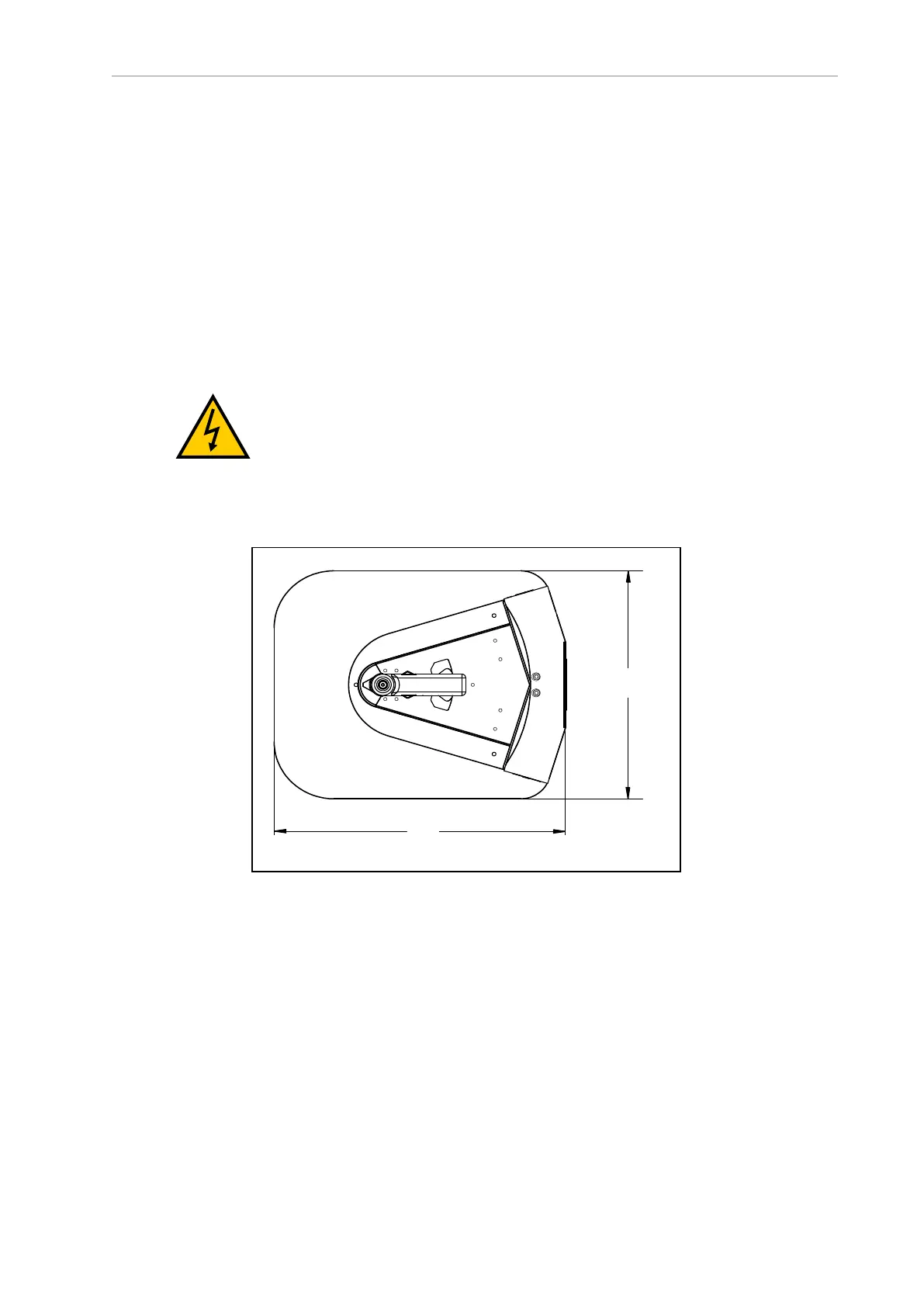

168 LD Cart Transporter User's Manual 14766-000 Rev H
10.9 î ±Replacing Non-Periodic Parts
The fuses are available from the factory as P/N 02212-000L. Equivalent fuses are available gen-
erically. The fuses need to be 250 V, 10 A, and Time-lag. An example of a fuse that meets this
is:
LittelFuse 0215010.XP, 5x20 mm cartridge type
Docking Station Internal Fuse
NOTE: The following procedure applies only to legacy docking sta-
tions. There are no user-serviceable fuses on the current docking sta-
tion.
Symptoms: When the docking station is switched on, the blue power light does
not come on, but the docking station can charge a battery manually.
WARNING: ELECTROCUTIONî ±RISK
Unplug power from the docking station before starting. The dock-
ing station cover is NOT interlocked. Remove the power cord at
the charger.
1.
Remove the ten screws from the back cover of the docking station.
Two of these are on the sides, near the bottom.
Figure 10-14. Docking Station Rear Cover Screws (8 of 10)
Retain the screws for reassembly.
2.
Remove the rear cover of the docking station.
3.
Locate the in-line fuse.
It will be near the top of the docking station, just to the right of the central
terminal bar.
4.
Remove the old fuse, and replace it with a new fuse.
