Router or other peripheral
BY35S/BY50S
BY80S
2-3 Connecting the equipment
Connecting a device to the power supply output
(1) Disconnect the AC Input Plugs of all devices you want
to back up such as your PC and modems from a wall
outlet (commercial power).
(2) Connect devices you want to back up to the Power
Supply Output Receptacles of the UPS.
• If you need more output receptacles than those of
the UPS, purchase a plug strip and use it for extra
output receptacles.
Wall outlet
(commercial power)
Router or other
peripheral
PC

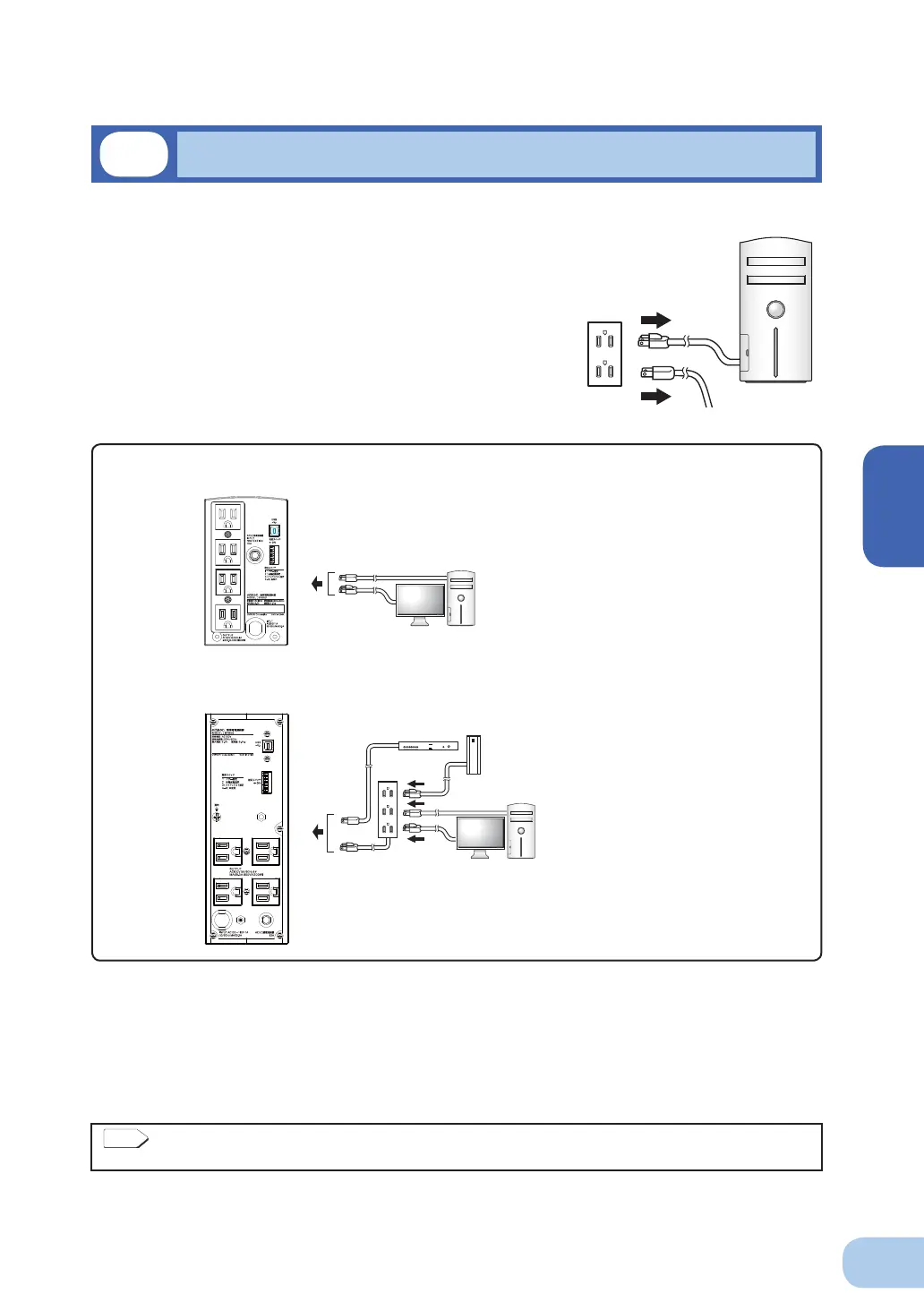

< Example of connection 1 >
< Example of connection 2 >
• A 2-pin input plug of a connecting device can be connected to the power supply output
receptacle whithout modifi cation. (Note 1)
Note 1: This connection cannot be performed when the unit is used in compliance with UL standards.
(3) If you use the included UPS monitoring software or the standard UPS service of Windows NT or
Windows XP/2000 or if you use Contact Signal, connect the connecting cable between the UPS
and your PC.
See also
"7. Using the UPS monitoring software " Page 40.
* If you do not use the UPS monitoring software this step is not required.
BY35S / BY50S / BY80S / BY120S
2
11
