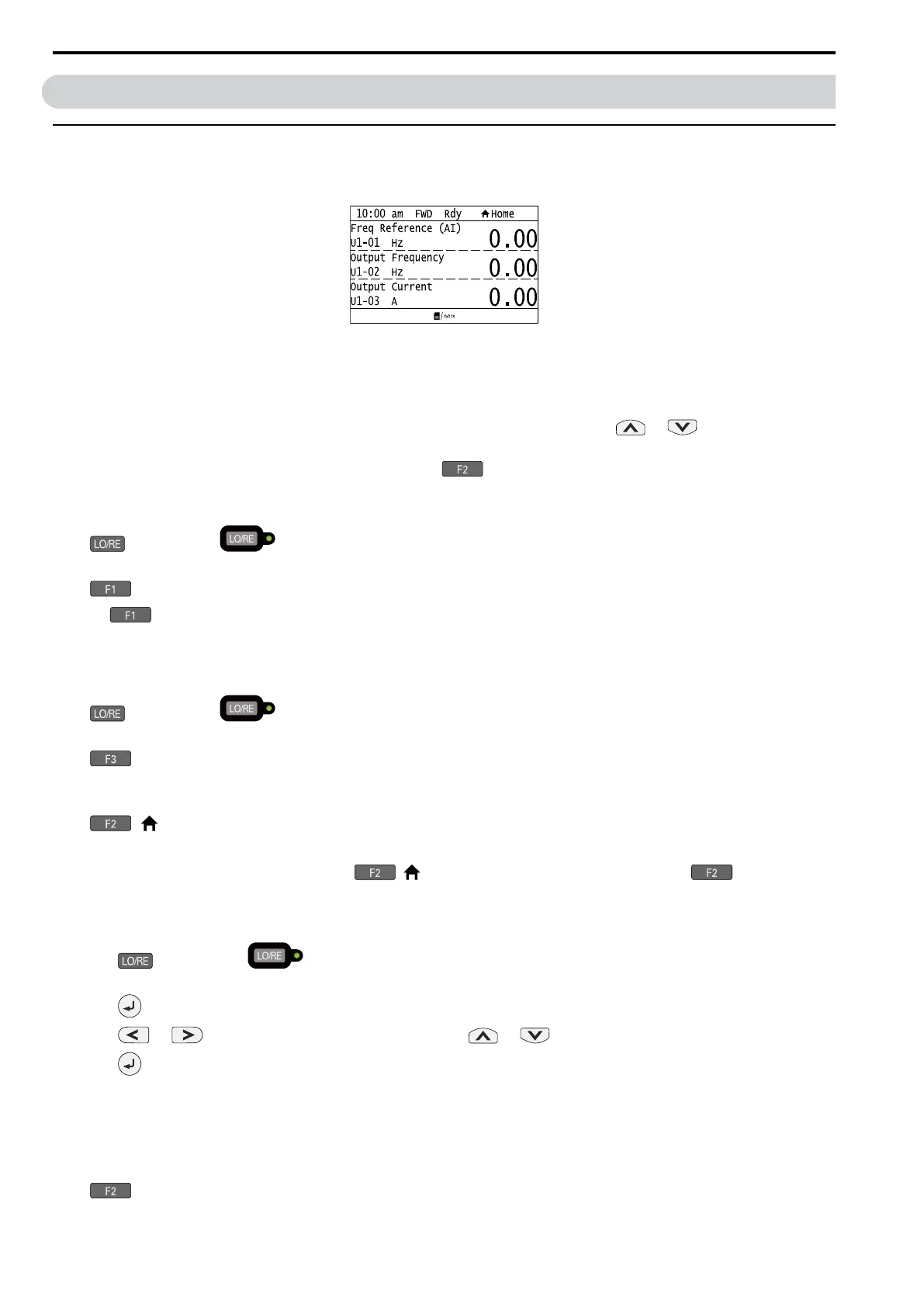

4.5 Keypad Operation
128 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
4.5 Keypad Operation
◆ Use the HOME Screen
The functions that can be controlled from the HOME screen and the content that is displayed are explained in the
following.
■ View Monitors Shown in Home Screen
By default, the HOME screen shows monitor data in the data display area.
• To change what the screen shows, change the setting for o1-40 [Home Screen Selection Mode].
• When o1-40 is set to “Custom Monitors”, and there is more than one screen, use or to switch between
screens.
• To toggle between 6-line mode and 3-line mode, press for 2 seconds.
■ JOG Operation
Push to illuminate .
The LO/RE key is only active in Monitor menus.
Push (JOG) to run the motor.
Release to stop the motor.
■ Change Motor between Forward/Reverse Run
You can change the direction of motor rotation when operating the drive from the keypad.
Push to illuminate .
The LO/RE key is only active in Monitor menus.
Push (FWD/REV) to toggle the direction of motor rotation between forward and reverse.
■ Show the Standard Monitor
Push ( ) to go back to the HOME screen.
Note:
When a fault, minor fault, or an error occurs, push ( ) until the content of the fault is displayed. Push again to show the
standard monitors (Ux-xx).
■ Change the Frequency Reference Value
1. Push to illuminate .
The LO/RE key is only active in Monitor menus.
2. Push to access the screen to change the frequency.
3. Push or to select the specified digit, then push or to change the value.
4. Push to confirm the change.
Note:
The HOME screen must show U1-01 [Frequency Reference].
You can activate the LO/RE key only in the HOME screen.
■ Show the Main Menu
Push to show the main menu.
