Omron ZEN 10 User Manual

Programmable Relay ZEN 11
Expansion I/O Units
AC input DC input

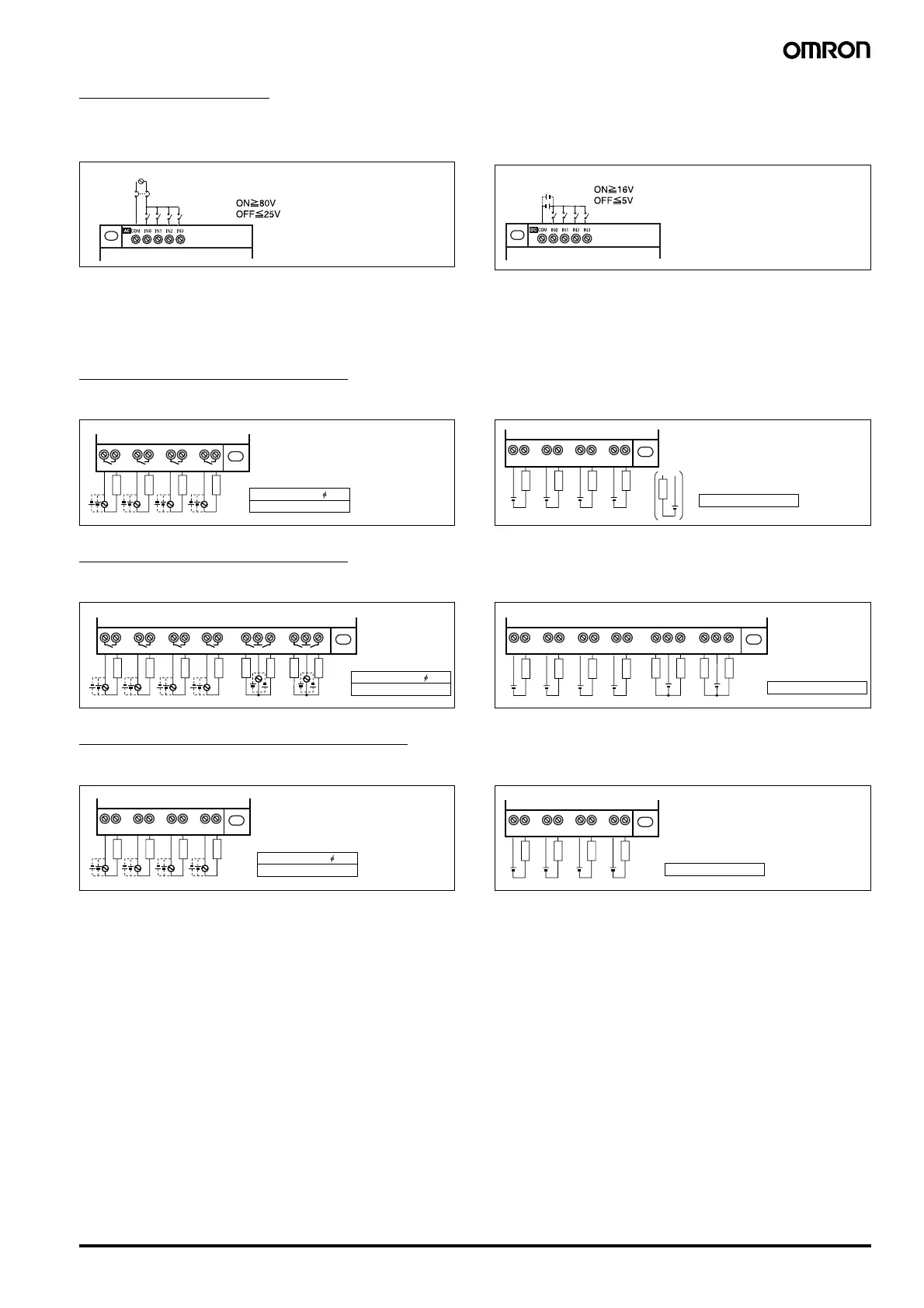

■ Output Circuit Wiring
CPU units with 10 I/O points
Relay output Transistor output
CPU units with 20 I/O points
Relay output Transistor output
Expansion units with 10 I/O points
Relay output Transistor output
Note: Units with Relay Outputs
All four relay output circuits in both CPU Units with 10 I/O points and Expansion I/O Units have independent contacts. CPU Units with 20 I/
O points have 4 independent contacts (Q0 to Q3) and the remaining four (Q4 to Q7) have 2 points/common. There are no restrictions for
polarity.
Note: Transistor Output Type
All four transistor output circuits in both CPU Units with 10 I/O points and Expansion I/O Units have independent contacts. CPU Units with
20 I/O points have 4 independent contacts (Q0 to Q3) and the remaining four (Q4 to Q7) have 2 points/common. The terminals have polarity,
but the power supply and load connections can be swapped
Expansion I/O Units
Circuit
protector
L
N
Input
devices
Expansion I/O Units (DC input type)
Note: Expansion I/O Units can be connected
to either the positive (+) or negative (–) common terminal.
24 VDC, 6.5 W
Input devices
Q 0 Q 1 Q 2 Q 3
Load Load Load Load
CPU Units with 10 I/O points
Switching capacity
250 VAC, 8 A (cos = 1)
24 VDC, 5 A
Load Load
Load
Load
Load
CPU Units with 10 I/O points
Switching capacity
Q 0
+
- + - + - + -
Q 1 Q 2 Q 3
24 VDC, 0.5 A
Load Load Load Load Load
Load Load Load
Q 0 Q 1 Q 2 Q 3 Q 4 Q 5 Q 6 Q 7
CPU Units with 20 I/O points
Switching capacity
250 VAC, 8 A (cos = 1)
24 VDC, 5 A
Load Load Load Load Load Load Load Load
CPU Units with 20 I/O points
Switching capacity
+ - + - + - + - + -- + --
Q 0 Q 1 Q 2 Q 3 Q 4 Q 5 Q 6 Q 7
24 VDC, 0.5 A
Load Load
Load Load
OUT 0 OUT 1 OUT 2 OUT 3
Expansion I/O Units
Switching capacity
250 VAC, 8 A (cos = 1)
24 VDC, 5 A
Load Load Load Load
Expansion I/O Units
Switching capacity
OUT 0 OUT 1 OUT 2 OUT 3
24 VDC, 0.5 A
