Omron ZEN 10 User Manual

Programmable Relay ZEN 3

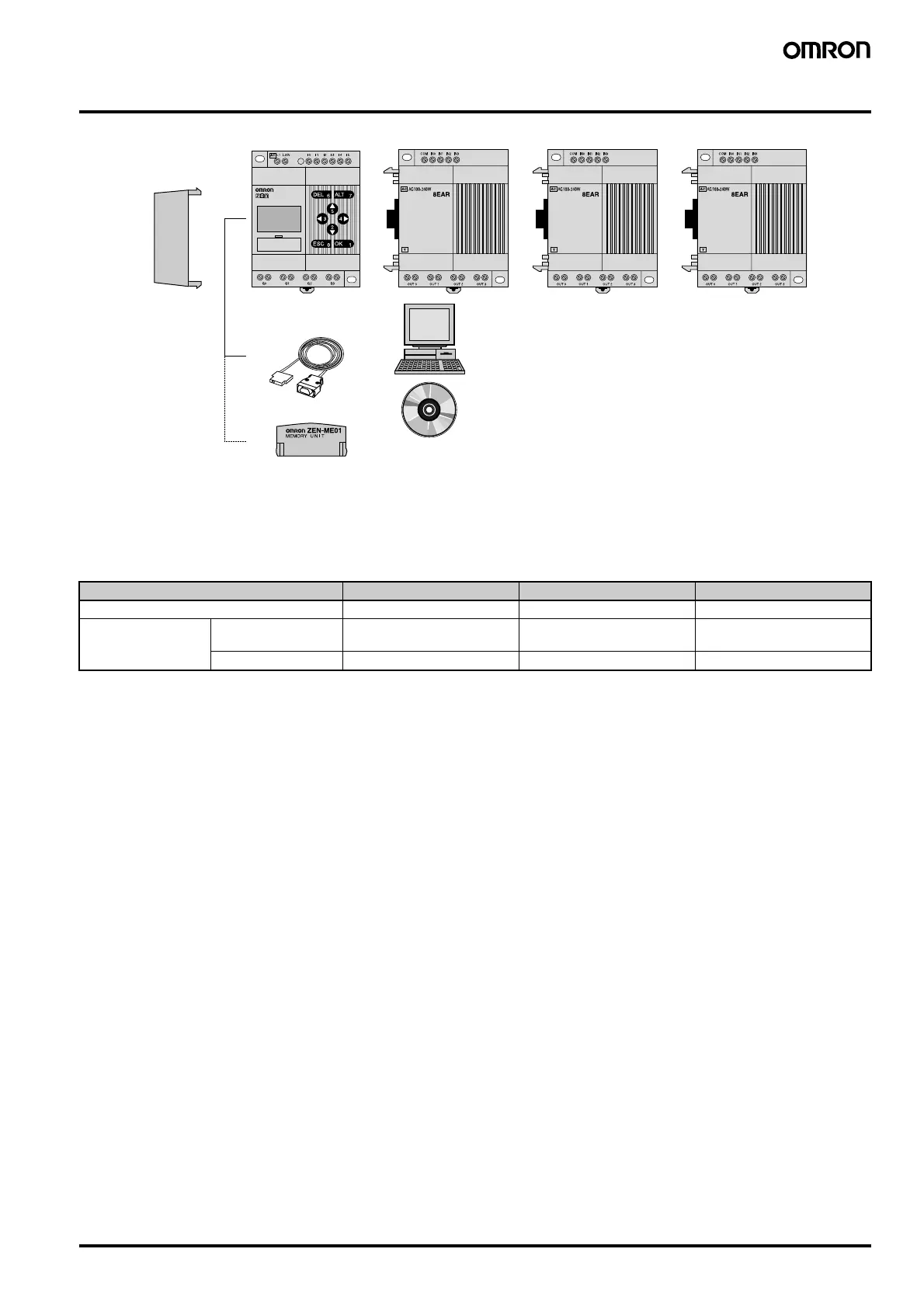

System Configuration
■ Support Software and CPU Unit Combinations
Note: Only half of each of the timer, holding timer, counter, weekly timer, calendar timer, and display function areas can be used
(i.e., the Pre-V1 bit range).
Support Software Version ZEN-SOFT01 Ver. 1.00 ZEN-SOFT01-V2 Ver. 2.00 ZEN-SOFT01-V3 Ver. 3.00
Pre-V1 Units Can be used. Can be used. Can be used.
V1 Units 10 I/O points Can be used, with restrictions
(See note.)
Can be used, with restrictions
(See note.)
Can be used.
20 I/O points Cannot be used. Cannot be used. Can be used.
NC
AC100-200V
100AR-A-V1
CPU Unit Expansion I/O Unit
Battery Unit
Connecting Cable
Memory Cassette
Support Software
• Up to 3 Expansion I/O Units can be
connected, regardless of the I/O
specifications or Unit type.
• The Connecting Cable and Memory
Cassette cannot be connected to the
ZEN at the same time.
• Programs cannot be written to LED-type
CPU Units without the ZEN Support
Software or a Memory Cassette.
