Programmable Relay ZEN 5

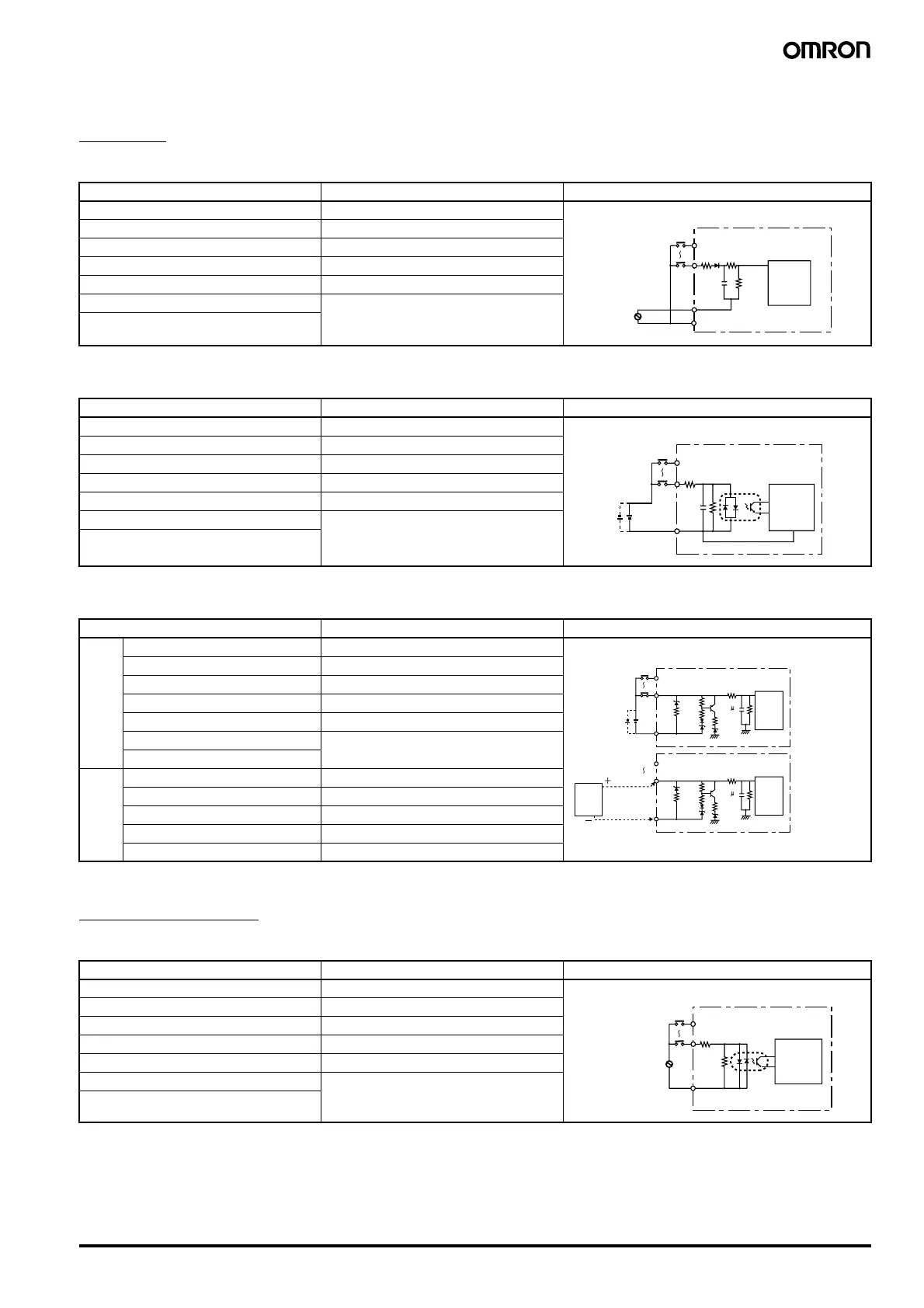

■ Input Specification
CPU Unit
AC Inputs (Not Isolated)
Note: Can be selected using the input filter settings
DC Inputs I0 to I3 (I0 to I9 for Units with 20 I/O points), V1 Units (Photocoupler Isolated).
Note: Can be selected using the input filter settings
DC Inputs I14 and I15 (Ia and Ib for Units with 20 I/O points), V1 Units (Not Isolated)
Note: Can be selected using the input filter settings.
Expansion I/O Unit
AC Inputs (Photocoupler Isolated)
Note: Can be selected using the input filter settings.
Item Specifications Circuit drawing
Input voltage 100 to 240 VAC +10%, –15%, 50/60 Hz
Input impedance 680 kW
Input current 0.15 mA/100 VAC, 0.35 mA/240 VAC
ON voltage 80 VAC min.
OFF voltage 25 VAC max.
ON response time 50 ms or 70 ms at 100 VAC (See note.)
100 ms or 120 ms at 240 VAC (See note.)
OFF response time
Item Specifications Circuit drawing
Input voltage 24 VDC +10%, –15%
Input impedance 5 kW
Input current 5 mA (typ.)
ON voltage 16.0 VDC min.
OFF voltage 5.0 VDC max.
ON response time 15 ms or 50 ms (See note.)
OFF response time
Item Specifications Circuit drawing
DC inputs
Input voltage 24 VDC +10%, –15%
Input impedance 5 kW
Input current 5 mA (typ.)
ON voltage 14.0 VDC min.
OFF voltage 4.5 VDC max.
ON response time 15 ms or 50 ms (See note.)
OFF response time
Analog inputs
Input range 0 to 10 V
External input impedance 150 k_ min.
Resolution 0.1 V (1/100 FS)
Overall accuracy (–25 to 55°C) 10% FS
AD conversion data 0 to 10.5 V (in increments of 0.1 V)
Item Specifications Circuit drawing
Input voltage 100 to 240 VAC +10%, –15%, 50/60 Hz
Input impedance 83 kW
Input current 1.2 mA/100 VAC, 2.9 mA/240 VAC
ON voltage 80 VAC min.
OFF voltage 25 VAC max.
ON response time 50 ms or 70 ms at 100 VAC (See note.)
100 ms or 120 ms at 240 VAC (See note.)
OFF response time
100 to 240 VAC
IN
IN
N
L
330 k Ω 330 k Ω
51 k Ω
0.1 µF
Internal
circuit
24 VDC
4.1 k
Ω 750 kΩ
Internal
circuit
2200PF
IN
IN
COM
150 kΩ27 kΩ
150 kΩ27 kΩ
27 kΩ
27 kΩ
Internal
circuit
Internal
circuit
When connecting
analog I/O
devices, always
connect the
negative (–) side
to the COM
terminal.
Analog
voltage
output
device
24 VDC
2.4 kΩ
2.4 kΩ
100 kΩ
100 kΩ
4 kΩ
4 kΩ
IN
IN
0.01 F
COM
COM
IN
IN
0.01 F
100 to 240 VAC
83 k
Ω
4.7 kΩ
IN
IN
Internal
circuit
