Onkyo CR-505DAB User Manual

10

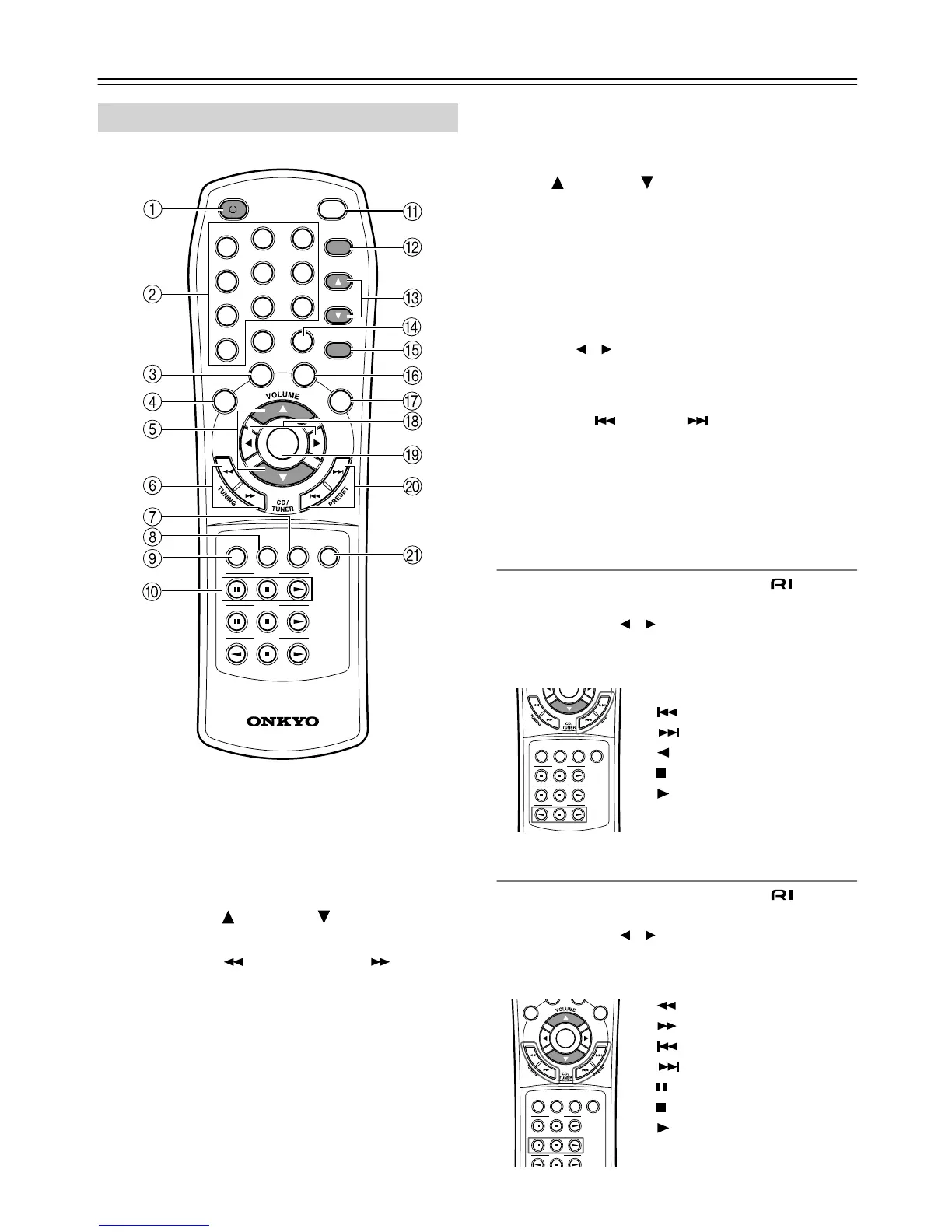

Controls & Connectors—Continued
1 STANDBY/ON button— Sets the CR-505DAB to On
or Standby.
2 Number buttons— Used to select CD tracks.
3 DISPLAY button— Used to display information.
4 SLEEP button— Used with the Sleep function.
5 VOLUME UP [ ] & DOWN [ ] buttons— Used
to set the volume.
6 Fast Reverse [ ] & Fast Forward [ ] buttons
(TUNING buttons)— Used for fast reverse and fast
forward when playing CDs, or for tuning when using
the radio.
7 AM button— Used to select AM tuner.
8 FM button— Used to select FM tuner.
9 DAB button— Used to select DAB tuner.
0 CD control buttons— Used to control CD playback.
A CLOCK CALL button— Used to display the current
time.
B TIMER button— Used to set the timers.
C Up [ ] & Down [ ] buttons— Used to set the tim-
ers.
D CLEAR button— Used with memory playback.
E ENTER button— Used to set the timers.
F MODE button— Used to set Random Play or Mem-
ory Play.
G REPEAT button— Used with repeat playback.
H INPUT [ ] [ ] selector buttons— Used to select
sound sources.
I MUTING button— Used to mute the CR-505DAB.
J Previous [ ] & Next [ ] buttons (PRESET
buttons)— Used to select the previous or next track
when playing CDs, or to select presets when using the
radio.
K DIRECT button— Used to select “Tone Direct On” or
“Tone Direct Off.”
Controlling an Onkyo Cassette Tape Deck
An Onkyo Cassette Tape Deck connected via (page 15)
can be controlled as follows:
1. Use the INPUT [ ]/[ ] selector buttons to select the
TAPE source.
2. Use the following buttons.
[ ] .................. Fast reverse
[ ] .................. Fast forward
[ ]..................... Other-side play
[ ] ...................... Stop
[ ]..................... Play
Controlling an Onkyo Mini Disc Recorder
An Onkyo Mini Disc Recorder connected via (page 15)
can be controlled as follows:
1. Use the INPUT [ ]/[ ] selector buttons to select the
MD source.
2. Use the following buttons.
[ ] ................... Fast reverse
[ ] ................... Fast forward
[ ] .................. Previous track
[ ] .................. Next track
[ ]...................... Pause
[ ] ...................... Stop
[ ]..................... Play
[REPEAT] .......... Repeat mode
Remote Controller
DIRECTAMFMDAB
TAPE
CD
MD
MUTING
--
/
---
7
8
9
10/0
4
5
6
2
3
1
CLOCK
CALL
TIMER
CLEAR
REPEAT
DISPLAY
SLEEP
MODE
ENTER
INPUT
STANDBY/ ON
R
C
-
581
S
AMFMDAB
DIRECT
TAPE
CD
MD
MUTING
INPUT
AMFMDAB
DIRECT
TAPE
CD
MD
MUTING
REPEAT
SLEEP
INPUT

Onkyo CR-505DAB Specifications

Power Output

power output (DIN)	20 W + 20 W (4 Ω, 1 kHz)
power output (JEITA)	25 W + 25 W (4 Ω, 1 kHz)
dynamic power	30 W + 30 W (4 Ω)

Total Harmonic Distortion

THD (AMP)	0.2% (5 W Output, 4 Ω)
THD (FM Stereo)	0.46% (1 kHz)
THD (FM Mono)	0.4% (1 kHz)
THD (AM)	1.60%
THD (DAB)	0.20%
THD (CD)	0.01%

Frequency Response

frequency response (AMP)	10 Hz-50 kHz/+3 dB, –3 dB (LINE)
frequency response (FM)	30 Hz-15 kHz/+1.5 dB, –1.5 dB
frequency response (DAB)	20 Hz-20 kHz
frequency response (CD)	20 Hz-20 kHz

General Specifications

power supply	AC 230-240 V, 50 Hz
power consumption	75 W
stand-by power consumption	1.0 W
dimensions (W x H x D)	205 W x 103 H x 356 D mm
weight	5.3 kg
