Onkyo CR-505DAB User Manual

6
Features
Amp
■ 25W/Ch into 6 ohms (1 kHz, 10%)
■ High Current, Low Impedance Drive
■ Discrete Output Stage Circuitry
■ Tone Control for Treble and Bass
■ Tone Direct
■ 3 Audio Inputs and 2 Outputs for TAPE, MD, LINE
■ Optical Digital Output
CD Player
■ Plays Music CDs and MP3 CDs
■ Wolfson Single-Bit D/A Converter
■ 20 Track Memory Playback
Tuner
■ DAB Tuning
■ 59 Presets for DAB
■ 40 Presets for AM and FM
■ Automatic FM Scan Tuning
■ RDS (CT/PS/RT)
Others
■ Aluminum Volume Knob & Front Panel
■ -Compatible Remote Control
■ 5-Mode Timer (Timer 1, 2, 3, 4/Sleep)

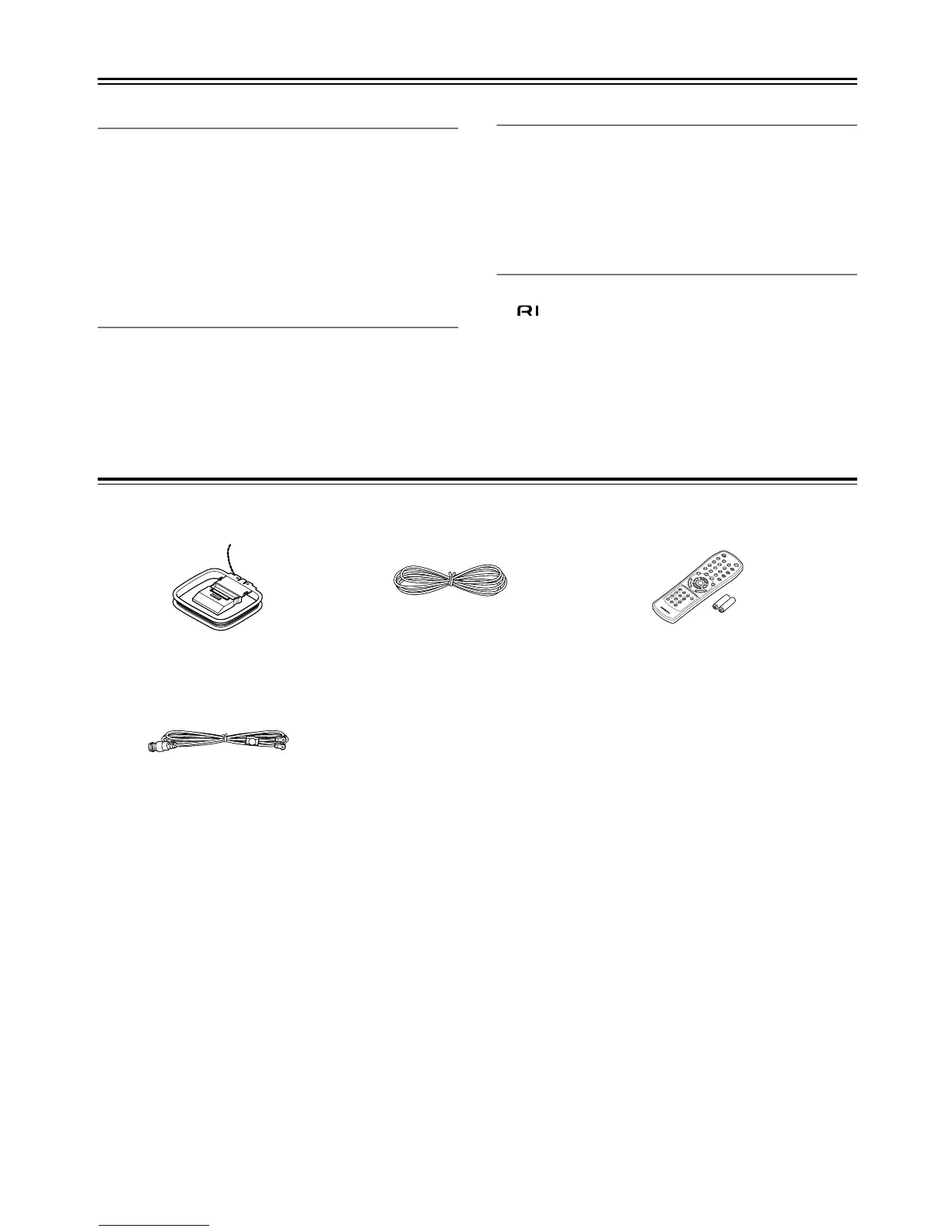

Supplied Accessories
Check that the following accessories are supplied with this unit.
*In catalogs and on packaging, the letter added to the end of the product name indicates the color of the CR-505DAB. Specifications and
operation are the same regardless of color.
AM loop antenna
FM indoor antenna
Remote controller (RC-581S)
two batteries (AAA/R03)
DAB antenna
R
C
-
5
8
1
S

Onkyo CR-505DAB Specifications

Power Output

power output (DIN)	20 W + 20 W (4 Ω, 1 kHz)
power output (JEITA)	25 W + 25 W (4 Ω, 1 kHz)
dynamic power	30 W + 30 W (4 Ω)

Total Harmonic Distortion

THD (AMP)	0.2% (5 W Output, 4 Ω)
THD (FM Stereo)	0.46% (1 kHz)
THD (FM Mono)	0.4% (1 kHz)
THD (AM)	1.60%
THD (DAB)	0.20%
THD (CD)	0.01%

Frequency Response

frequency response (AMP)	10 Hz-50 kHz/+3 dB, –3 dB (LINE)
frequency response (FM)	30 Hz-15 kHz/+1.5 dB, –1.5 dB
frequency response (DAB)	20 Hz-20 kHz
frequency response (CD)	20 Hz-20 kHz

General Specifications

power supply	AC 230-240 V, 50 Hz
power consumption	75 W
stand-by power consumption	1.0 W
dimensions (W x H x D)	205 W x 103 H x 356 D mm
weight	5.3 kg
