8
Controls & Connectors
For detailed information, refer to the pages in parentheses.
1
Remote control sensor (7)
Receives control signals from the remote controller.
2
Standby indicator (16)
Lights up when the CR-505DAB is in Standby mode.
3
VOLUME control (19)
Adjusts the volume.
4
[ ] button (20)
Opens and closes the disc tray.
5
STANDBY/ON button (16)
Sets the CR-505DAB to On or Standby.
6
PHONES jack (19)
Used to connect a pair of stereo headphones.
7
INPUT selector button (19, 28)
Used to select sound sources: CD, DAB, FM, AM,
TAPE, MD or LINE.
8
MENU button (22-30)
Displays the Tuner menu.
Selects the play mode for CD or MP3.
9
DIRECT button (31)
Used to select “Tone Direct On” or “Tone Direct Off.”
0
BASS control (31)
Adjusts the Bass sound while the Tone Direct Off is
selected.
A
TREBLE control (31)
Adjusts the Treble sound while the Tone Direct Off is
selected.
B
[ ] (PRESET [ / ]) control (20, 23-30)
Turn this to select the track, and push to start playing.
You can also select the Preset while the FM or AM is
selected.
C
Stop [ ] & Play/Pause [ / ] buttons (20)
Used to stop, start, and pause playback.

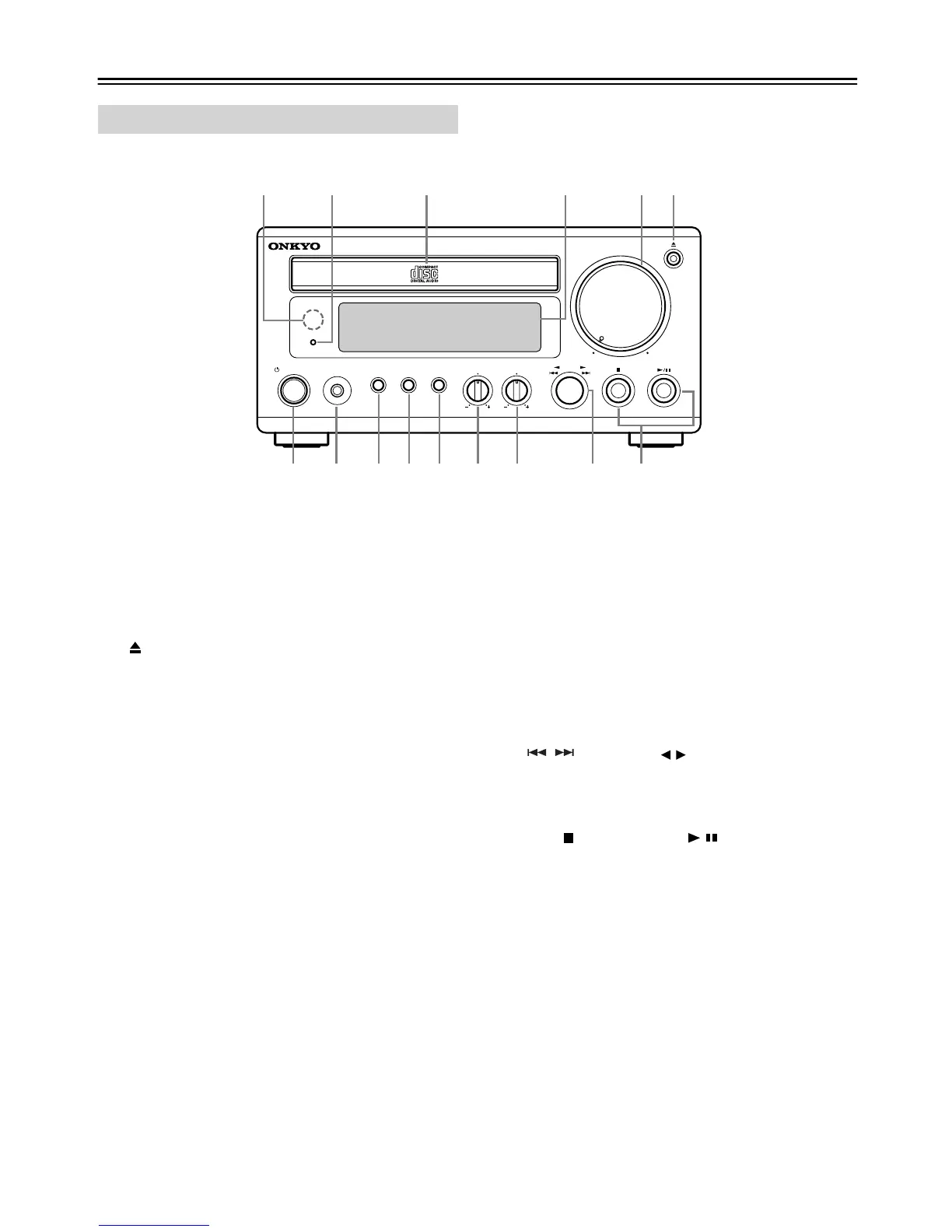

Front Panel
STANDBY
/
ON
INPUT
MENU
BASS
TREBLE
PUSH TO ENTER
PRESET
DIRECT
PHONES
VOLUME
MIN MAX
21 43
C6 0 A B5 7 8 9
Disc Tray
Display
/
To Next Page
