11

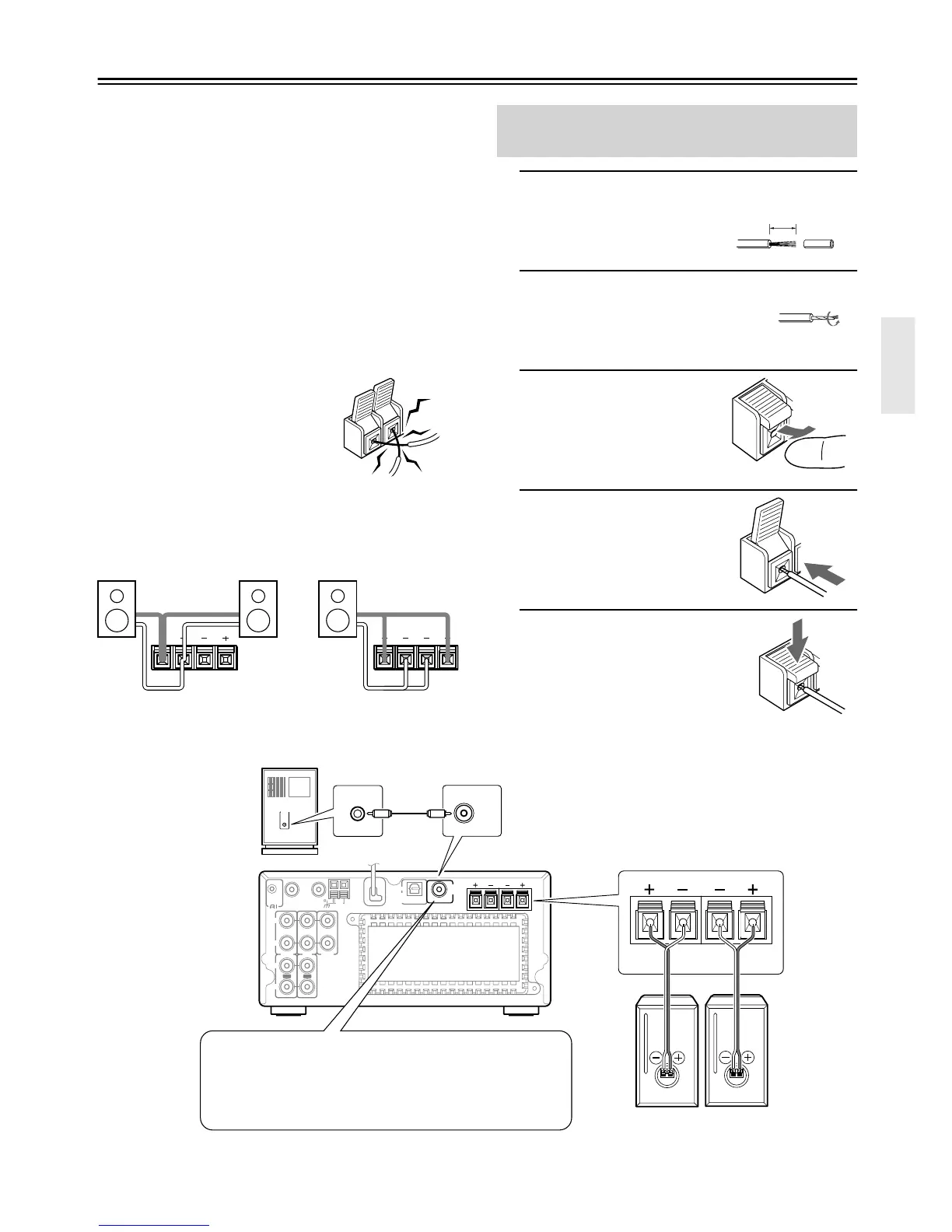

Connecting Your Speakers
Before you connect your speakers, read the following:
• Disconnect the power cord from the wall outlet.
• Read the instructions supplied with your speakers.
• Pay close attention to speaker wiring polarity. In other
words, connect positive (+) terminals only to positive (+)
terminals, and negative (–) terminals only to negative (–)
terminals. If you get them the wrong way around, the
sound will be out of phase and will sound odd.
• Only use speakers with an impedance of 4 ohms or
higher. If you use speakers with a lower impedance, and
use the amplifier at high volume levels for a long period
of time, the built-in protection circuit may be activated.
• Unnecessarily long or very thin speaker cables may affect
the sound quality and should be avoided.
• Be careful not to short the posi-
tive and negative connections.
Doing so may damage the CD
Receiver.
• Don’t connect more than one
cable to each speaker terminal.
Doing so may damage the CD
Receiver.
• If you want to connect a single speaker instead of a pair,
connect it to either the left or right speaker terminals, not
both.
1
Strip 10 mm from the
end of each cord.
2
Twist the stripped end
of the cord.
3
Push the lever up.
4
Insert the stripped end
of the cord.
5
Press down the lever.
The wire of the stripped
end of the cord should
appear slightly.
NO
RL
SPEAKERS
RL
SPEAKERS
NONO
Connecting the Speaker Cords to
the Speaker Connectors
10 mm (7/16“)
OUT OUT
SPEAKERS
RL
PRE OUT
OPTICAL
DIGITAL
OUT
SUB
WOOFER
IN IN IN
REMOTE
CONTROL
TAPE LINEMD
R
L
R
L
FM75DAB
ANTENNA
AM
SPEAKERS
RL
LINE INPUT
LINE
INPUT
SUB
WOOFER
PRE OUT
The SUBWOOFER PRE OUT should be connected to the
input on your powered subwoofer. If your subwoofer
doesn’t have an amp built-in, you’ll need to use an exter-
nal amp. See the manual supplied with your subwoofer for
more information.
Powered
subwoofer
Right
speaker
Left
speaker
To Next Page
