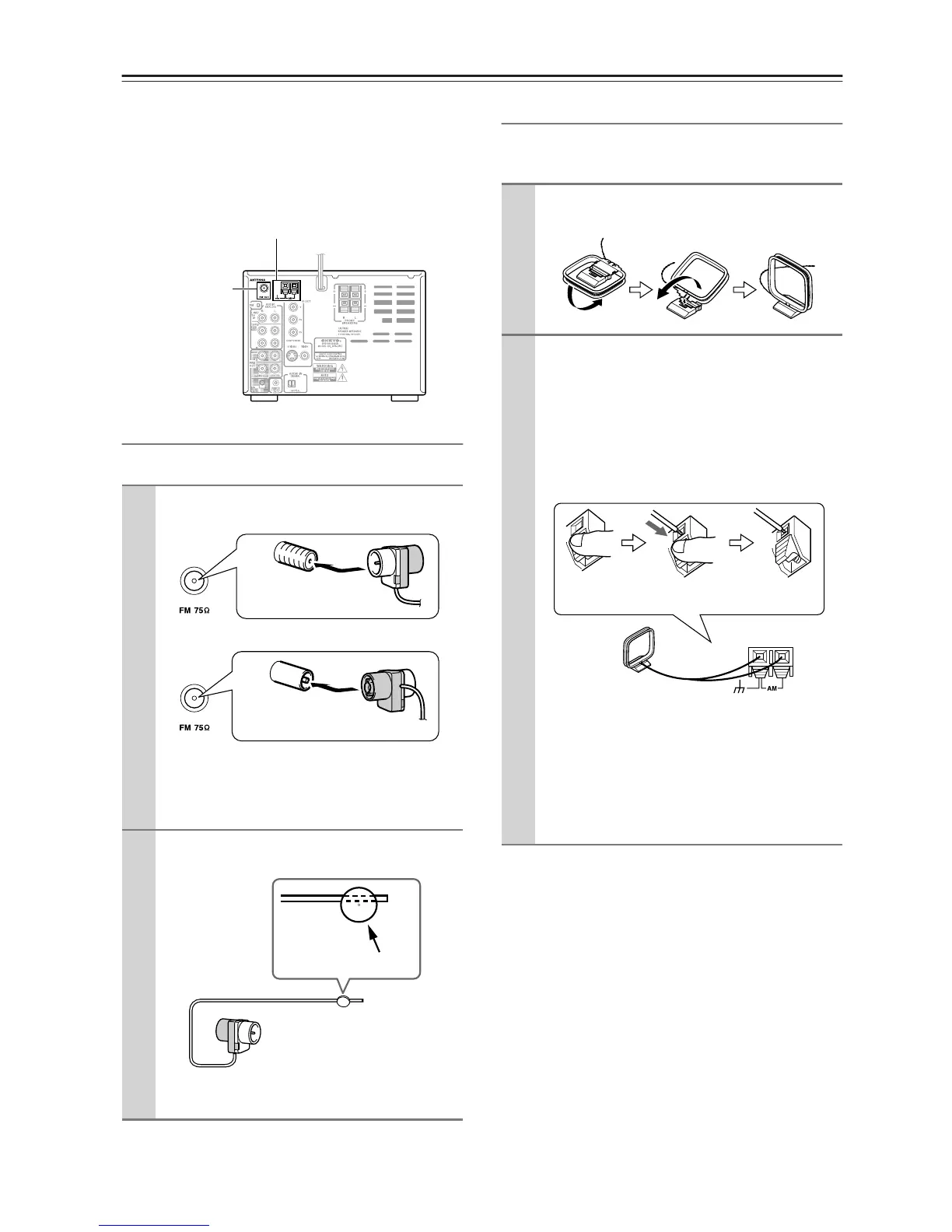

Connecting Antenna
This section explains how to connect the supplied indoor
FM antenna and AM loop antenna, and how to connect
commercially available outdoor FM and AM antennas.
The DVD receiver won’t pick up any radio signals with-
out any antenna connected, so you must connect the
antenna to use the tuner.
Connecting the Indoor FM Antenna
The supplied indoor FM antenna is for indoor use only.
If you cannot achieve good reception with the supplied
indoor FM antenna, try a commercially available out-
door FM antenna instead (see page 17).
Connecting the AM Loop Antenna
The supplied indoor AM loop antenna is for indoor use
only.
If you cannot achieve good reception with the supplied
indoor AM loop antenna, try using it with a commer-
cially available outdoor AM antenna (see page 17).
1
Attach the FM antenna, as shown.
■ North American Model
■ Other Models
Once your DVD receiver is ready for use, you’ll
need to tune into an FM radio station and adjust
the position of the FM antenna to achieve the best
possible reception.
2
Use thumbtacks or something similar to
fix the FM antenna into position.
Caution: Be careful that you don’t injure yourself
when using thumbtacks.
FM antenna
connector
AM antenna push terminals
Insert the plug fully
into the jack.
Insert the plug fully
into the jack.
Thumbtacks, etc.
1
Assemble the AM loop antenna, inserting
the tabs into the base, as shown.
2
Connect both wires of the AM loop
antenna to the AM push terminals, as
shown.
(The antenna’s wires are not polarity sensitive, so
they can be connected either way around.)
Make sure that the wires are attached securely and
that the push terminals are gripping the bare
wires, not the insulation.
Once your DVD receiver is ready for use, you’ll
need to tune into an AM radio station and adjust
the position of the AM antenna to achieve the best
possible reception.
Keep the antenna as far away as possible from
your DVD receiver, TV, speaker cables, and
power cords.
Push Insert wire Release

Onkyo DR-UN7 Specifications

Power

power supply	AC 120 V, 60 Hz
power consumption	115 W
stand-by power consumption	0.2 W

Operating Environment

operating temperature	5 ˚C–35 ˚C
operating humidity	5 %–85 %
tuning frequency range	87.5 MHz–107.9 MHz

Audio Specifications

signal to noise ratio	100 dB (LINE, IHF-A)
frequency response	10 Hz–100 kHz/±3 dB (LINE)
total harmonic distortion	5 % (Power Rated)

Weight and Dimensions

dimensions	205 W x 147 H x 353 D mm
weight	5.4 kg
