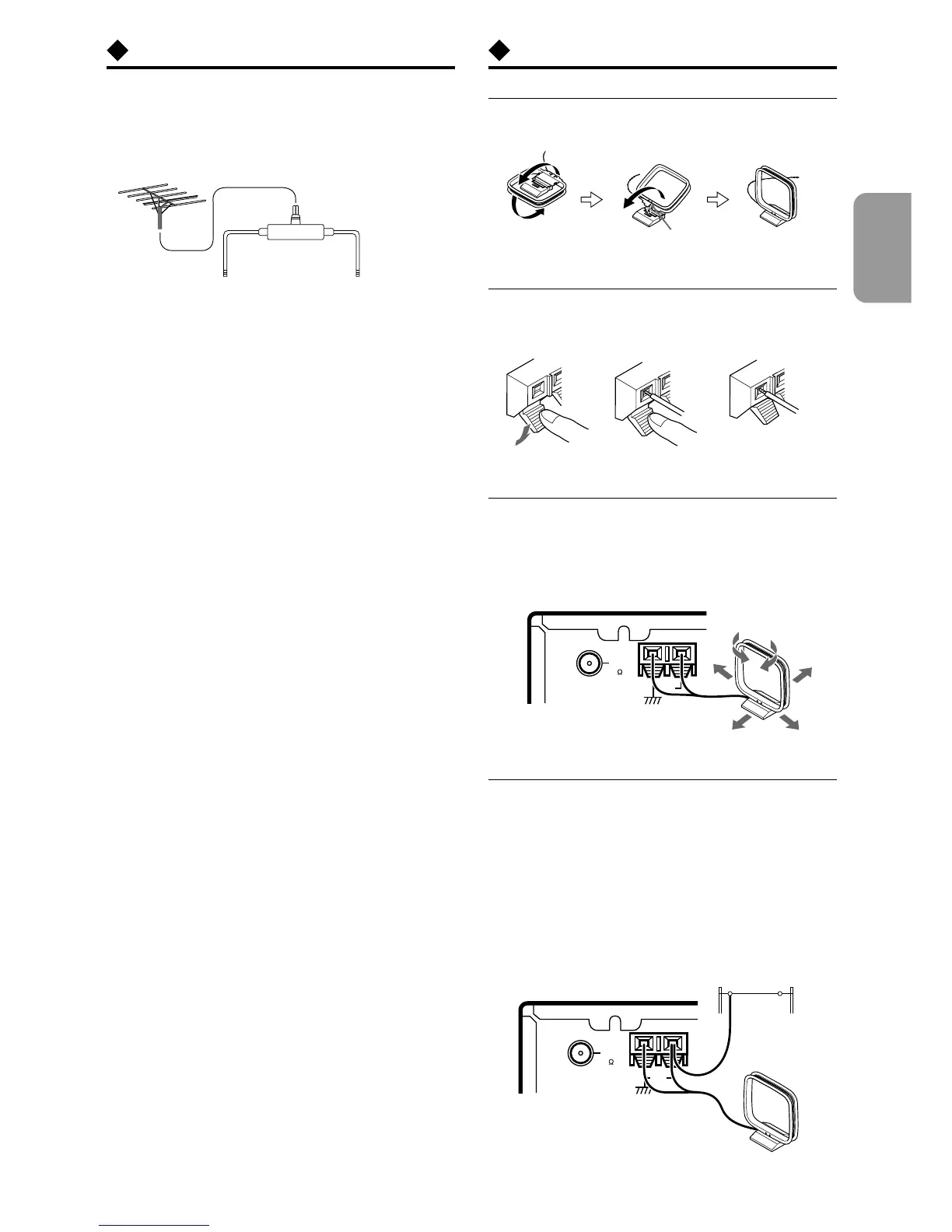

Connecting the AM antenna
Assembling the AM loop antenna
Assemble the loop antenna as shown in the following
illustration.
Connecting the AM antenna cable
Connecting the AM loop antenna
The AM loop antenna is for indoor use only. Set it in
the direction and position in which you receive the
clearest sound. Locate it as far as possible away from
this unit, televisions, speaker cables, and power
cords.
Connecting an AM outdoor antenna
When reception is not satisfactory with the supplied
AM loop antenna alone, an outdoor antenna is
recommended.
The outdoor antenna will be more effective if it is
stretched horizontally above or outside a window.
• Do not remove the AM loop antenna.
• To avoid the risk of lightning and electrical shock,
grounding is necessary. Follow item 19 of the
“Important Safeguards” on page 3 when you install
the outdoor antenna.
Directional Iinkage
Do not use the same antenna for both FM and TV (or
VCR) reception since these signals may interfere with
each other. If you must use a common FM/TV (or
VCR) antenna, use a directional linkage type splitter.
Insert into the hole.
Directional Iinkage
type splitter
To TV (or VCR)
To FR-V77
(Continued on the next page)
FM
75
ANTENNA
AM
FM
75
ANTENNA
AM
outdoor antenna
1. Press down
the lever.
2. Insert the
wire into
the hole.
3. Release the
lever to lock the
wire in place.

Onkyo FR-V77 Specifications

Power

power supply	AC 220-230 V, 50/60 Hz
power consumption	63 W (220-230 V, 50/60 Hz)
power consumption (standby)	7 W
power consumption (energy save)	1.5 W

Amplifier Specifications

power output	2 × 26 W at 4 Ω EIAJ
total harmonic distortion	0.4 % at rated power
damping factor	25 at 8 Ω

CD Player

frequency response	10 Hz to 20 kHz (± 3 dB)
wow and flutter	Below threshold of measurability
signal readout system	Optical non-contact

MD Recorder

recording time	320 minutes maximum (at LP4 mode)
frequency response	10 Hz to 20 kHz (± 3 dB)
signal readout system	Optical non-contact

Tuner Specifications

tuning range	FM: 87.50 to 108.00 MHz
usable sensitivity	FM Mono: 11.2 dBf, 1.0 µV (75 Ω IHF)
signal to noise ratio	FM Mono : 73 dB IHF

Weight and Dimensions

dimensions	205 × 154 × 356 mm
weight	5.5 kg
