Onkyo FR-V77 User Manual

8
Notes

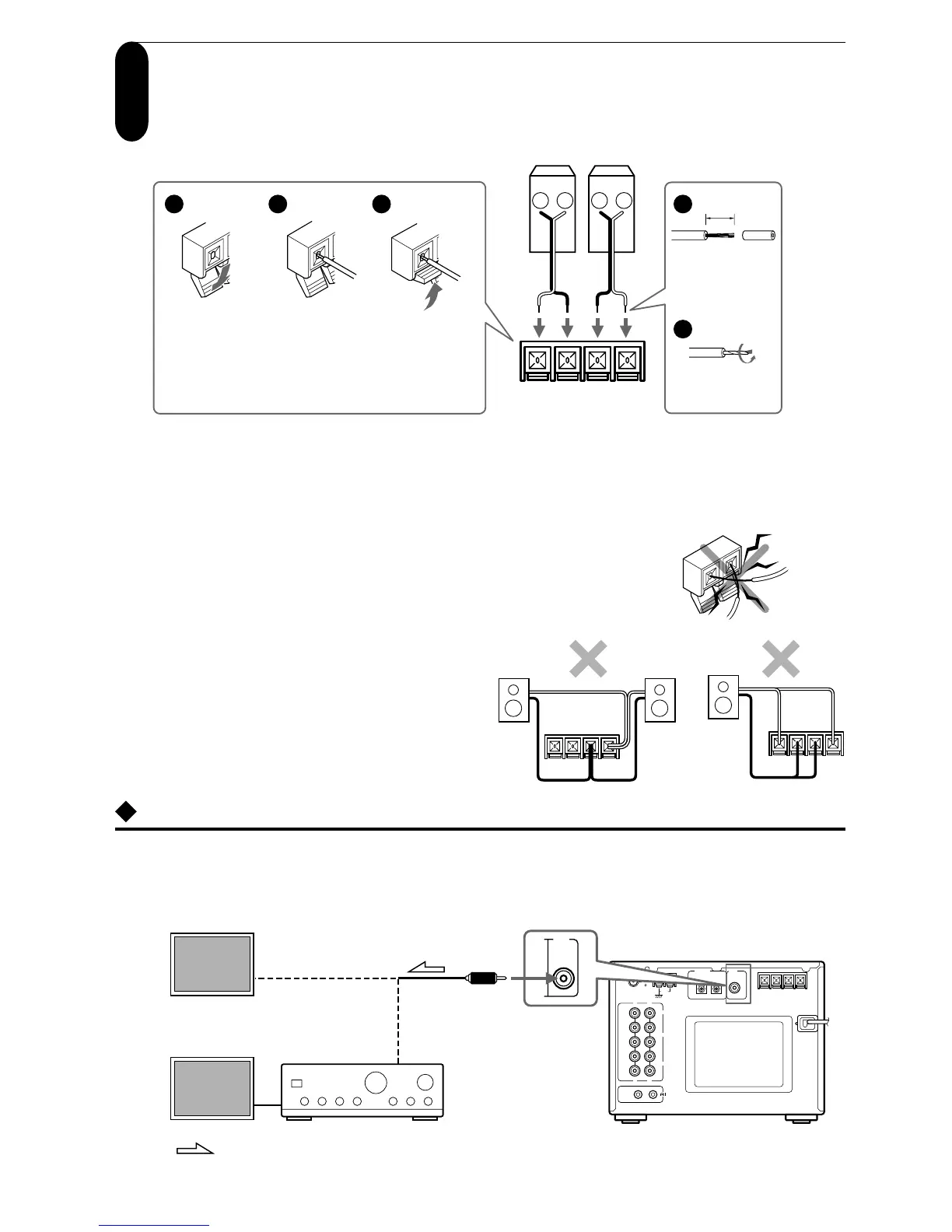

• Connecting the left and right speakers reversely or with wrong polarities can cause unnatural or distorted sound.
• The load impedance of each speaker must be between 4 and 16 ohms. Connecting speakers with less than 4 ohms
impedance could damage the amplifier.
• To prevent damage to circuits, never short-circuit the positive (+) and negative (–) speaker wires.
• Do not connect the speaker cord to the L and R connectors
at the same time (e.g. 1). Do not connect more than two
speaker connectors to the same speaker (e.g. 2).
(e.g. 1) (e.g. 2)
Connecting a subwoofer
The FR-V77 has a SUBWOOFER PRE OUT jack. Connect an active subwoofer (a subwoofer that contains an
amplifier), or connect an amplifier to the FR-V77, then connect a non-active subwoofer to the amplifier.
Antenna (aerial) and speakers (continued)
NO!
–
+
–
+
1 1
2
2 3
SPEAKERS
+–+–
LR
15mm
Push down
the lever.
Insert the tip
of the
speaker
cable.
Right
speaker
Left
speaker
Return the lever
to the original
position. Make
sure that the
core wire is
slightly exposed.
Peel the insulation
to expose about
15mm of the core
wire.
Twist the core
wire.
SPEAKERS
+–+–
LR
NO!
SPEAKERS
+–+–
LR
NO!
SPEAKERS
+–+–
FM
75
OUT IN
REMOTE
CONTROL
PRE OUT
ANTENNA
OPTICAL
OUT
(
REC
)
IN
(
PLAY
)
OUT
(
REC
)
IN
(
PLAY
)
LR
AM
TAPE
LR
LR
CDR
DIGITAL
SUB
WOOFER
LINE
CAUTION:SPEAKER IMPEDANCE
4 OHMS MIN./SPEAKER
PRE OUT
SUB
WOOFER
Active subwoofer
(with a built-in amplifier)
FR-V77
Subwoofer
(without a built-in amplifier)
: Signal flow
Amplifier

Onkyo FR-V77 Specifications

Power

power supply	AC 220-230 V, 50/60 Hz
power consumption	63 W (220-230 V, 50/60 Hz)
power consumption (standby)	7 W
power consumption (energy save)	1.5 W

Amplifier Specifications

power output	2 × 26 W at 4 Ω EIAJ
total harmonic distortion	0.4 % at rated power
damping factor	25 at 8 Ω

CD Player

frequency response	10 Hz to 20 kHz (± 3 dB)
wow and flutter	Below threshold of measurability
signal readout system	Optical non-contact

MD Recorder

recording time	320 minutes maximum (at LP4 mode)
frequency response	10 Hz to 20 kHz (± 3 dB)
signal readout system	Optical non-contact

Tuner Specifications

tuning range	FM: 87.50 to 108.00 MHz
usable sensitivity	FM Mono: 11.2 dBf, 1.0 µV (75 Ω IHF)
signal to noise ratio	FM Mono : 73 dB IHF

Weight and Dimensions

dimensions	205 × 154 × 356 mm
weight	5.5 kg
