Onkyo HT-R508 User Manual

10

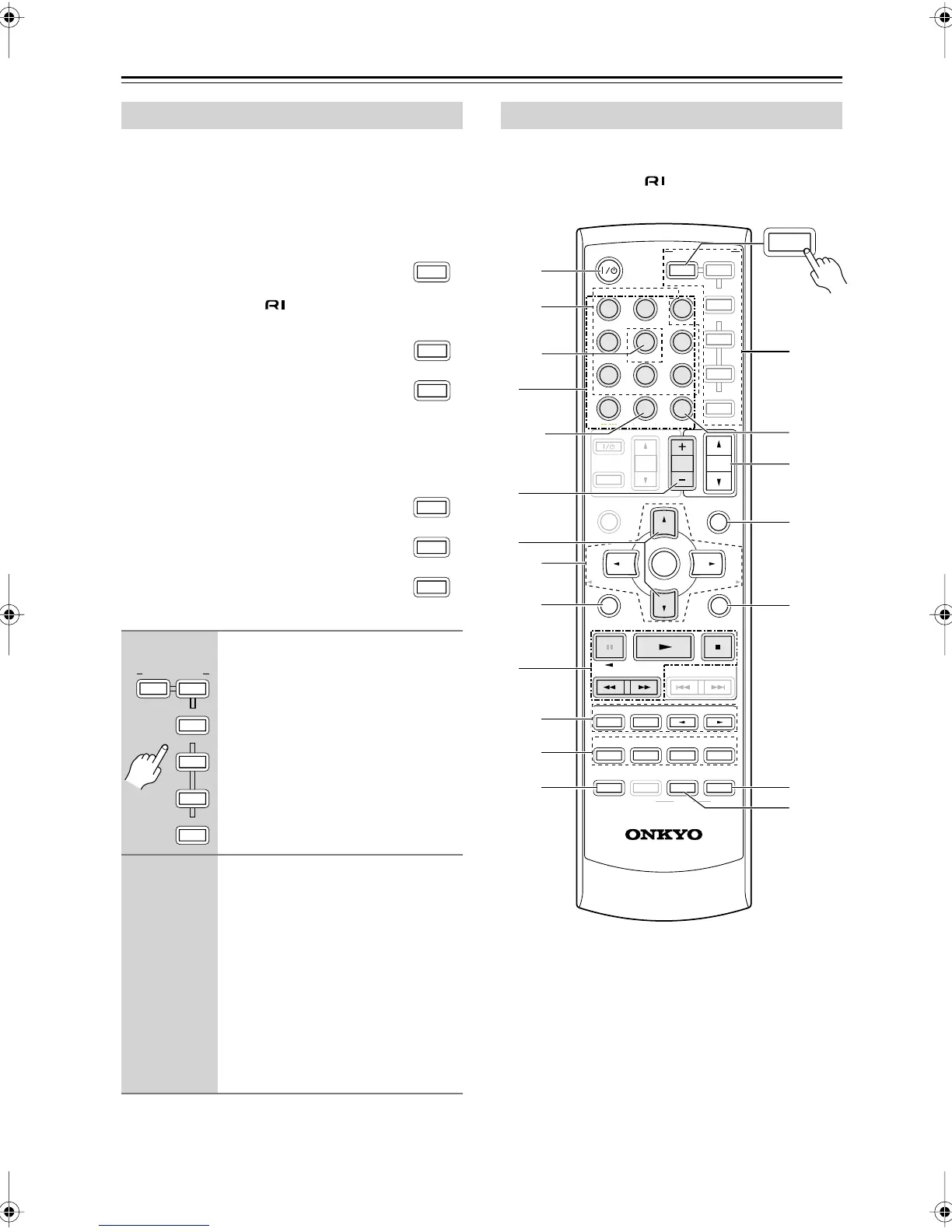

Remote Controller
Including the AV receiver, the remote controller can be
used to control up to seven different components. The
remote controller has a specific operating mode for use
with each type of component. Modes are selected by
using the six REMOTE MODE buttons.
■ RECEIVER/TAPE Mode
In RECEIVER/TAPE mode, you can control
the AV receiver and an Onkyo cassette
recorder connected via .
■ DVD and CD/MD/CDR/DOCK
Modes
With these modes, you can control a DVD
player and CD player, MD recorder, CDR,
or RI dock. By entering the appropriate
remote control code, you can control Onkyo
components or components made by other manufactur-
ers (see page 58).
■ TV, VCR and SAT/CABLE Modes
With these modes, you can control a TV,
VCR, and satellite or cable receiver. You
must enter the appropriate remote control
code first (see page 58).
Note:
Some of the remote controller operations described in
this manual may not work as expected with other com-
ponents.
RECEIVER/TAPE mode is used to control the AV
receiver. It can also be used to control an Onkyo cassette
recorder connected via .
Buttons
1
,
2
,
3
, and
4
are used when the TUNER
or TAPE input is selected.
Using the Remote Controller
1
Press one of the REMOTE MODE
buttons to select a mode.
2
Use the buttons supported by
that mode to control the compo-
nent.
RECEIVER/TAPE mode:
see right column
DVD mode:
see page 12
CD/MD/CDR/DOCK mode:
see page 13
TV, VCR, SAT/CABLE modes:
see page 60
TAPE/AMP
RECEIVER
M D/CDR
DOCK
DVD
C
D
CABLE
SAT
VCR
TV
TAPE/AMP
RECEIVER
M D/CDR
DOCK
CABLE
REMOTE MODE
SAT
VCR
TV
DVD
C
D
RECEIVER/TAPE Mode
MUTING
PREVIOUS
MENU
GUIDE
TOP MENU
SETUP RETURN
PLAYLIST/CAT PLAYLIST/CAT
RANDOM SUBTITLE
PLAY MODE
AUDIO REPEAT
RC
-
681M
--
/
---
TAPE/AMP
M
D/CDR
DOCK
CABLE
STANDBY/ON
DIMMER
ENT D TUN
SLEEP
10 11 12
INPUT SELECTOR
HDDDVDVCR
REMOTE MODE
VCR/DVR
AUX
CBL/SAT
C DTAPE TUNER
DVD
MULTI CH
LISTENING MODE
TV
DISPLAY
TEST TONE CH SEL
SURROUND STEREO
CINE FLTR
LEVEL
+
LEVEL
-
L NIGHT
VOL
VOL
SAT
VCR
TV
DVD
RECEIVER
C D
INPUT
+
10
0
CLR
123
456
789
ENTER
CH
DISC
ALBUM
TAPE/AMP
1
4
7
9
1
8
5
J
N
6
L
M
O
P
RECEIVER
K
2
2
4
3
3
HT-R508En.book Page 10 Wednesday, March 14, 2007 10:12 AM

Onkyo HT-R508 Specifications

Amplifier Section

rated output power (FTC)	110 watts
rated output power (IEC)	5 ch × 130 W
maximum output power (JEITA)	5 ch × 160 W
dynamic power (3Ω, 1 ch driven)	210 W
dynamic power (4Ω, 1 ch driven)	190 W
dynamic power (8Ω, 1 ch driven)	130 W
total harmonic distortion (THD)	0.08%
damping factor	60
input sensitivity and impedance	200 mV/ 47 kΩ
output level and impedance	200 mV/ 470 Ω
frequency response	5 Hz–100 kHz
tone control (bass)	±10 dB, 50 Hz
tone control (treble)	±10 dB, 20 kHz
signal to noise ratio	100 dB
speaker impedance	8Ω–16Ω

Video Section

input sensitivity/output level and impedance (component and s-video y)	1 Vp-p /75Ω
input sensitivity/output level and impedance (component pb/cb, pr/cr)	0.7 Vp-p /75Ω
input sensitivity/output level and impedance (s-video c)	0.28 Vp-p /75Ω
input sensitivity/output level and impedance (composite)	1 Vp-p /75Ω
component video frequency response	5 Hz – 50 MHz

Tuner Section

fm tuning frequency range	87.5 MHz– 108.0 MHz
am tuning frequency range	522 kHz–1611 kHz
radio presets	40

General

power supply	AC 230 V, 50 Hz
power consumption	560 W
standby power consumption	0.3 W
dimensions (W × H × D)	435 × 150 × 377 mm
weight	10.2 kg
