Onkyo HT-R508 User Manual

46

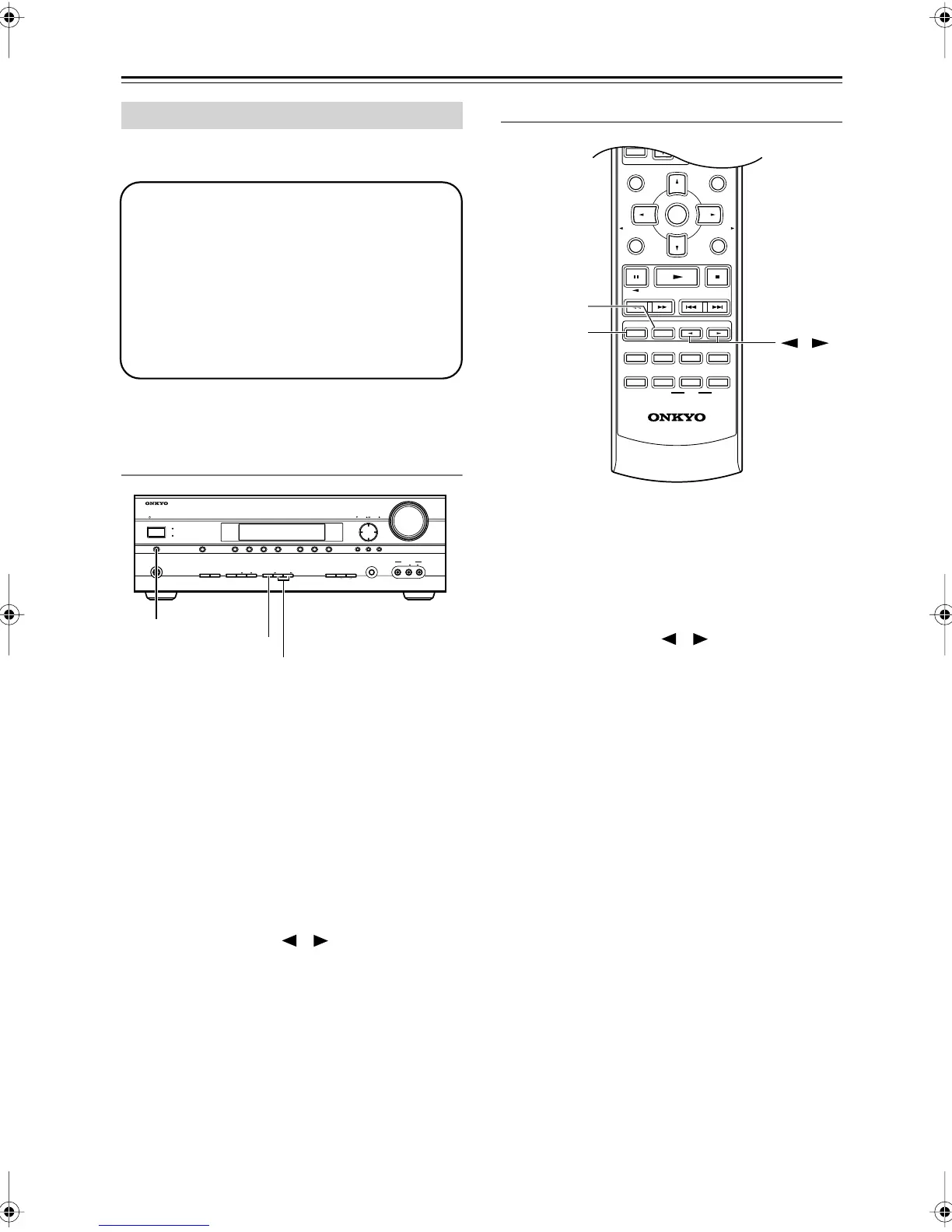

Using the Listening Modes
For a description of each listening mode, see “About the
Listening Modes” on page 47.
Selecting on the AV Receiver
■ [PURE AUDIO] button
This button selects the Pure Audio listening mode.
When this mode is selected, the AV receiver outputs
no video signals and its display is turned off.
Pressing this button again will select the previous lis-
tening mode.
Video received at the HDMI IN is passed through to
the HDMI OUT even if the Pure Audio listening
mode is selected.
■ [STEREO] button
This button selects the Stereo listening mode.
■ LISTENING MODE [ ]/[ ] buttons
Pressing these buttons repeatedly cycles through all
of the listening modes that can be used with the cur-
rent input source.
Selecting with the Remote Controller
■ [STEREO] button
This button selects the Stereo listening mode.
■ [SURROUND] button
This button selects the Dolby Digital and DTS listen-
ing modes.
■ LISTENING MODE [ ]/[ ] buttons
Pressing these buttons repeatedly cycles through all
of the listening modes that can be used with the cur-
rent input source.
Selecting Listening Modes
• The Dolby Digital and DTS listening modes
can only be selected if your DVD player is
connected to the AV receiver with a digital
audio connection (coaxial or optical).
• Listening mode availability depends on the
format of the current input signal.
• While a pair of headphones is connected,
you can select only the Pure Audio, Mono,
Direct, or Stereo listening mode.
MASTER VOLUME
VIDEO
STANDBY
PURE AUDIO
TONE
DISPLAY STEREO RT/PTY/TP MEMORY DIGITAL INPUT TUNING MODE
TUNERTAPE
AUXCBL/SATVCR/DVR
DVDMULTI CHPURE AUDIO C D
SETUP ENTER
SETUP MIC
RETURN
CLEAR
LISTENING MODE
AUDIOLR
AUX INPUT
STANDBY/ON
PHONES
TUNING
PRESET
PURE AUDIO
STEREO
LISTENING MODE
MUTING
PREVIOUS
MENU
GUIDE
TOP MENU
SETUP RETURN
PLAYLIST/CAT PLAYLIST/CAT
RANDOM SUBTITLE
PLAY MODE
AUDIO REPEAT
RC
-
681M
HDDDVDVCR
LISTENING MODE
TV
DISPLAY
TEST TONE CH SEL
SURROUND STEREO
CINE FLTR
LEVEL
+
LEVEL
-
L NIGHT
VOL
VOL
INPUT
ENTER
CH
DISC
ALBUM
,
STEREO
SURROUND
HT-R508En.book Page 46 Wednesday, March 14, 2007 10:12 AM

Onkyo HT-R508 Specifications

Amplifier Section

rated output power (FTC)	110 watts
rated output power (IEC)	5 ch × 130 W
maximum output power (JEITA)	5 ch × 160 W
dynamic power (3Ω, 1 ch driven)	210 W
dynamic power (4Ω, 1 ch driven)	190 W
dynamic power (8Ω, 1 ch driven)	130 W
total harmonic distortion (THD)	0.08%
damping factor	60
input sensitivity and impedance	200 mV/ 47 kΩ
output level and impedance	200 mV/ 470 Ω
frequency response	5 Hz–100 kHz
tone control (bass)	±10 dB, 50 Hz
tone control (treble)	±10 dB, 20 kHz
signal to noise ratio	100 dB
speaker impedance	8Ω–16Ω

Video Section

input sensitivity/output level and impedance (component and s-video y)	1 Vp-p /75Ω
input sensitivity/output level and impedance (component pb/cb, pr/cr)	0.7 Vp-p /75Ω
input sensitivity/output level and impedance (s-video c)	0.28 Vp-p /75Ω
input sensitivity/output level and impedance (composite)	1 Vp-p /75Ω
component video frequency response	5 Hz – 50 MHz

Tuner Section

fm tuning frequency range	87.5 MHz– 108.0 MHz
am tuning frequency range	522 kHz–1611 kHz
radio presets	40

General

power supply	AC 230 V, 50 Hz
power consumption	560 W
standby power consumption	0.3 W
dimensions (W × H × D)	435 × 150 × 377 mm
weight	10.2 kg
