Onkyo HT-R508 User Manual

21
Connecting Your Components —Continued
By connecting both the audio and video outputs of your DVD player and other AV components to the AV receiver, you
can switch the audio and video signals simultaneously simply by changing the input source on the AV receiver.
The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format
you choose will depend on the formats supported by your other components. Use the following sections as a guide.
For video components, such as a DVD player, you must make an audio connection and a video connection.
Audio Connection Formats
When choosing a connection format, bear in mind that the AV receiver doesn’t convert between formats.
Video Connection Formats
Video equipment can be connected by using any one of the following video connection formats: composite video,
S-Video, or component video, the latter offering the best picture quality.
When choosing a connection format, bear in mind that the AV receiver doesn’t convert between formats, so only outputs
of the same format as the input will output the signal.

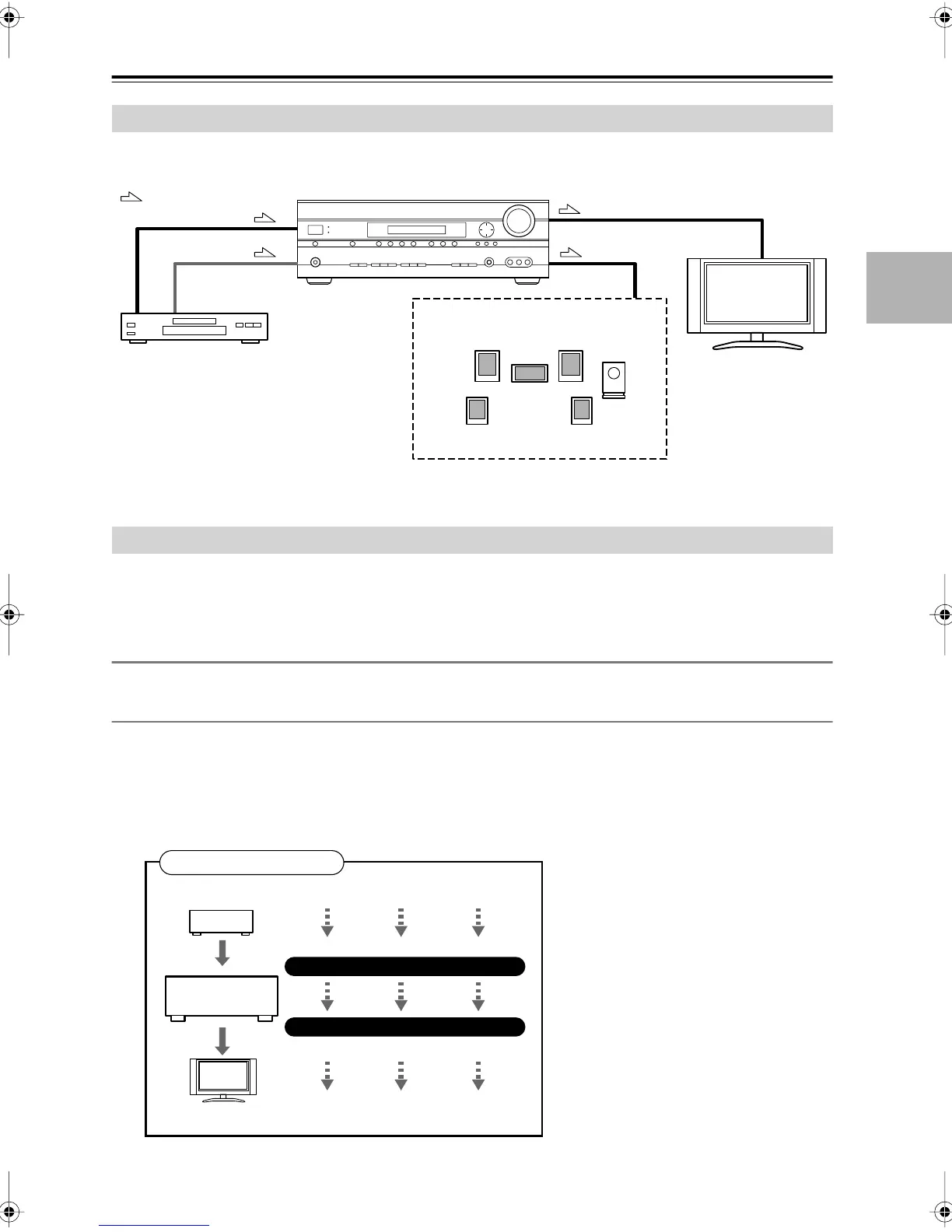

Connecting Audio and Video Signals to the AV Receiver
Which Connections Should I Use?
: Signal Flow
Video
Video
Audio
Speakers (see page 17 for hookup
details)
DVD player, etc.
TV, projector,
etc.
Audio
IN
MONITOR OUT
DVD player, etc.
AV Receiver
TV, projector, etc.
Composite S-Video Component
Composite S-Video Component
Video Signal Flow Chart
HT-R508En.book Page 21 Wednesday, March 14, 2007 10:12 AM

Onkyo HT-R508 Specifications

Amplifier Section

rated output power (FTC)	110 watts
rated output power (IEC)	5 ch × 130 W
maximum output power (JEITA)	5 ch × 160 W
dynamic power (3Ω, 1 ch driven)	210 W
dynamic power (4Ω, 1 ch driven)	190 W
dynamic power (8Ω, 1 ch driven)	130 W
total harmonic distortion (THD)	0.08%
damping factor	60
input sensitivity and impedance	200 mV/ 47 kΩ
output level and impedance	200 mV/ 470 Ω
frequency response	5 Hz–100 kHz
tone control (bass)	±10 dB, 50 Hz
tone control (treble)	±10 dB, 20 kHz
signal to noise ratio	100 dB
speaker impedance	8Ω–16Ω

Video Section

input sensitivity/output level and impedance (component and s-video y)	1 Vp-p /75Ω
input sensitivity/output level and impedance (component pb/cb, pr/cr)	0.7 Vp-p /75Ω
input sensitivity/output level and impedance (s-video c)	0.28 Vp-p /75Ω
input sensitivity/output level and impedance (composite)	1 Vp-p /75Ω
component video frequency response	5 Hz – 50 MHz

Tuner Section

fm tuning frequency range	87.5 MHz– 108.0 MHz
am tuning frequency range	522 kHz–1611 kHz
radio presets	40

General

power supply	AC 230 V, 50 Hz
power consumption	560 W
standby power consumption	0.3 W
dimensions (W × H × D)	435 × 150 × 377 mm
weight	10.2 kg
