Onkyo HT-R508 User Manual

37

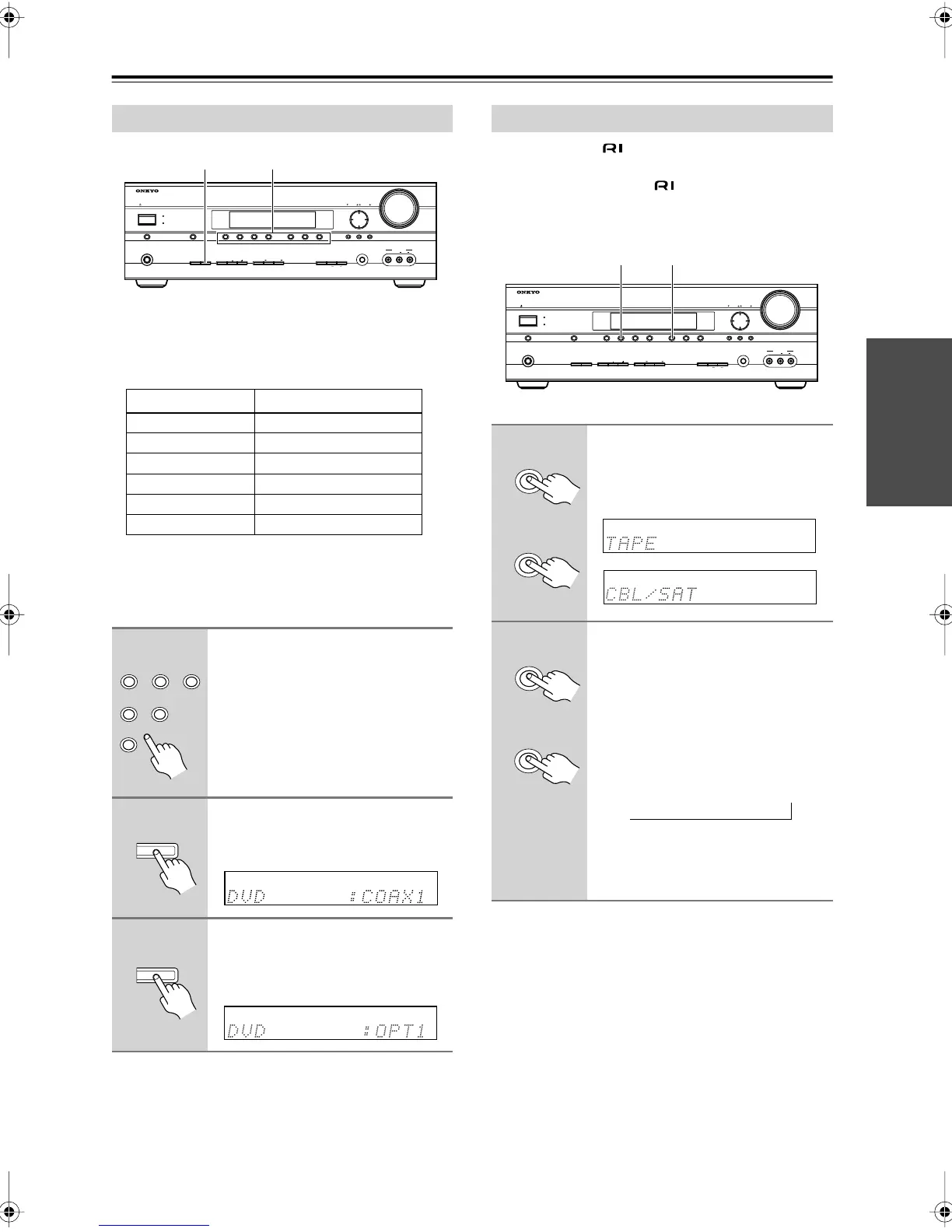

First Time Setup —Continued
To enjoy Dolby Digital and DTS, you must connect your
DVD player to the AV receiver digitally (coaxial or opti-
cal).
These are the default digital audio input assignments.
You can change the digital audio input assignments if
necessary. For example, if you connect your DVD player
to the OPTICAL 1 DIGITAL IN (OPT1), you must
assign that input to the DVD input selector, as follows.
Note:
Make sure that components connected digitally are con-
figured to output digital audio. Refer to the relevant man-
uals.
If you connect an -capable Onkyo MiniDisc
recorder, CD recorder, or RI Dock to the TAPE IN/OUT
or CBL/SAT IN jacks, for to work properly, you
must change this setting.
This setting can only be changed on the AV receiver.
Note:
DOCK can be selected for the TAPE input selector or
CBL/SAT input selector, but not both at the same time.
Digital Audio Input Setup
Input selector
Default assignment
DVD COAX 1
VCR/DVR OPT 1
CBL/SAT COAX 2
TAPE - - - -
CD OPT 2
AUX - - - -
1
Press the input selector button
for the input selector that you
want to assign.
(Digital inputs cannot be assigned to
the TUNER input selector.)
2
Press the [DIGITAL INPUT]
button.
The current assignment appears.
3
Press the [DIGITAL INPUT] but-
ton repeatedly to select COAX1,
COAX2, OPT1, OPT2, or “– – – –”
(analog).
MASTER VOLUME
VIDEO
STANDBY
PURE AUDIO
TONE
DISPLAY STEREO RT/PTY/TP MEMORY DIGITAL INPUT TUNING MODE
TUNERTAPE
AUXCBL/SATVCR/DVR
DVDMULTI CHPURE AUDIO C D
SETUP ENTER
SETUP MIC
RETURN
CLEAR
LISTENING MODE
AUDIOLR
AUX INPUT
STANDBY/ON
PHONES
TUNING
PRESET
12, 3
TAPE
AUX
CBL/SATVCR/DVR
DVD
C
D
DIGITAL INPUT
DIGITAL INPUT
Changing the Input Display
1
Press the [TAPE] or [CBL/SAT]
input selector button so that
“TAPE” or “CBL/SAT” appears on
the display.
2
Press and hold down the [TAPE]
or [CBL/SAT] input selector but-
ton (about 2 seconds) to change
the setting.
Repeat this step to select MD, CDR, or
DOCK.
For the TAPE input selector, the setting
changes in this order:
TAPE
→
MD
→
CDR
→
DOCK
For the CBL/SAT input selector, the
setting changes in this order:
CBL/SAT
↔
DOCK
MASTER VOLUME
VIDEO
STANDBY
PURE AUDIO
TONE
DISPLAY STEREO RT/PTY/TP MEMORY DIGITAL INPUT TUNING MODE
TUNERTAPE
AUXCBL/SATVCR/DVR
DVDMULTI CHPURE AUDIO C D
SETUP ENTER
SETUP MIC
RETURN
CLEAR
LISTENING MODE
AUDIOLR
AUX INPUT
STANDBY/ON
PHONES
TUNING
PRESET
1, 21, 2
TAPE
CBL/SAT
or
TAPE
CBL/SAT
or
→
HT-R508En.book Page 37 Wednesday, March 14, 2007 10:12 AM

Onkyo HT-R508 Specifications

Amplifier Section

rated output power (FTC)	110 watts
rated output power (IEC)	5 ch × 130 W
maximum output power (JEITA)	5 ch × 160 W
dynamic power (3Ω, 1 ch driven)	210 W
dynamic power (4Ω, 1 ch driven)	190 W
dynamic power (8Ω, 1 ch driven)	130 W
total harmonic distortion (THD)	0.08%
damping factor	60
input sensitivity and impedance	200 mV/ 47 kΩ
output level and impedance	200 mV/ 470 Ω
frequency response	5 Hz–100 kHz
tone control (bass)	±10 dB, 50 Hz
tone control (treble)	±10 dB, 20 kHz
signal to noise ratio	100 dB
speaker impedance	8Ω–16Ω

Video Section

input sensitivity/output level and impedance (component and s-video y)	1 Vp-p /75Ω
input sensitivity/output level and impedance (component pb/cb, pr/cr)	0.7 Vp-p /75Ω
input sensitivity/output level and impedance (s-video c)	0.28 Vp-p /75Ω
input sensitivity/output level and impedance (composite)	1 Vp-p /75Ω
component video frequency response	5 Hz – 50 MHz

Tuner Section

fm tuning frequency range	87.5 MHz– 108.0 MHz
am tuning frequency range	522 kHz–1611 kHz
radio presets	40

General

power supply	AC 230 V, 50 Hz
power consumption	560 W
standby power consumption	0.3 W
dimensions (W × H × D)	435 × 150 × 377 mm
weight	10.2 kg
