Onkyo HT-R508 User Manual

58
Controlling Other Components
You can use the AV receiver’s remote controller
(RC-681M) to control your other AV components,
including those made by other manufacturers. This sec-
tion explains how to enter the necessary remote control
code for the component that you want to control (e.g.,
DVD player, TV, or VCR).
To control another component, you must first enter the
appropriate remote control code to a REMOTE MODE
button. You’ll need to enter a code for each component
that you want to control.
Notes:
•A remote control code cannot be entered for the
[RECEIVER] REMOTE MODE button.
• The remote control codes provided are correct at the
time of printing, but are subject to change.

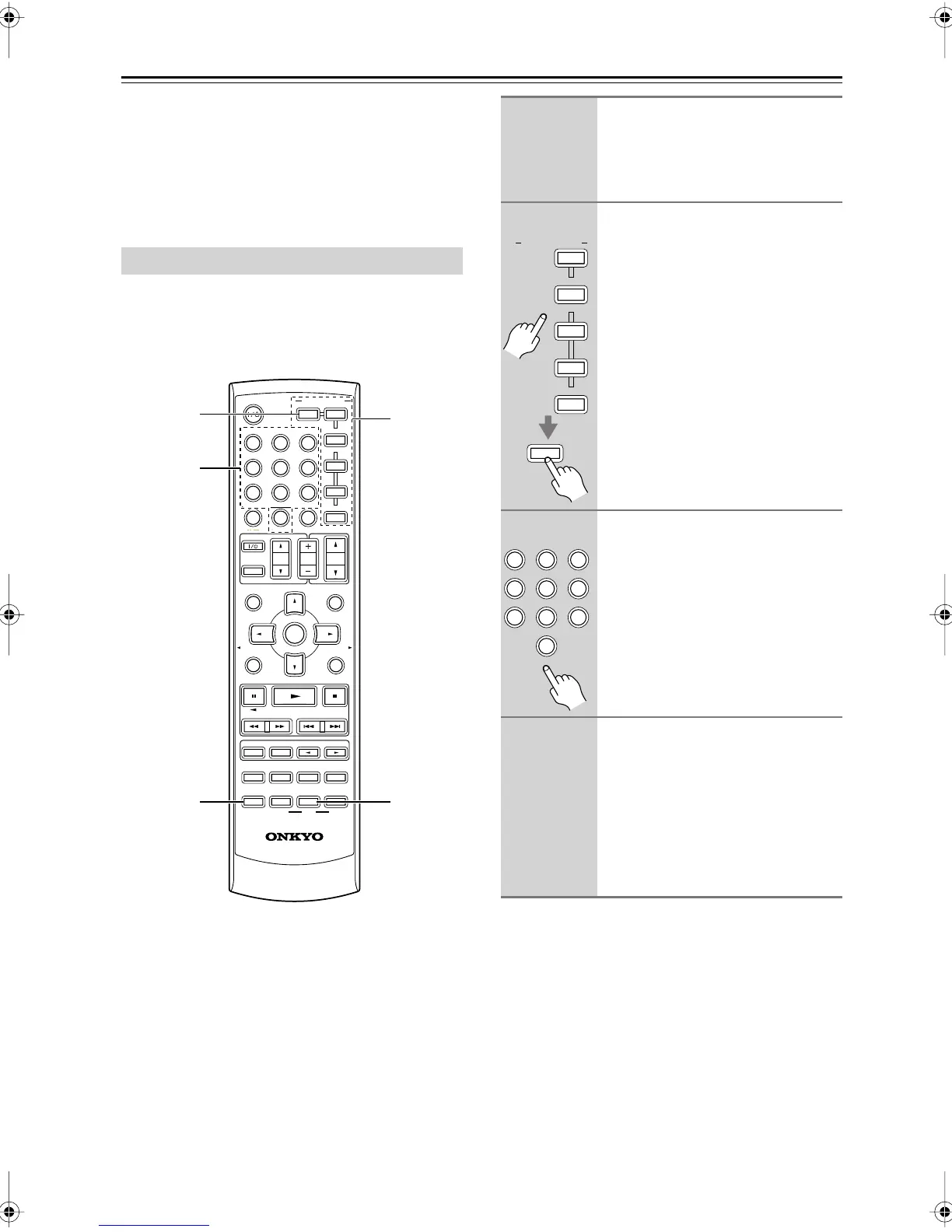

Entering Remote Control Codes
MUTING
PREVIOUS
MENU
GUIDE
TOP MENU
SETUP RETURN
PLAYLIST/CAT PLAYLIST/CAT
RANDOM SUBTITLE
PLAY MODE
AUDIO REPEAT
RC
-
681M
--
/
---
TAPE/AMP
M
D/CDR
DOCK
CABLE
STANDBY/ON
DIMMER
ENT D TUN
SLEEP
10 11 12
INPUT SELECTOR
HDDDVDVCR
REMOTE MODE
V CR/DVR
AUX
CBL/SAT
C DTAPE TUNER
DVD
MULTI CH
LISTENING MODE
TV
DISPLAY
TEST TONE CH SEL
SURROUND STEREO
CINE FLTR
LEVEL
+
LEVEL
-
L NIGHT
VOL
VOL
SAT
VCR
TV
DVD
RECEIVER
C D
INPUT
+
10
0
CLR
123
456
789
ENTER
CH
DISC
ALBUM
REMOTE
MODE
L NIGHT
DISPLAY
RECEIVER
Number
buttons
1
Look up the appropriate remote
control code in the separate
Remote Control Codes list.
The codes are organized by category
(e.g., DVD player, TV, etc.).
2
While holding down the REMOTE
MODE button that you want to
set, press the [DISPLAY] button
for 3 seconds.
The REMOTE MODE button lights up.
3
Within 30 seconds, use the num-
ber buttons to enter the 4-digit
remote control code.
The REMOTE MODE button flashes
twice.
4
Press the REMOTE MODE button
again to select the remote con-
troller mode, point the remote
controller at the component, and
check the operation.
If the remote controller doesn’t work as
expected, and several remote codes are
listed, try each one in turn and use the
one that works best.
M D/CDR
DOCK
CABLE
REMOTE MODE
SAT
VCR
TV
DVD
C
D
DISPLAY
DIMMER
ENT
11
VCR/DVR
AUX
CBL/SAT
C DTAPE TUNER
DVD
MULTI CH
0
123
456
789
HT-R508En.book Page 58 Wednesday, March 14, 2007 10:12 AM

Onkyo HT-R508 Specifications

Amplifier Section

rated output power (FTC)	110 watts
rated output power (IEC)	5 ch × 130 W
maximum output power (JEITA)	5 ch × 160 W
dynamic power (3Ω, 1 ch driven)	210 W
dynamic power (4Ω, 1 ch driven)	190 W
dynamic power (8Ω, 1 ch driven)	130 W
total harmonic distortion (THD)	0.08%
damping factor	60
input sensitivity and impedance	200 mV/ 47 kΩ
output level and impedance	200 mV/ 470 Ω
frequency response	5 Hz–100 kHz
tone control (bass)	±10 dB, 50 Hz
tone control (treble)	±10 dB, 20 kHz
signal to noise ratio	100 dB
speaker impedance	8Ω–16Ω

Video Section

input sensitivity/output level and impedance (component and s-video y)	1 Vp-p /75Ω
input sensitivity/output level and impedance (component pb/cb, pr/cr)	0.7 Vp-p /75Ω
input sensitivity/output level and impedance (s-video c)	0.28 Vp-p /75Ω
input sensitivity/output level and impedance (composite)	1 Vp-p /75Ω
component video frequency response	5 Hz – 50 MHz

Tuner Section

fm tuning frequency range	87.5 MHz– 108.0 MHz
am tuning frequency range	522 kHz–1611 kHz
radio presets	40

General

power supply	AC 230 V, 50 Hz
power consumption	560 W
standby power consumption	0.3 W
dimensions (W × H × D)	435 × 150 × 377 mm
weight	10.2 kg
