13
Getting to Know the AV Receiver —Continued
For detailed information, see the pages in parentheses.
I
MASTER VOLUME control (47)
Sets the volume of the AV receiver to Min, 1
through 79, or Max.
J
PHONES jack (49)
This 1/4-inch phone jack is for connecting a stan-
dard pair of stereo headphones for private listening.
K
SPEAKER A B buttons
Turn speaker set A and B on or off.
L
TONE, –, and + buttons (75)
Used to adjust the tone (bass and treble).
M
MOVIE/TV button (67)
Selects the listening modes intended for use with
movies and TV.
N
MUSIC button (67)
Selects the listening modes intended for use with
music.
O
GAME button (67)
Selects the listening modes intended for use with
video games.
P
DISPLAY button (49)
Displays various information about the currently
selected input source.
Q
DIGITAL INPUT button (46)
Used to assign digital inputs to input selectors.
R
DIMMER (RT/PTY/TP) button (64, 48)
Adjusts the display brightness.
On the European modes, this is the RT/PTY/TP but-
ton, and it’s used with RDS (Radio Data System).
See “Using RDS (European models only)” on
page 63.
S
MEMORY button (54)
Used when storing or deleting radio presets.
T
TUNING MODE button (52)
Selects the Auto or Manual tuning mode for AM
and FM radio.
U
SETUP MIC (42)
The automatic speaker setup microphone connects
here.
V
AUX INPUT (37, 73)
Used to connect a camcorder, game console, and so
on. There are input jacks for composite video and
analog audio.
For detailed information, see the pages in parentheses.
1
SLEEP indicator (48)
Lights up when the Sleep function has been set.
2
MUTING indicator (48)
Flashes while the AV receiver is muted.
3
Listening mode and format indicators (67)
Show the selected listening mode and audio input
signal format.
4
Tuning indicators (52)
FM STEREO (52): Lights up when tuned to a ste-
reo FM station.
RDS (63): Lights up when tuned to a radio station
that supports RDS (Radio Data System).
AUTO (52): Lights up when Auto Tuning mode is
selected for AM or FM radio. Goes off when Man-
ual Tuning mode is selected.
TUNED (52): Lights up when tuned to a radio sta-
tion.
5
Message area
Displays various information.
6
Audio input indicators
Indicate the type of audio input that’s selected as the
audio source: MULTI CH, or HDMI.
7
Audyssey indicator (43)
Lights up during automatic speaker setup.

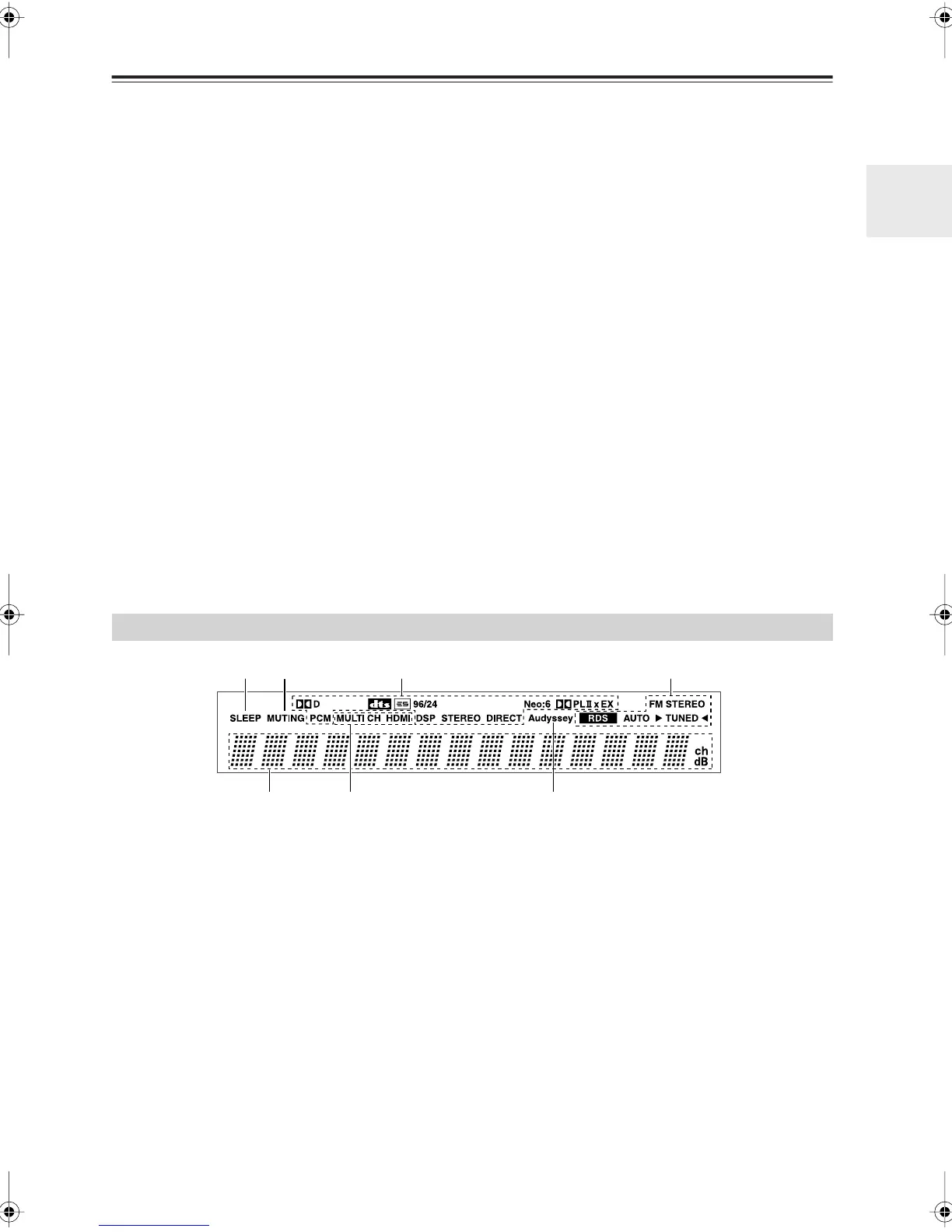

Display
1 23 4
57
6
HT-S5100En.book Page 13 Monday, May 19, 2008 1:47 PM
