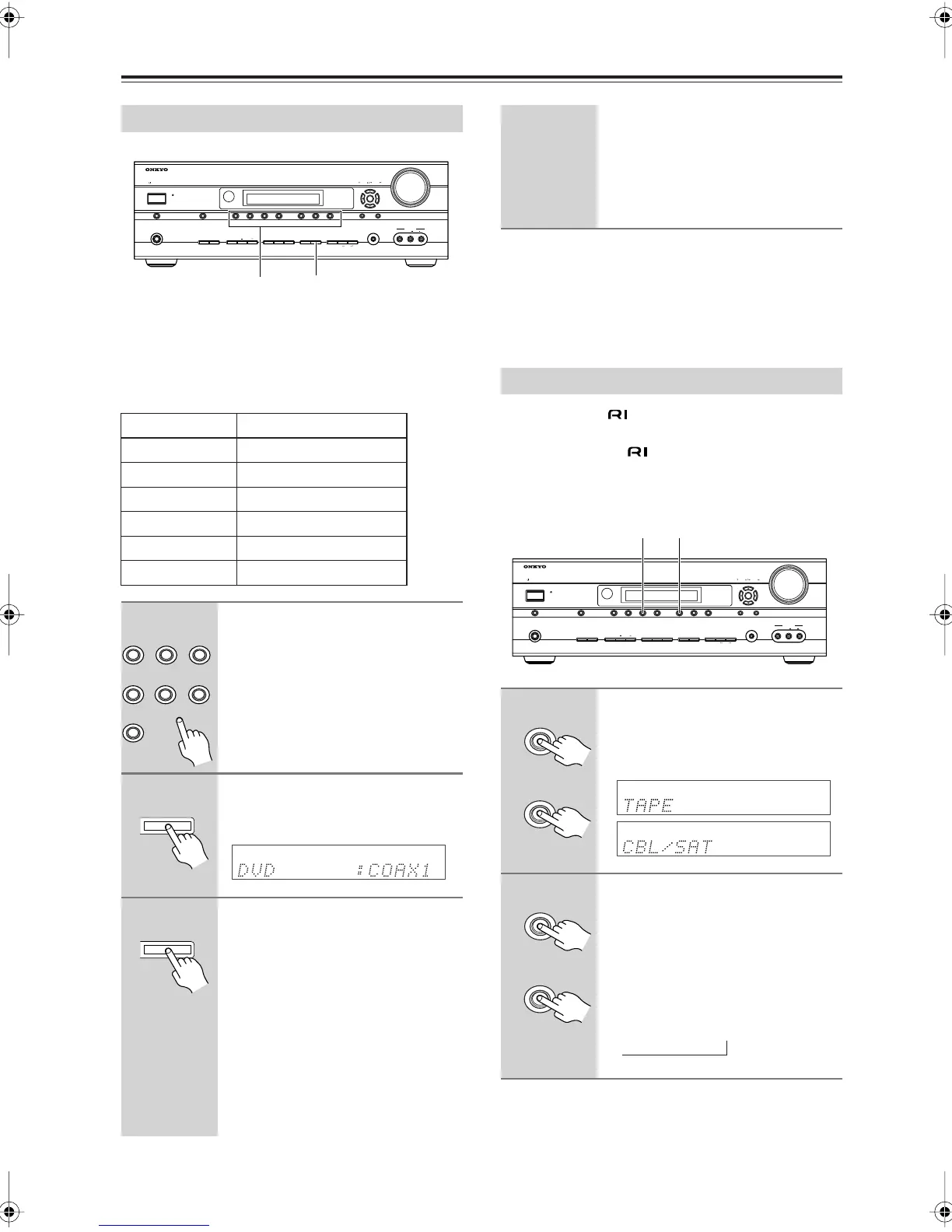

First Time Setup —Continued
If you connect a component to a digital audio input, you
must assign that input to an input selector. For example,
if you connect your CD player to OPTICAL IN 1, you
must assign OPTICAL IN 1 to the CD input selector.
These are the default assignments.
Note:
• This procedure can also be performed on the AV
receiver by using its [SETUP], [ENTER], and arrow
buttons.
If you connect an -capable Onkyo MiniDisc recorder
or CD recorder to the TAPE IN/OUT jacks, or to the
CBL/SAT jacks, for to work properly, you must
change this setting.
This setting can only be changed on the AV receiver.
Digital Input Setup
Input selector Audio input
DVD COAX1
VCR/DVR OPT1
CBL/SAT COAX2
AUX - - -
TAPE - - -
CD OPT2
1
Press the input selector button
for the input selector that you
want to assign.
The TUNER and DOCK input selectors
cannot be assigned and are fixed at the
“- - -” option.
2
Press the [DIGITAL INPUT]
button.
The current assignment is displayed.
3
Press the [DIGITAL INPUT] but-
ton repeatedly to select an
option.
COAX1 : Select if the component is
connected to DIGITAL IN
COAXIAL 1.
COAX2 : Select if the component is
connected to DIGITAL IN
COAXIAL 2.
OPT1 : Select if the component is
connected to DIGITAL IN
OPTICAL 1.
ON/STANDBY
STANDBY
SPEAKERS
TONE
MOVIE/TV MUSIC GAME
DISPLAY RT/PTY/TP MEMORY
CLEAR
DIGITAL INPUT TUNING MODE
BA
PHONES
MULTI CH DOCK DVD VCR/DVR CBL/SAT AUX TAPE TUNER CD
SETUP
SETUP MIC
VIDEO
L AUDIO R
AUX INPUT
ENTER
RETURN
TUNING PRESET
MASTER VOLUME
AV RECEIVER HT-R560
1 2, 3
DVD VCR/DVR CBL/SAT
AUXTAPE TUNER
CD
DIGITAL INPUT
DIGITAL INPUT
OPT2 : Select if the component is
connected to DIGITAL IN
OPTICAL 2.
- - -: Select if the component is
connected to an analog
input.
Changing the Input Display
1
Press the [TAPE] or [CBL/SAT]
input selector button so that
“TAPE” or “CBL/SAT” appears on
the display.
2
Press and hold down the [TAPE]
or [CBL/SAT] input selector but-
ton (about 3 seconds) to change
the setting.
Repeat this step to select MD or CDR.
For the TAPE input selector, the setting
changes in this order:
ON/STANDBY
STANDBY
SPEAKERS
TONE
MOVIE/TV MUSIC GAME
DISPLAY RT/PTY/TP MEMORY
CLEAR
DIGITAL INPUT TUNING MODE
BA
PHONES
MULTI CH DOCK DVD VCR/DVR CBL/SAT AUX TAPE TUNER CD
SETUP
SETUP MIC
VIDEO
L AUDIO R
AUX INPUT
ENTER
RETURN
TUNING PRESET
MASTER VOLUME
AV RECEIVER HT-R560
1, 2 1, 2
TAPE
CBL/SAT
or
TAPE
CBL/SAT
or
TAPE → MD → CDR
→
