Connecting Your Speakers
—Continued

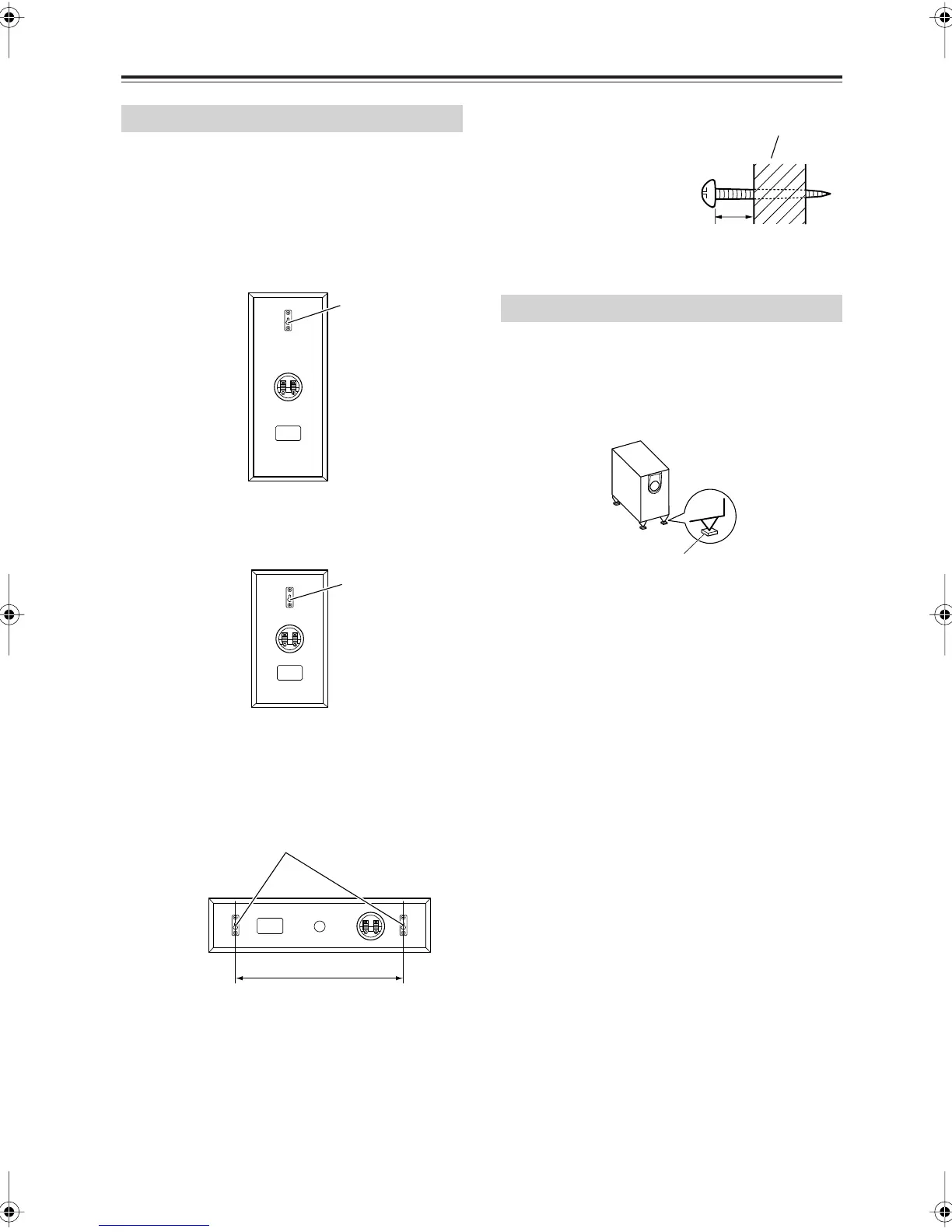

The speakers can easily be wall mounted by using the
keyhole slots.
To mount the front or surround speakers vertically, use
the keyhole slot shown to hang each speaker on a screw
that’s securely screwed into the wall.
Front speaker (SKF-560F)
Surround speaker/ Surround back speaker
(SKM-560S/SKB-560)
To mount the center speaker horizontally, use the two
keyhole slots shown to hang each speaker on two screws
that are securely screwed into the wall.
Center speaker (SKC-560C)
Caution:
A mounting screw’s ability to support a speaker depends
on how well it’s anchored to the wall. If you have hollow
walls, screw each mounting screw into a stud. If there are
no studs, or the walls are solid, use suitable wall anchors.
Use screws with a head diameter of 5/16" (9 mm) or less
and a shank diameter of 1/8" (4 mm) or less. With hollow
walls, use a cable/pipe detector to check for any power
cables or water pipes before making any holes.
Leave a gap of between
3/16" (5 mm) and 7/16"
(10 mm) between the wall
and the base of the screw
head, as shown.
(We recommend that you
consult a home installa-
tion professional.)
If the subwoofer is placed on a hard floor (wood, vinyl,
tile, etc.) and playback is very loud, the subwoofer's feet
may damage the flooring. To prevent this, place the sup-
plied pads underneath the subwoofer's feet. The pads
also provide a stable base for the subwoofer.
Wall Mounting
Keyhole slot for
wall mounting
Keyhole slot for
wall mounting
11-13/16" (300 mm)
Keyhole slots for wall mounting
Using the Floor Pads for Subwoofer
Wall
3/16" – 7/16"
(5 mm) – (10 mm)
Pad
HT-S5100En.book Page 24 Monday, May 19, 2008 1:47 PM
