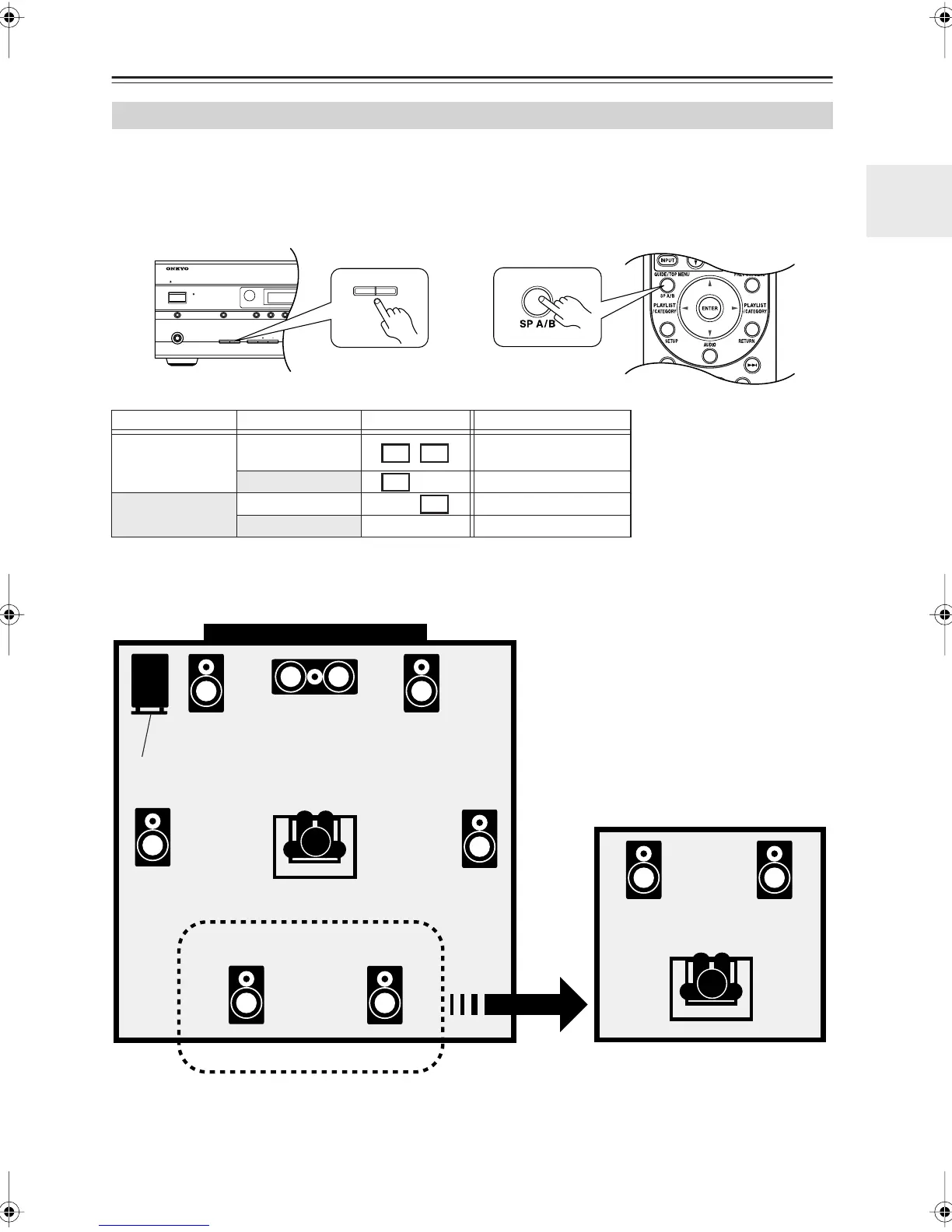

Using Two Sets of Speakers
You can use two sets of speakers with the AV receiver:
speaker set A
and
speaker set B
.
Speaker set A
should be used in your main listening room for up to 7.1-channel playback.
*While speaker set B is on, speaker set A is reduced to 5.1-channel playback.
Speaker set B
can be used in another room and offers 2-channel stereo playback.
*Only analog input sources are output by speaker set B.
Speaker Sets A and B
ON/STANDBY
STANDBY
SPEAKERS
TONE
MOVIE/TV MUSIC GAME
DISPLAY RT/PTY/TP MEMORY
CLEAR
DIGITAL INPUT TUNING MODE
BA
PHONES
MULTI CH
DOCK
DVD VCR/DVR CBL/SAT AUX TAPE TUNER CD
SETUP
SETUP MIC
VIDEO
L AUDIO R
AUX INPUT
ENTER
RETURN
TUNING PRESET
MASTER VOLUME
AV RE CEIVER
HT-R560
AB
SPEAKERS
or
Speaker set A Speaker set B Indicator Output
On
On
Set A: 5.1 channels
Set B: 2 channels
Off Set A: 7.1 channels
Off
On Set B: 2 channels
Off No sound
A B
A
B
Surround back
right speaker
Front right
speaker
Center speaker
Surround
left
speaker
Subwoofer
Sub Room (speaker set B)
* While speaker set B is on, the surround
back speakers output no sound.
Main Room (speaker set A)
* Digital input sources are not output
by speaker set B. Connect your
source component with an analog
connection.
Surround
right
speaker
Front left
speaker
Surround back
left speaker
