Onkyo HT S5100 User Manual

23
Connecting Your Speakers —Continued
Note:
While speaker set B is on, speaker set A is reduced to
5.1-channel playback.
Connecting Speaker Set A
1
Strip 5/8" (15 mm) of insu-
lation from the ends of the
speaker cables, and twist
the bare wires tightly, as
shown.
2
Unscrew the terminal. Fully insert the bare wire,
making sure that it’s touching the threaded shaft
in the center. Screw the terminal tight.
5/8" (15 mm)
Connecting Speaker Set B
1
Strip 3/8" (10 mm) of insu-
lation from the ends of the
speaker cables, and twist
the bare wires tightly, as
shown.
2
While pressing the lever, insert
the wire into the hole, and then
release the lever.
Make sure that the terminals are
gripping the bare wires, not the
insulation.
3/8" (10 mm)
OUT
OUT
R
L
IN
IN
IN IN
IN
O
NENT VIDEO
SUB
WOOFER
FRONT
SURR CENTER
SURR BACK
CBL/SAT
CBL/SAT
VCR/DVR
VCR/DVR
DVD
DVD
R
L
R
L
S
V
MONITOR
OUT
S
V
L
R
SURR SPEAKERS
FRONT SPEAKERS A
CENTER SPEAKER
ANTENNA
FM
AM
75
IN 1
IN 2IN 3
OUT
FRONT SPEAKERS B
L
R
SURR BACK SPEAKERS
SIRIUS
DOCK
PRE OUT
SUB
WOOFER
L
R
L
R
SURR BACK SPEAKERS
SURR SPEAKERS
FRONT SPEAKERS A
CENTER
SPEAKER
Surround
back left
speaker
Surround
back right
speaker
Front left
speaker
Front right
speaker
Center
speaker
Surround
right
speaker
Surround
left
speaker

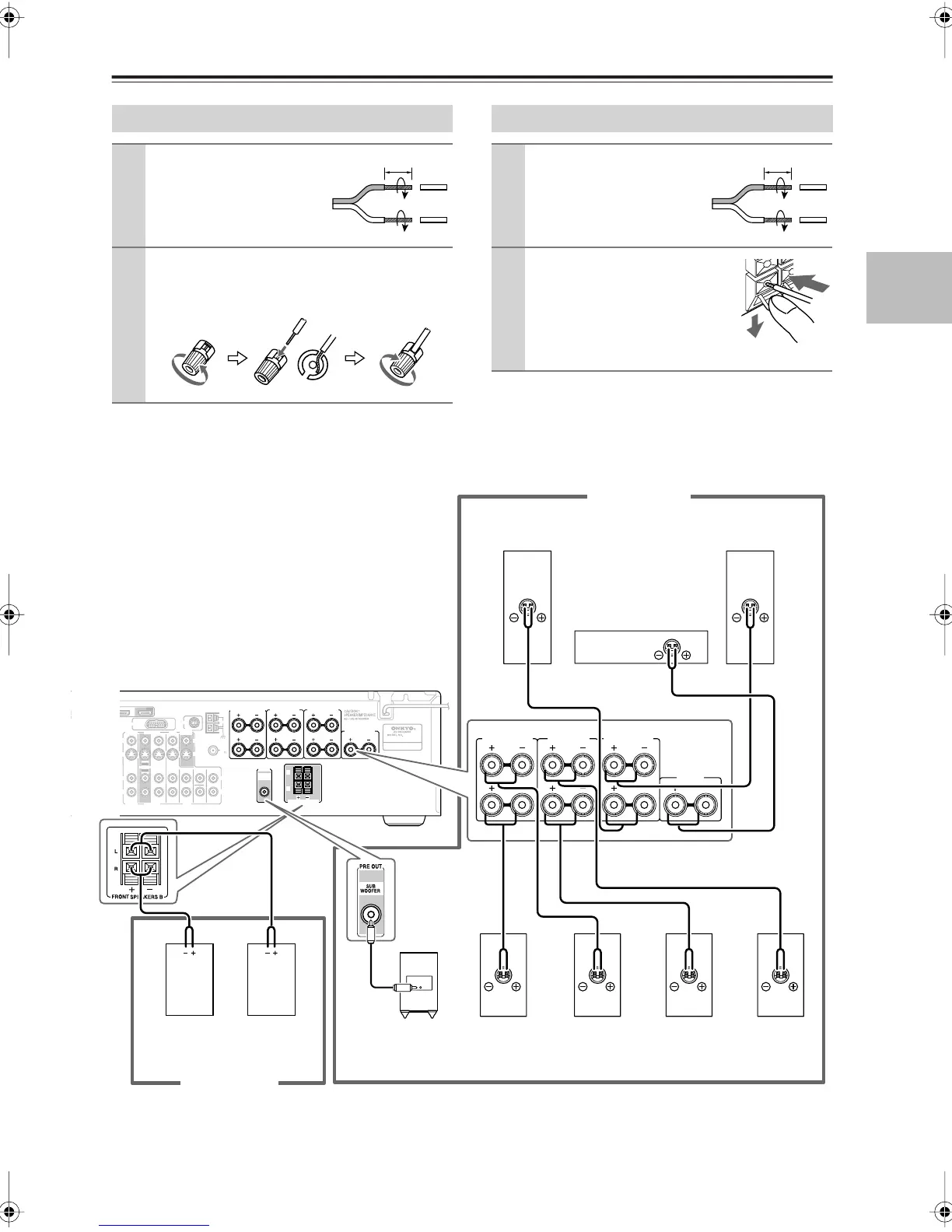

The following illustration shows which speaker should be
connected to each pair of terminals.
If you’re using only one surround back speaker, connect it
to the left (L) SURR BACK SPEAKERS terminals.
Speaker Set A
Front left
speaker
Front right
speaker
Speaker Set B
Powered
subwoofer
HT-S5100En.book Page 23 Monday, May 19, 2008 1:47 PM
