Connecting Your Components —Continued
Notes:
•To connect an RI dock other than the DS-A1L, refer to its instruction manual.
• While your iPod is seated in the Dock, its battery will be charged when the AV receiver is set to On or Standby.

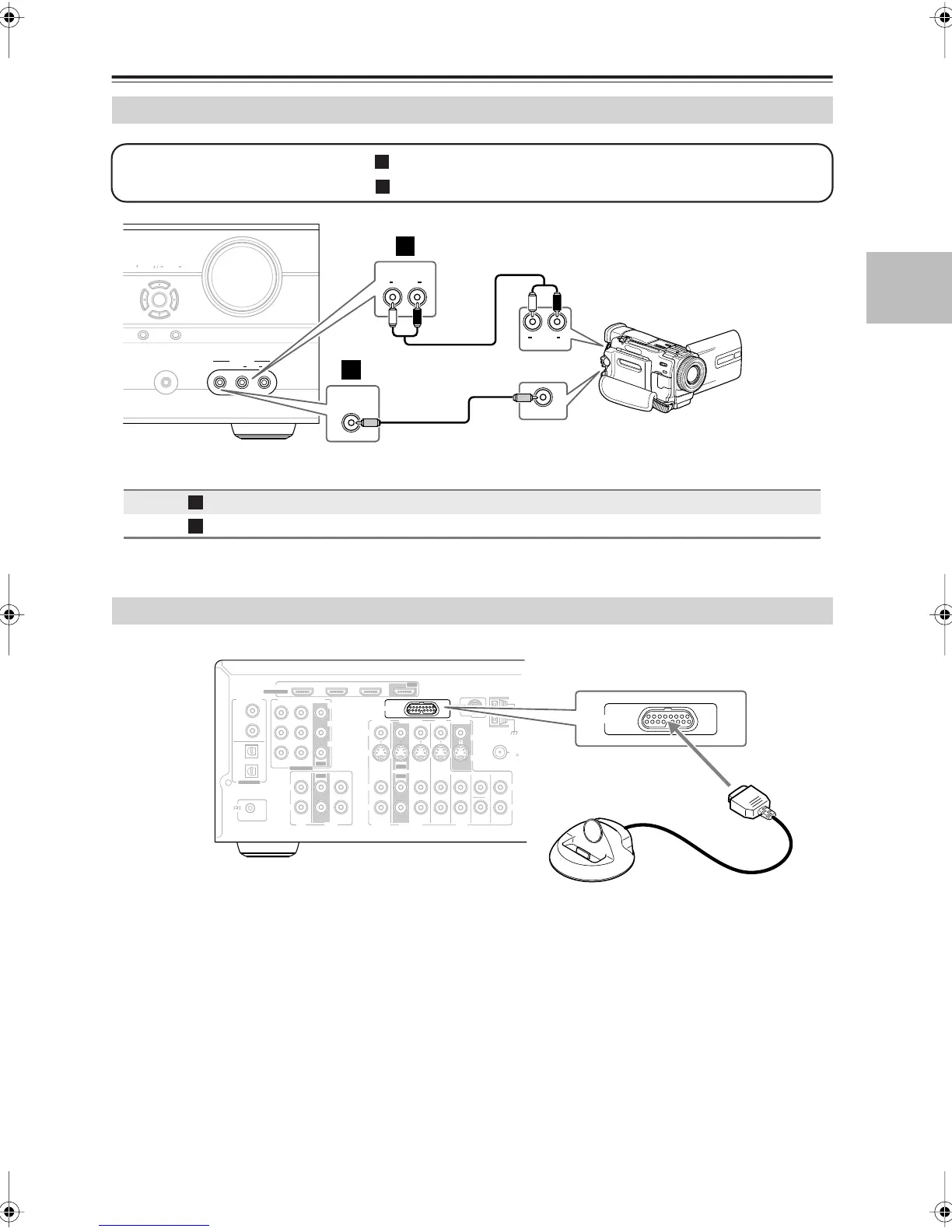

Connecting a Camcorder, Game Console, or Other Device
Connection AV receiver Signal flow Camcorder or console
AUX INPUT VIDEO
⇐
Composite video output
AUX INPUT L-AUDIO-R
⇐
Analog audio L/R output
Connecting the Supplied DS-A1L Dock
SETUP
SETUP MIC
VIDEO
L AUDIO R
AUX INPUT
ENTER
RETURN
TUNING PRESET
MASTER VOLUME
VIDEO OUT
AUDIO
AUX INPUT
LR
AUDIO
OUT
LR
AUX INPUT
VIDEO
a
A
Step 1: Make the video connection .
Step 2: Make the audio connection .
A
a
Camcorder, game console, etc.
A
a
IN IN
IN
IN
IN IN
IN
IN 1(DVD)IN 2
OUT
OUT
Y
C
B/PB
CR/PR
SUB
WOOFER
FRONT SURR
SURR BACK
CENTER
CD
R
L
TAPE
CBL/SAT
CBL/SAT
VCR/DVR
VCR/DVR
DVD
DVD
R
L
R
L
S
V
MONITOR
OUT
S
V
REMOTE
CONTROL
ASSIGNABLE
COAXIAL
OPTICAL
1
(DVD)
2
(CBL/SAT)
1
(VCR/DVR)
2
(CD)
DIGITAL IN
ASSIGNABLE
ANTENNA
FM
AM
75
OUT
OUT
COMPONENT VIDEO
HDMI
IN 1
IN 2IN 3
ASSIGNABLE
OUT
DOCK
SIRIUS
DOCK
