To Non-ARC TV
If the TV does not support the ARC (Audio Return Channel) function (*), connect
an HDMI cable and digital optical cable. If the TV does not have a DIGITAL
OPTICAL OUT jack, you can use an analog audio cable to connect with the
AUDIO IN TV jack.
If you use a cable set-top box, etc. connected to the input jack of this unit to
watch TV (without using a TV’s built-in tuner), connection with a digital optical
cable or analog audio cable is not required.
Another TV or projector can be connected to the HDMI OUT SUB jack. To
switch between MAIN and SUB, press the Q button ( p147) on the remote
controller, and select "Other" - "HDMI Out". Note that this jack is not ARC-
compatible.
(*) ARC function: This function transmits the audio signals of the TV via an
HDMI cable, and plays the audio of the TV on this unit. Connection to an ARC-
compatible TV is complete with one HDMI cable. To check if the TV supports the
ARC function, refer to the instruction manual of the TV, etc.

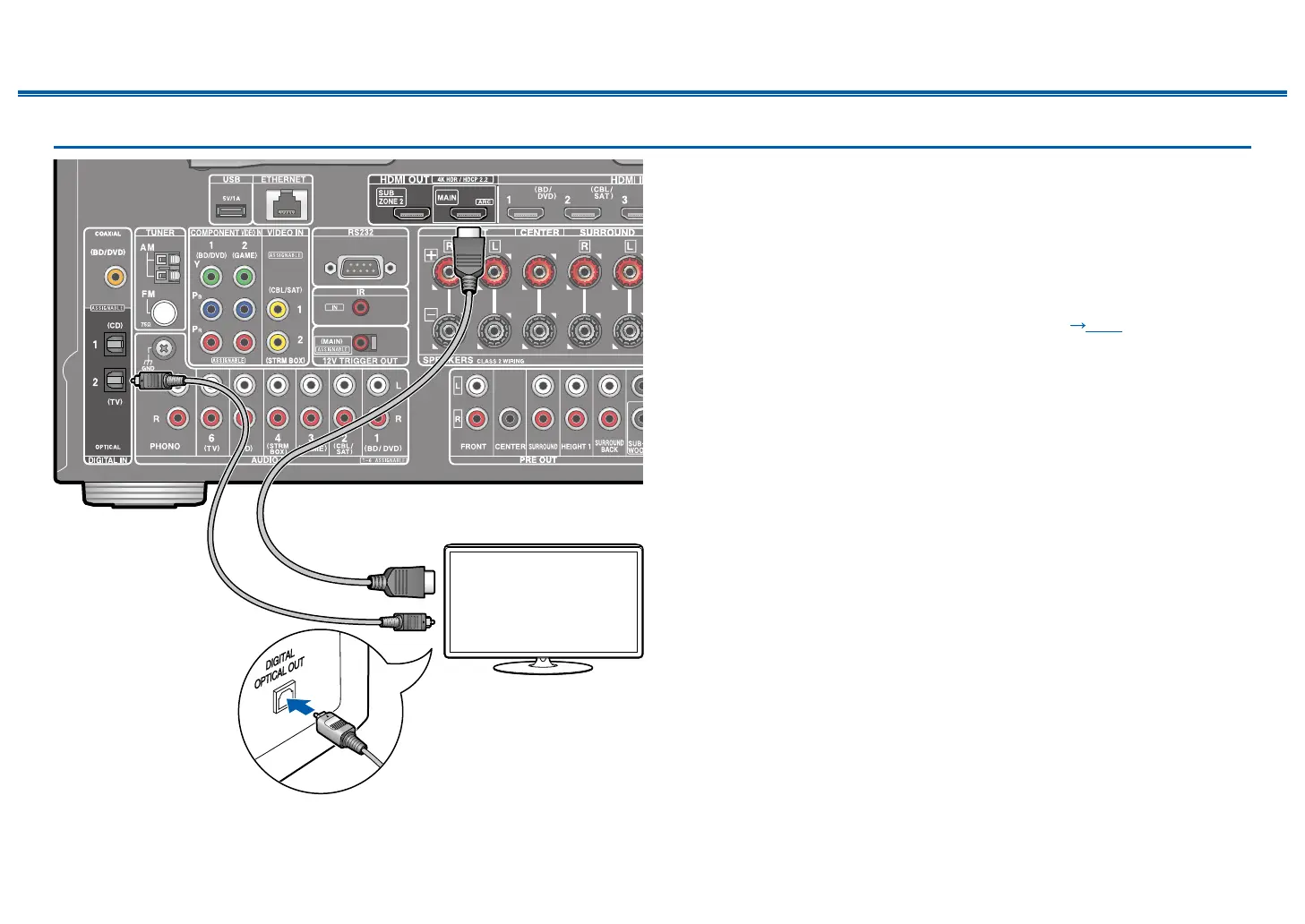

a HDMI cable, b Digital optical cable
b a
TV
