Connecting Playback Devices
Connecting an AV Component with HDMI Jack Mounted

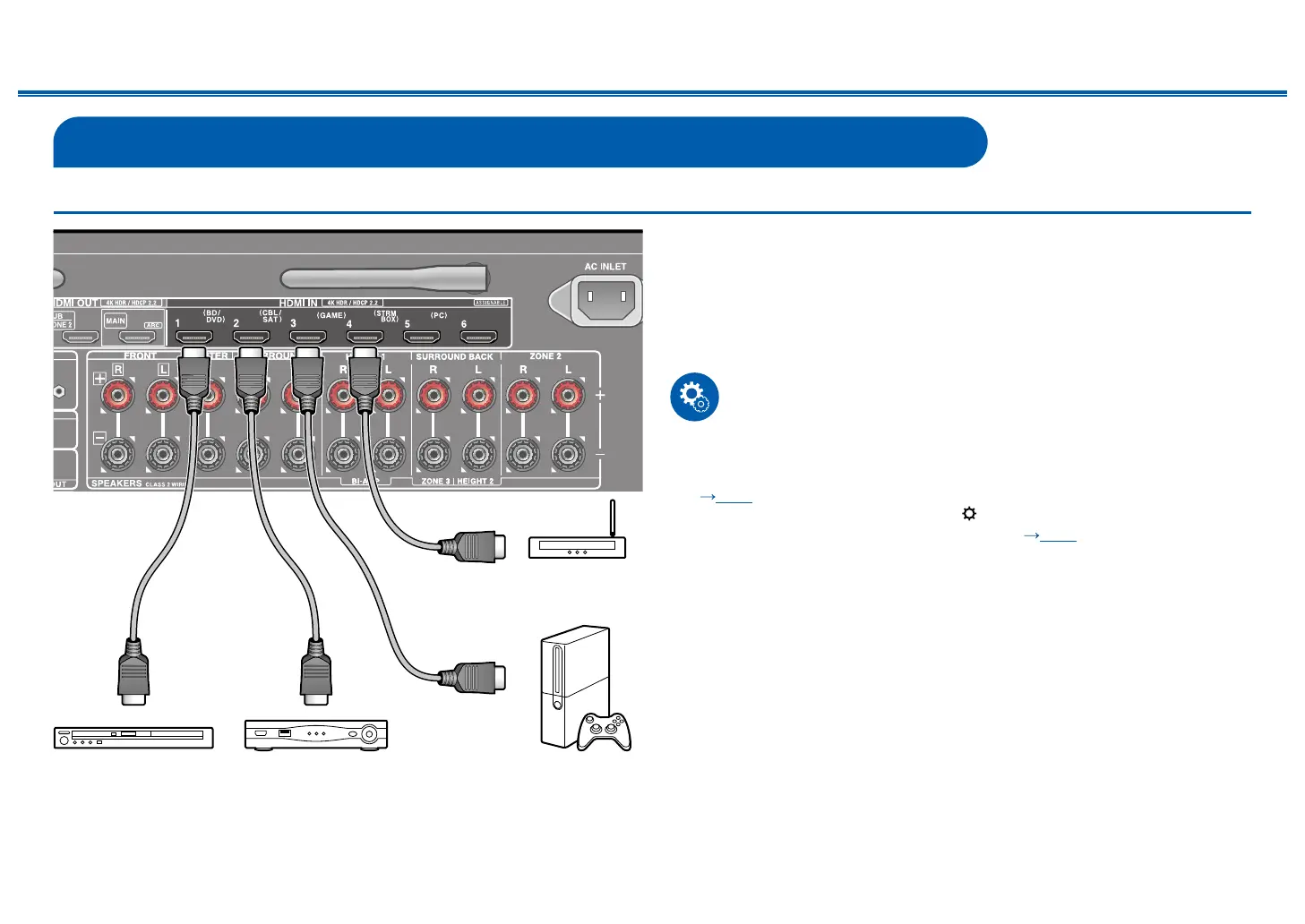

This is a connection example of an AV component equipped with an HDMI jack.
When connecting with an AV component that conforms to the CEC (Consumer
Electronics Control) standard, you can use the HDMI CEC function (*) that
enables linking with input selectors, etc. and the HDMI Standby Through function
that can transmit video and audio signals of the AV component to the TV even if
this unit is in standby mode.
• To play 4K or 1080p video, use a high speed HDMI cable.
Setup
• The HDMI CEC function and HDMI Standby Through function are
automatically enabled if you select "Yes" for "5. ARC Setup" in Initial Setup
( p155). If "No, Skip" is selected, settings are required in the Setup menu
after Initial Setup is completed. Press on the remote controller, and select
"5. Hardware" - "HDMI" to make the settings. ( p140)
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
(*)The HDMI CEC function: This function enables various linking operations
with CEC-compliant devices, such as switching input selectors interlocking with
a CEC-compliant player, switching audio output between TV and this unit or
adjusting the volume using the remote controller of a CEC-compliant TV, and
automatically switching this unit to standby when the TV is turned o󰀨.
a HDMI cable
a
Streaming media
player
GAMEBD/DVD Cable/Satellite
set-top box

Onkyo TX-RZ730 Specifications

General

Package depth	468 mm
Package width	570 mm
Package height	288 mm
AirPlay	Yes
Display	-
HDCP version	2.2
Product color	Silver
Audio decoders	DTS-HD, DTS:X, Dolby Atmos, Dolby TrueHD
Cables included	AC
Package weight	13500 g
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	760 W
Card reader integrated	No
AM band range	522 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
Audio formats supported	AIFF, ALAC, DSD, FLAC, WAV
Connectivity technology	Wired & Wireless
12V trigger ports quantity	1
Speakers connectivity type	Banana connector
Number of HDMI outputs	2
HDMI in	7
Audio (L/R) in	6
Multichannel audio input type	RCA
Receiver type	stereo
Pre-out channels	7.2
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	250 W
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	130 W
Power output per channel (20-20KHz@8 Ohm)	175 W

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	177 mm
Weight	10800 g
