Connecting a Pre-main Amplier (ZONE 2)
You can enjoy 2-ch audio in the separate room (ZONE 2) while performing
playback in the main room (where this unit is located). Use an analog cable to
connect the ZONE 2 PRE/LINE OUT jack of this unit and the LINE IN jack of the
pre-main amplier or power amplier in the separate room. The same source
can be played back in the main room and ZONE 2 simultaneously. Also, di󰀨erent
sources can be played back in both rooms.
• To output audio from an externally connected AV component to ZONE 2,
connect it to any of HDMI IN1 to IN3 jacks. If the AV component is not
equipped with an HDMI jack, use a digital coaxial cable, digital optical cable or
analog audio cable. Also, the audio from externally connected AV components
can be output to ZONE 2 only when the audio is analog or 2ch PCM signal.
When the AV component is connected to this unit with an HDMI cable, digital
coaxial cable or digital optical cable, change the audio output of the AV
component to the PCM output.

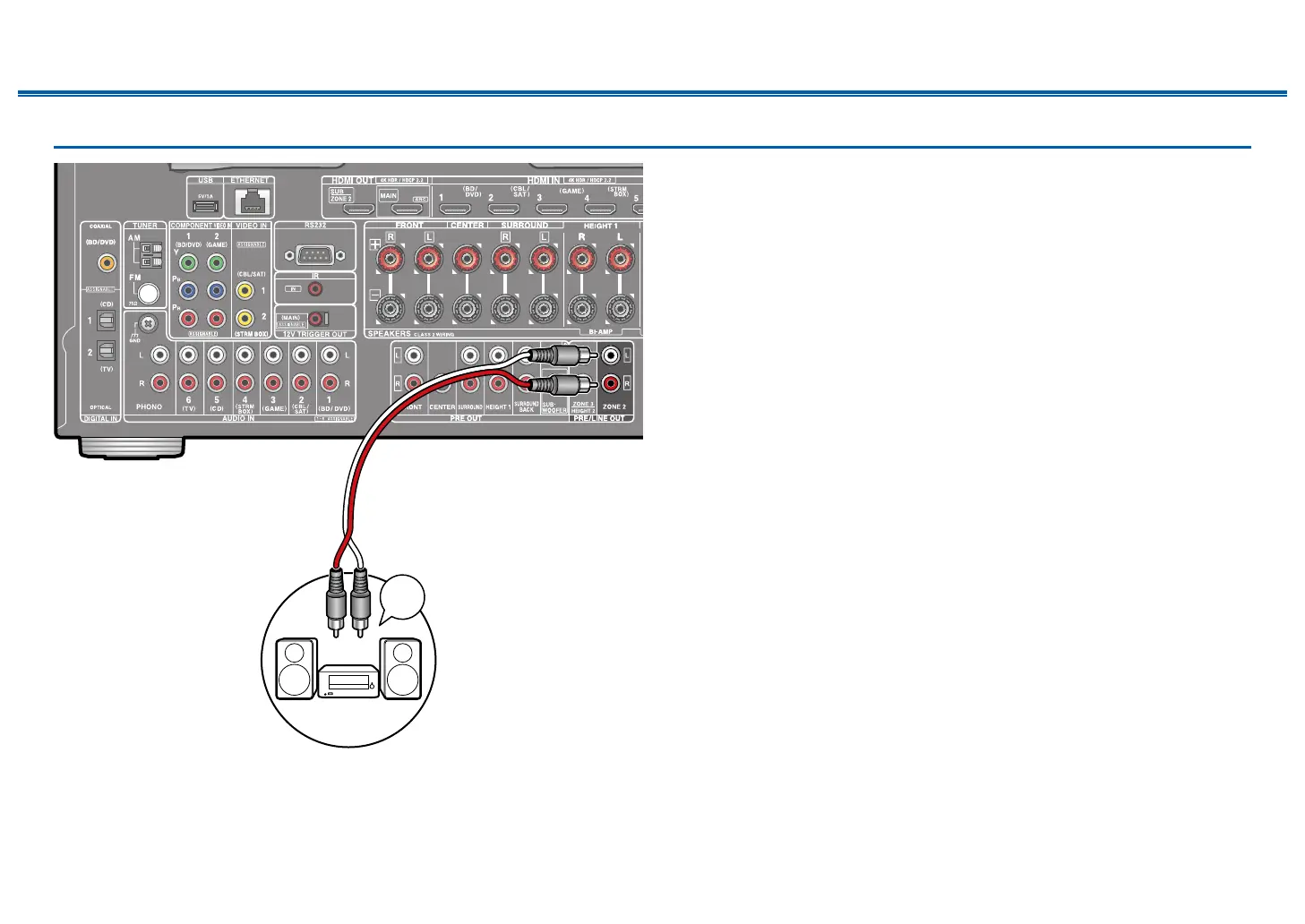

a Analog audio cable
aaaa
LINE
IN
Premain Amp.

Onkyo TX-RZ730 Specifications

General

Package depth	468 mm
Package width	570 mm
Package height	288 mm
AirPlay	Yes
Display	-
HDCP version	2.2
Product color	Silver
Audio decoders	DTS-HD, DTS:X, Dolby Atmos, Dolby TrueHD
Cables included	AC
Package weight	13500 g
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	760 W
Card reader integrated	No
AM band range	522 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
Audio formats supported	AIFF, ALAC, DSD, FLAC, WAV
Connectivity technology	Wired & Wireless
12V trigger ports quantity	1
Speakers connectivity type	Banana connector
Number of HDMI outputs	2
HDMI in	7
Audio (L/R) in	6
Multichannel audio input type	RCA
Receiver type	stereo
Pre-out channels	7.2
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	250 W
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	130 W
Power output per channel (20-20KHz@8 Ohm)	175 W

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	177 mm
Weight	10800 g
