Onkyo TX-RZ730 User Manual

63
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫

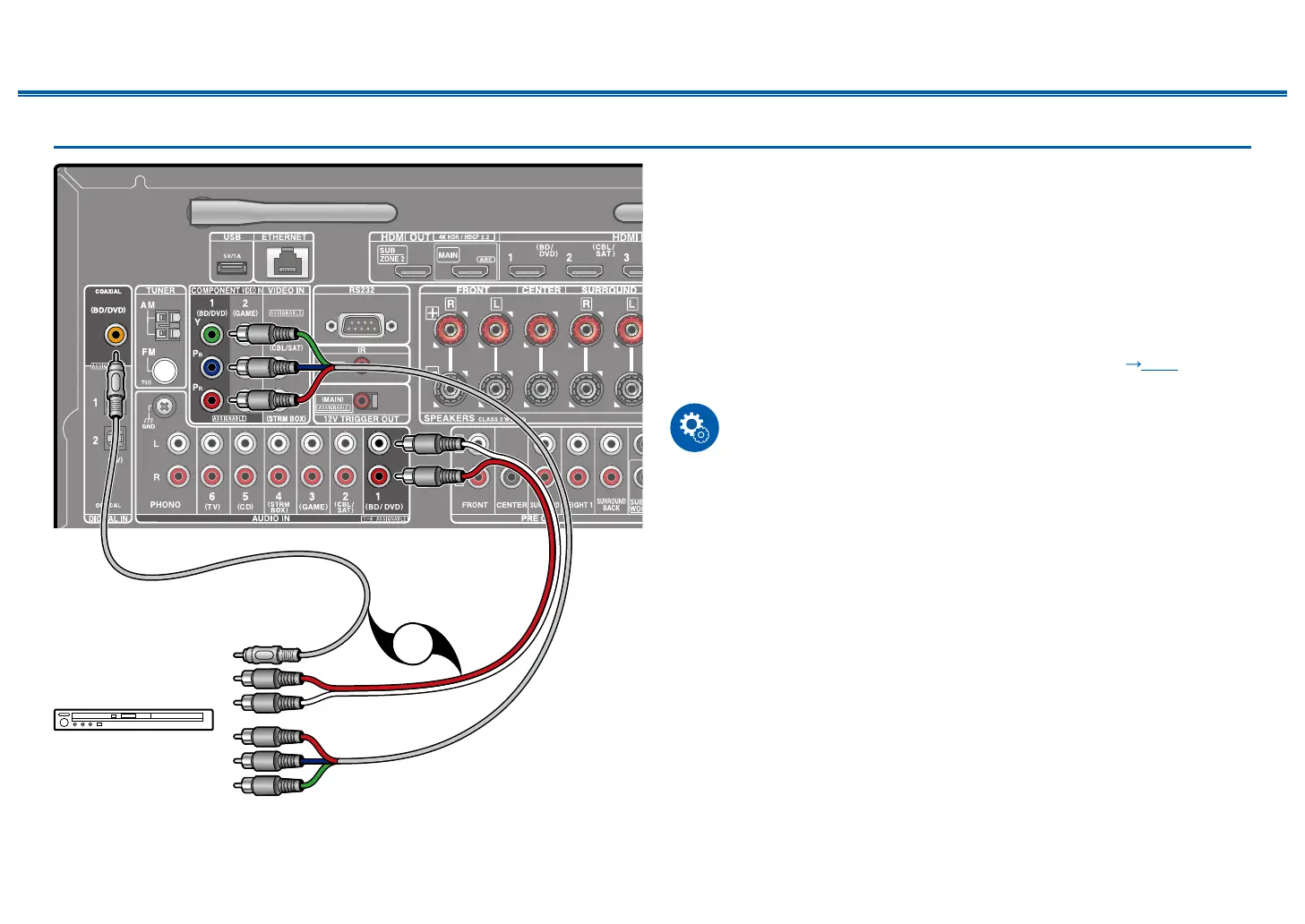

Connecting an AV Component without HDMI Jack Mounted
This is a connection example of an AV component unequipped with an HDMI
jack. Select cables that match the jacks of the AV component for connection. For
example, when video input is connected to the BD/DVD jack, connect the audio
input to BD/DVD jack, too. Thus, video input jacks and audio input jacks should
have the same name for connection. Note that video signals input to the VIDEO
IN jack or the COMPONENT VIDEO IN jack are converted to HDMI video signals,
and then output from the HDMI OUT jack.
• To enjoy digital surround playback in formats such as Dolby Digital, you need
to make a connection for audio signals with a digital coaxial cable or a digital
optical cable.
• According to the illustration, changing the input assignment ( p129)
enables connection to jacks other than the BD/DVD jack.
Setup
• The COMPONENT VIDEO IN jacks are compatible only with 480i or 576i
resolution. When connecting to the COMPONENT VIDEO IN jacks, set the
output resolution of the player to 480i or 576i. If there is no option such as
480i, select interlace. If your player does not support 480i or 576i output, use
the VIDEO IN jack.
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
a Digital coaxial cable, b Analog audio cable, c Component video cable
a b c
OR
BD/DVD

Onkyo TX-RZ730 Specifications

General

Package depth	468 mm
Package width	570 mm
Package height	288 mm
AirPlay	Yes
Display	-
HDCP version	2.2
Product color	Silver
Audio decoders	DTS-HD, DTS:X, Dolby Atmos, Dolby TrueHD
Cables included	AC
Package weight	13500 g
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	760 W
Card reader integrated	No
AM band range	522 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
Audio formats supported	AIFF, ALAC, DSD, FLAC, WAV
Connectivity technology	Wired & Wireless
12V trigger ports quantity	1
Speakers connectivity type	Banana connector
Number of HDMI outputs	2
HDMI in	7
Audio (L/R) in	6
Multichannel audio input type	RCA
Receiver type	stereo
Pre-out channels	7.2
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	250 W
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	130 W
Power output per channel (20-20KHz@8 Ohm)	175 W

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	177 mm
Weight	10800 g
