Connecting a Pre-main Amplier (ZONE 3)

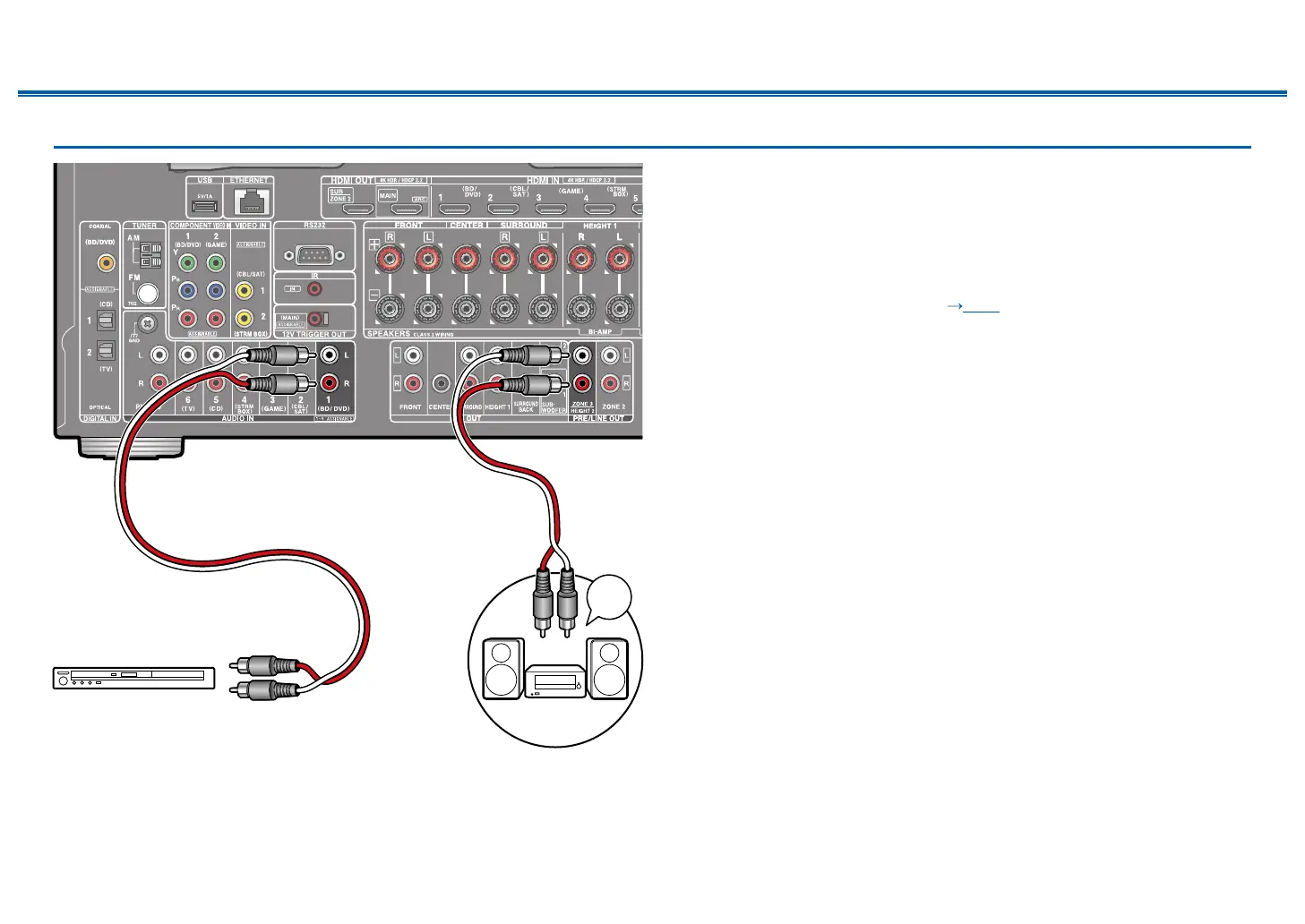

You can enjoy 2-ch audio in the separate room (ZONE 3) while performing
playback in the main room (where this unit is located). Use an analog cable to
connect the ZONE 3 PRE/LINE OUT jack of this unit and the LINE IN jack of the
pre-main amplier or power amplier in the separate room. The same source
can be played back in the main room and ZONE 3 simultaneously. Also, di󰀨erent
sources can be played back in both rooms.
• The ZONE 3 PRE/LINE OUT terminal can output only when "2. Speaker" -
"Conguration" in the Setup menu ( p131) is set to one of the following.
– When "Speaker Channels" is set to "2.1 ch", "3.1 ch", "4.1 ch", or "5.1 ch"
– When "Speaker Channels" is set to "5.1 ch" or "5.1.2 ch", and "Zone
Speaker" is set to "Zone 2/Zone 3"
– When "Speaker Channels" is set to "2.1.2 ch", "3.1.2 ch", "4.1.2 ch", or
"5.1.2 ch", and "Bi-Amp" and "Zone Speaker" is set to "No"
• To output audio from an externally connected AV component to ZONE 3, use
an analog audio cable for connection. Note that ZONE 3 output is not possible
with the connection using a HDMI cable, digital coaxial cable, or digital optical
cable.
a
a
LINE
IN
BD/DVD
Premain Amp.
a Analog audio cable

Onkyo TX-RZ730 Specifications

General

Package depth	468 mm
Package width	570 mm
Package height	288 mm
AirPlay	Yes
Display	-
HDCP version	2.2
Product color	Silver
Audio decoders	DTS-HD, DTS:X, Dolby Atmos, Dolby TrueHD
Cables included	AC
Package weight	13500 g
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	760 W
Card reader integrated	No
AM band range	522 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
Audio formats supported	AIFF, ALAC, DSD, FLAC, WAV
Connectivity technology	Wired & Wireless
12V trigger ports quantity	1
Speakers connectivity type	Banana connector
Number of HDMI outputs	2
HDMI in	7
Audio (L/R) in	6
Multichannel audio input type	RCA
Receiver type	stereo
Pre-out channels	7.2
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	250 W
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	130 W
Power output per channel (20-20KHz@8 Ohm)	175 W

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	177 mm
Weight	10800 g
