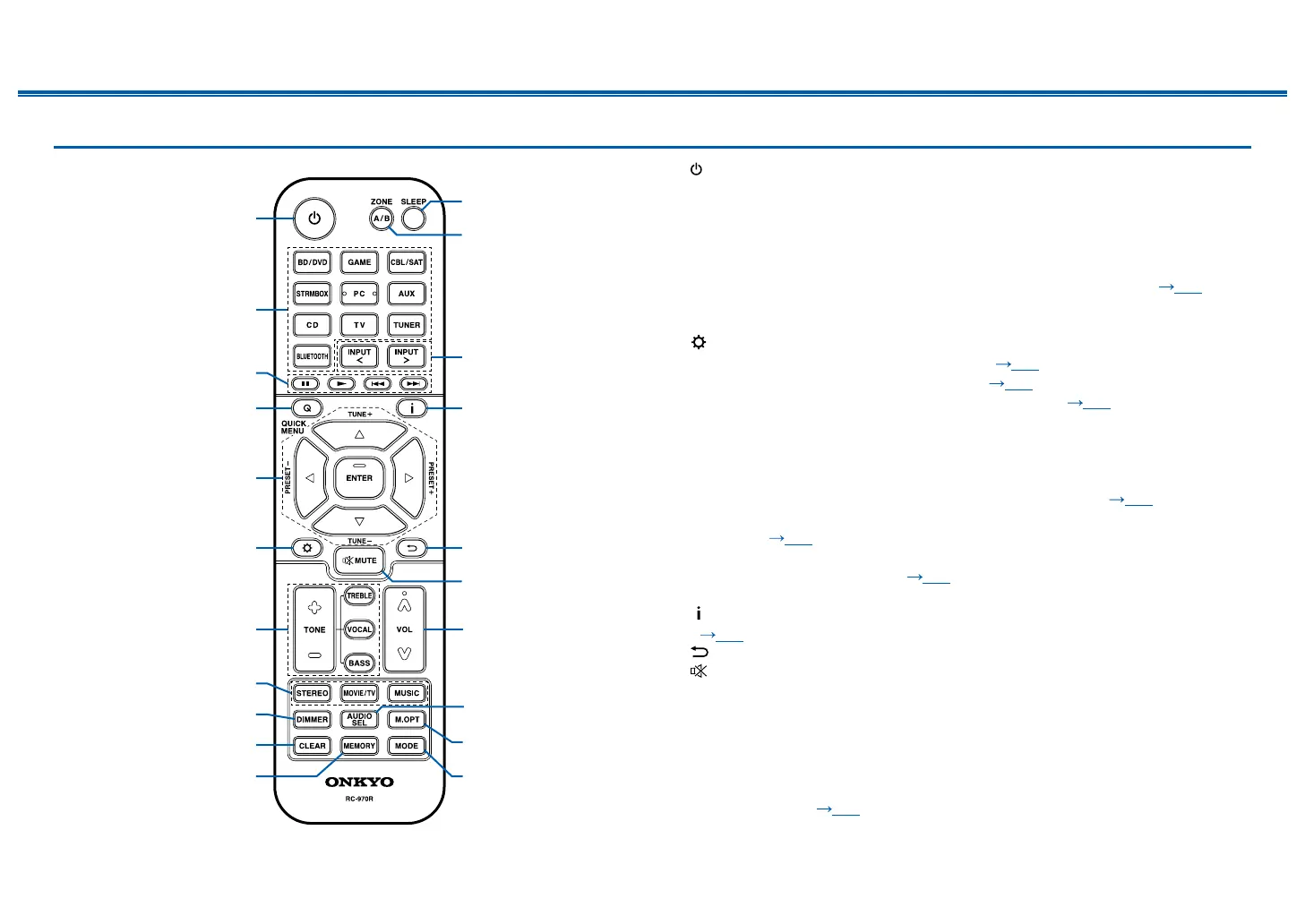

Remote Controller
1. ON/STANDBY button
2. Input selector buttons: Switches the input to be played.
3. Play buttons: Used for playback operation of a BLUETOOTH-enabled device. If the unit
is switched to "CEC MODE" using the MODE button, an HDMI CEC function-enabled AV
component can be operated. (Depending on the device, operation may not be possible.)
4. Q (QUICK MENU) button: Pressing this button during playback can make settings
such as "HDMI" and "Audio" quickly on the TV screen while playing. ( p77)
5. Cursor buttons and ENTER button: Select an item with the cursors, and press
ENTER to conrm your selection.
6. button: Display advanced setting items on the TV or the display to have a
more enjoyable experience with this unit. ( p61)
7. TONE button: Adjusts the sound quality. ( p44)
8. LISTENING MODE button: Select a listening mode ( p46).
9. DIMMER button: Switches the brightness of the display with three levels. It
cannot be turned o󰀨 completely.
10. CLEAR button: Deletes all characters you have entered when entering text on
the TV screen.
11. MEMORY button: Used to register AM/FM radio stations. ( p39)
12. SLEEP button: Set the sleep timer. Select the time from "30 min", "60 min" and
"90 min". ( p45)
13. ZONE A/B button: Selects an audio output destination from among "ZONE A",
"ZONE B" and "ZONE A+B". ( p42)
14. Input selector cursors: Switches the input to be played.
15. button: Switches the information on the display and is used to operate RDS
( p41).
16. button: Returns the display to the previous state while setting.
17. button: Temporarily mutes audio. Press the button again to cancel muting.
18. VOLUME buttons
19. AUDIO SEL button: When a device is connected to two or more audio input
terminals for one input selector, you can select which audio input signal to play.
20. M.OPT button: Turns on/o󰀨 the MUSIC OPTIMIZER function that improves the
quality of the compressed audio.
21. MODE button: Switches between automatic tuning and manual tuning for
AM/FM stations ( p37). Also, when an HDMI CEC function-enabled AV
component is connected to this unit, you can switch "3. Play buttons" between
"CEC MODE" and "RCV MODE" (normal mode).






















Onkyo TX-SR494 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	4 - 16 Ω
Input sensitivity	200 mV
4Ω speaker support	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	109 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Audio (L/R) in	3
Digital audio optical in	1
Component video (YPbPr/YCbCr) in	0
Audio (L/R) out	8
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Wi-Fi	No
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
AirPlay	-
Display	LCD
HDCP version	2.2
Product color	Black
Audio decoders	DTS Virtual:X, Dolby Atmos
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	490 W
THX-certified	THX

Weight and Dimensions

Depth	328 mm
Width	435 mm
Height	160 mm
Weight	10500 g
