Speaker Connections and "Speaker Setup" Settings
Connections
 (Note) Speaker Impedance
Connect speakers with an impedance of 4 Ω to 16 Ω. If any of the speakers to be connected has an impedance of 4 Ω or more and less than 6 Ω, set "Speaker
Impedance" to "4 ohms" for "Speaker Setup" in the Initial Setup section ( p79). When setting "Speaker Impedance" from the Setup menu, press on the remote
controller, and set "2. Speaker" - "Conguration" - "Speaker Impedance" ( p67) to "4 ohms".

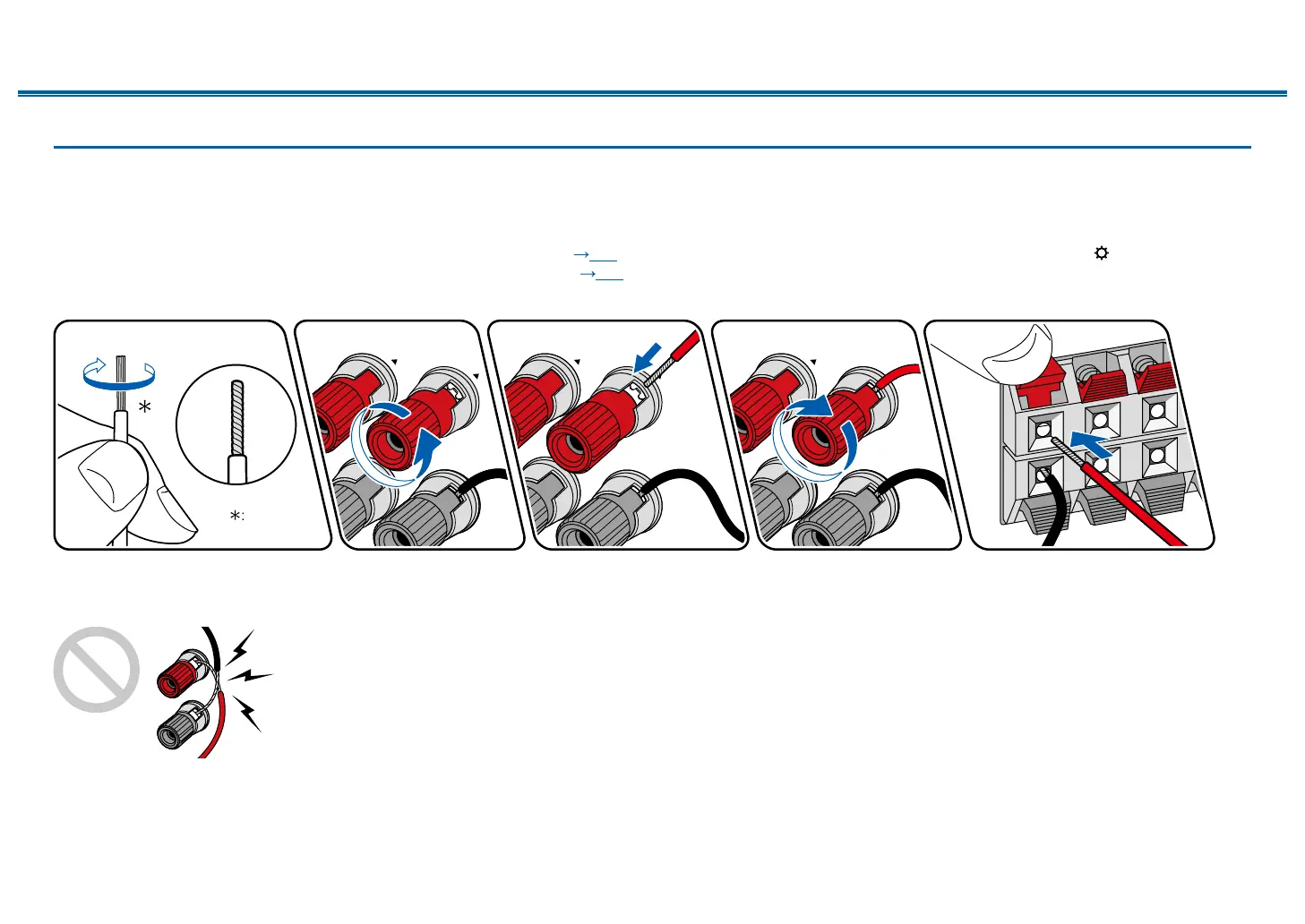

 Connect the Speaker Cables
1/2˝
(12 mm)
Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass sound
will not be reproduced properly due to reverse phase. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal
when connecting. If the exposed wires touch the rear panel, or the + side and - side wires touch each other, a malfunction may occur.

Onkyo TX-SR494 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	4 - 16 Ω
Input sensitivity	200 mV
4Ω speaker support	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	109 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Audio (L/R) in	3
Digital audio optical in	1
Component video (YPbPr/YCbCr) in	0
Audio (L/R) out	8
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Wi-Fi	No
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
AirPlay	-
Display	LCD
HDCP version	2.2
Product color	Black
Audio decoders	DTS Virtual:X, Dolby Atmos
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	490 W
THX-certified	THX

Weight and Dimensions

Depth	328 mm
Width	435 mm
Height	160 mm
Weight	10500 g
