Onkyo TX-SR494 User Manual

28
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
To Non-ARC TV
If the TV does not support the ARC (Audio Return Channel) function (*), connect
an HDMI cable and digital optical cable.
• If you use a cable set-top box, etc. connected to the input jack of this unit to
watch TV (without using a TV’s built-in tuner), connection with a digital optical
cable or analog audio cable is not required.
(*) ARC function: This function transmits the audio signals of the TV via an
HDMI cable, and plays the audio of the TV on this unit. Connection to an ARC-
compatible TV is complete with one HDMI cable. To check if the TV supports the
ARC function, refer to the instruction manual of the TV, etc.

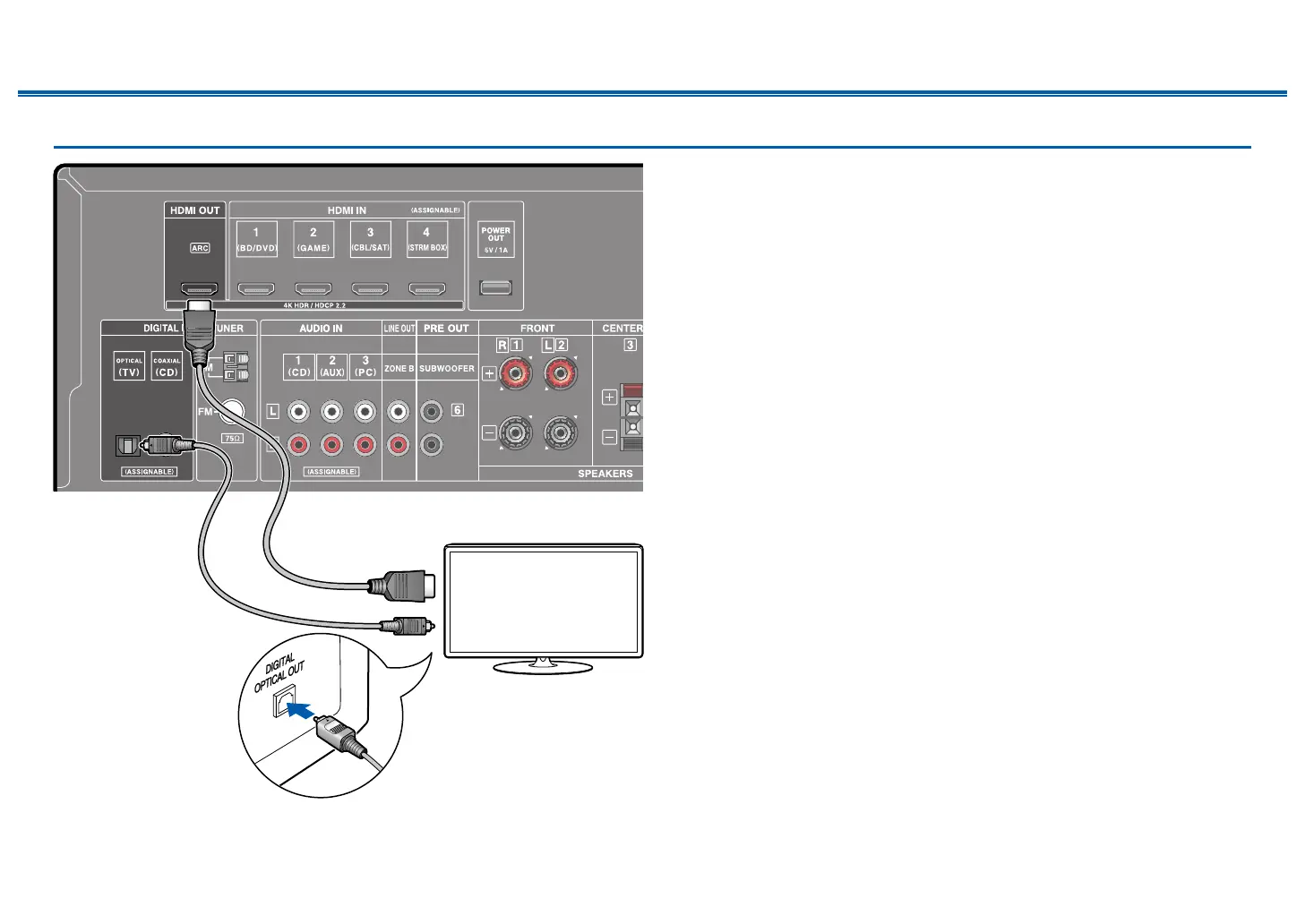

a HDMI cable, b Digital optical cable
a
b
TV

Onkyo TX-SR494 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	4 - 16 Ω
Input sensitivity	200 mV
4Ω speaker support	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	109 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Audio (L/R) in	3
Digital audio optical in	1
Component video (YPbPr/YCbCr) in	0
Audio (L/R) out	8
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Wi-Fi	No
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
AirPlay	-
Display	LCD
HDCP version	2.2
Product color	Black
Audio decoders	DTS Virtual:X, Dolby Atmos
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	490 W
THX-certified	THX

Weight and Dimensions

Depth	328 mm
Width	435 mm
Height	160 mm
Weight	10500 g
