Speaker Installation

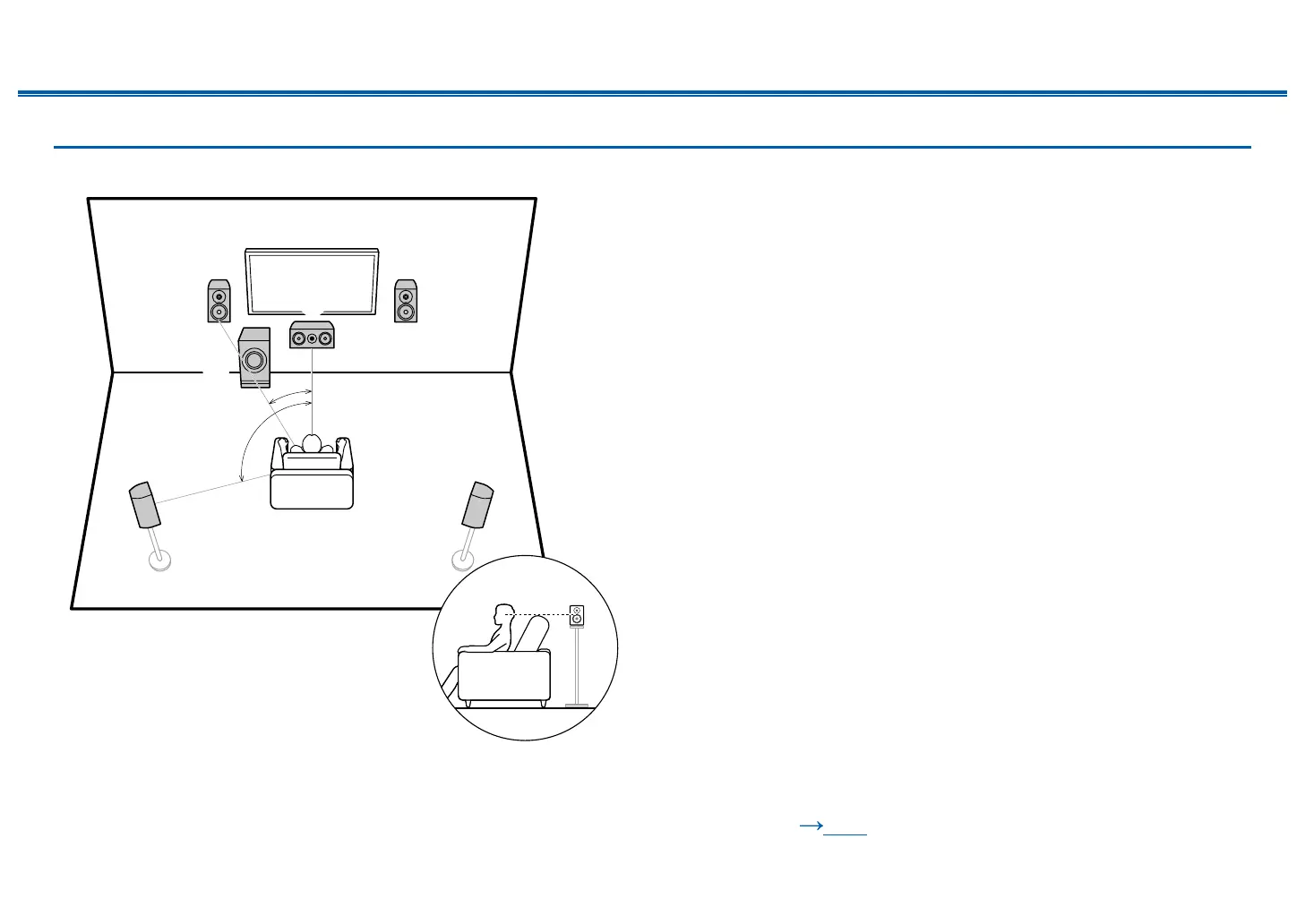

 5.1 Channel System
a
b
12
45
3
6
a: 22° to 30°, b: 120°
This is a basic 5.1 Channel System. Front speakers output the front stereo
sound, and a center speaker outputs the sound of the center of the screen, such
as dialogs and vocals. Surround speakers create the back sound eld. Powered
subwoofer reproduces the bass sound, and creates the rich sound eld.
The front speakers should be positioned at ear height while the surround
speakers should be positioned just above ear height. The center speaker
should be set up facing the listening position at an angle. Placing the powered
subwoofer between the center speaker and the front speaker gives you a natural
sound even when playing music sources.
1,2 Front Speakers
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
❏ Speaker Layouts and Selectable Listening
Modes ( p48)

Onkyo TX-SR494 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	4 - 16 Ω
Input sensitivity	200 mV
4Ω speaker support	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	109 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Audio (L/R) in	3
Digital audio optical in	1
Component video (YPbPr/YCbCr) in	0
Audio (L/R) out	8
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Wi-Fi	No
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
AirPlay	-
Display	LCD
HDCP version	2.2
Product color	Black
Audio decoders	DTS Virtual:X, Dolby Atmos
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	490 W
THX-certified	THX

Weight and Dimensions

Depth	328 mm
Width	435 mm
Height	160 mm
Weight	10500 g
