Onkyo TX-SV535 Instruction Manual

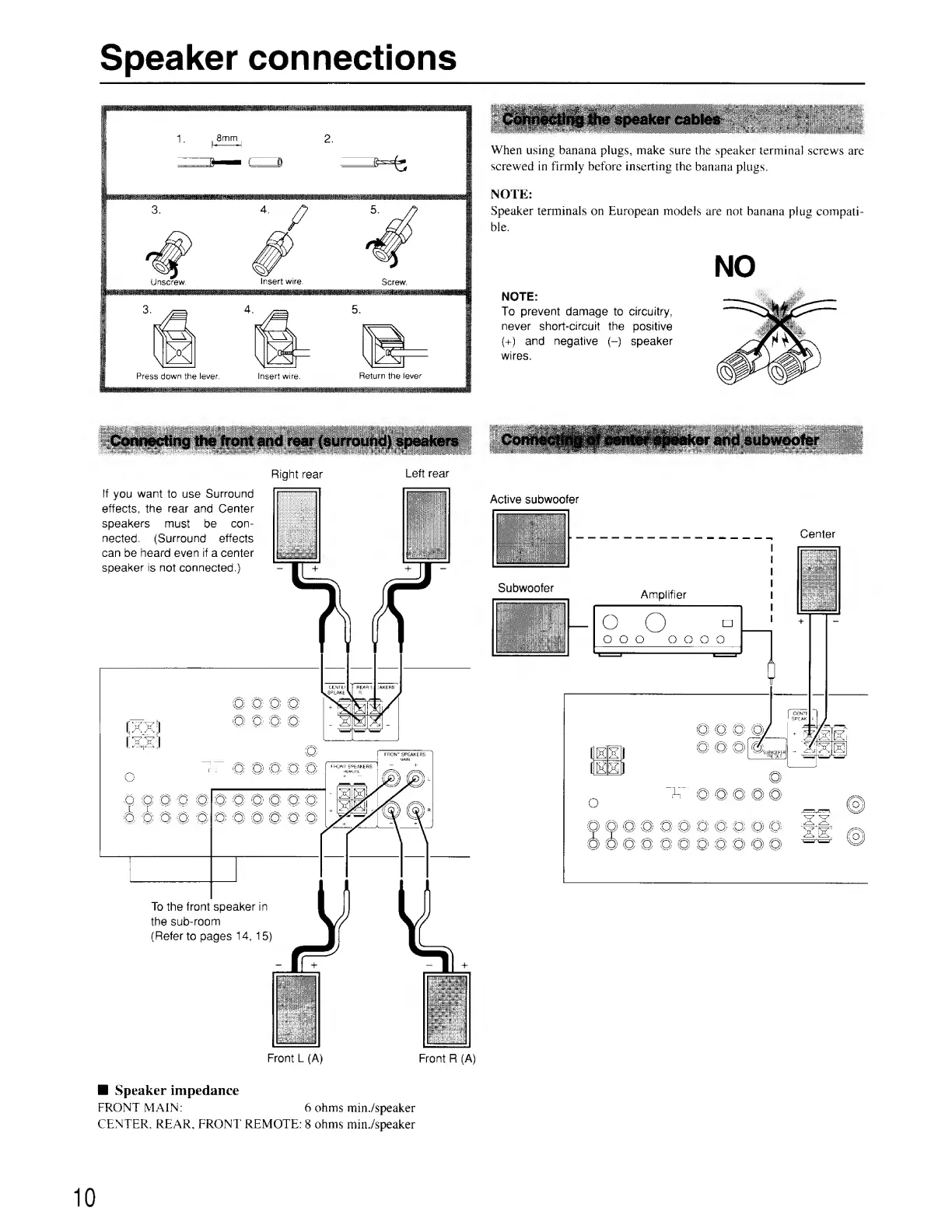

Speaker connections
When using banana plugs, make sure the speaker terminal screws are
screwed in firmly before inserting the banana plugs.
NOTE:
Speaker terminals on European models are not banana plug compati¬
ble.
NOTE:
To prevent damage to circuitry,
never short-circuit the positive
(+) and negative (-) speaker
wires.
NO
Right rear Left rear
Active subwoofer
■ Speaker impedance
FRONT MAIN: 6 ohms min./speaker
CENTER, REAR, FRONT REMOTE: 8 ohms min./speaker
10

Onkyo TX-SV535 Specifications

Amplifier Section

alternate channel attenuation	55 dB
power output stereo mode	80 watts per channel at 8 ohms
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%
frequency response	30 - 15, 000 Hz +/-1.5 dB
stereo separation	45 dB at 1 kHz / 30 dB at 10, 000 Hz
muting level	17.2 dBf, 2.0 pV (75 ohms)
continuous power output	2 x 100 watts at 8 ohms (DIN)
damping factor	60 at 8 ohms
input sensitivities phono	2.5 mV/50 kohms
input sensitivities CD/Tape play/Video in	150 mV/50 kohms
output level tape rec/video out	150 mV/2.2 kohms
pre out subwoofer	1 V/2.2 kohms
phono overload	120 mV RMS at 1, 000 Hz, 0.5% THD

Power Supply

power supply USA & Canadian models	AC 120 V, 60 Hz
power supply European models	AC 230 V, 50 Hz
power supply worldwide models	120 and 220-230 V switchable, 50/60 Hz

Tuner Section

FM tuning range	87.5 — 108.0 MHz (50 kHz steps)
usable sensitivity mono	11.2 dBf, 1.0 pV (75 ohms)
usable sensitivity stereo	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity mono	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity stereo	37.2 dBf, 20 pV (75 ohms)
capture ratio	1.5 dB
image rejection ratio USA & Canadian models	40 dB
image rejection ratio other area models	85 dB
IF rejection ratio	90 dB
signal-to-noise ratio mono	73 dB
signal-to-noise ratio stereo	67 dB

Dimensions and Weight

dimensions	455 x 170 x 389 mm
dimensions in inches	17-15/16" x 6-11/16" x 15-5/16"
mass	11.8 kg (26.0 lbs)
