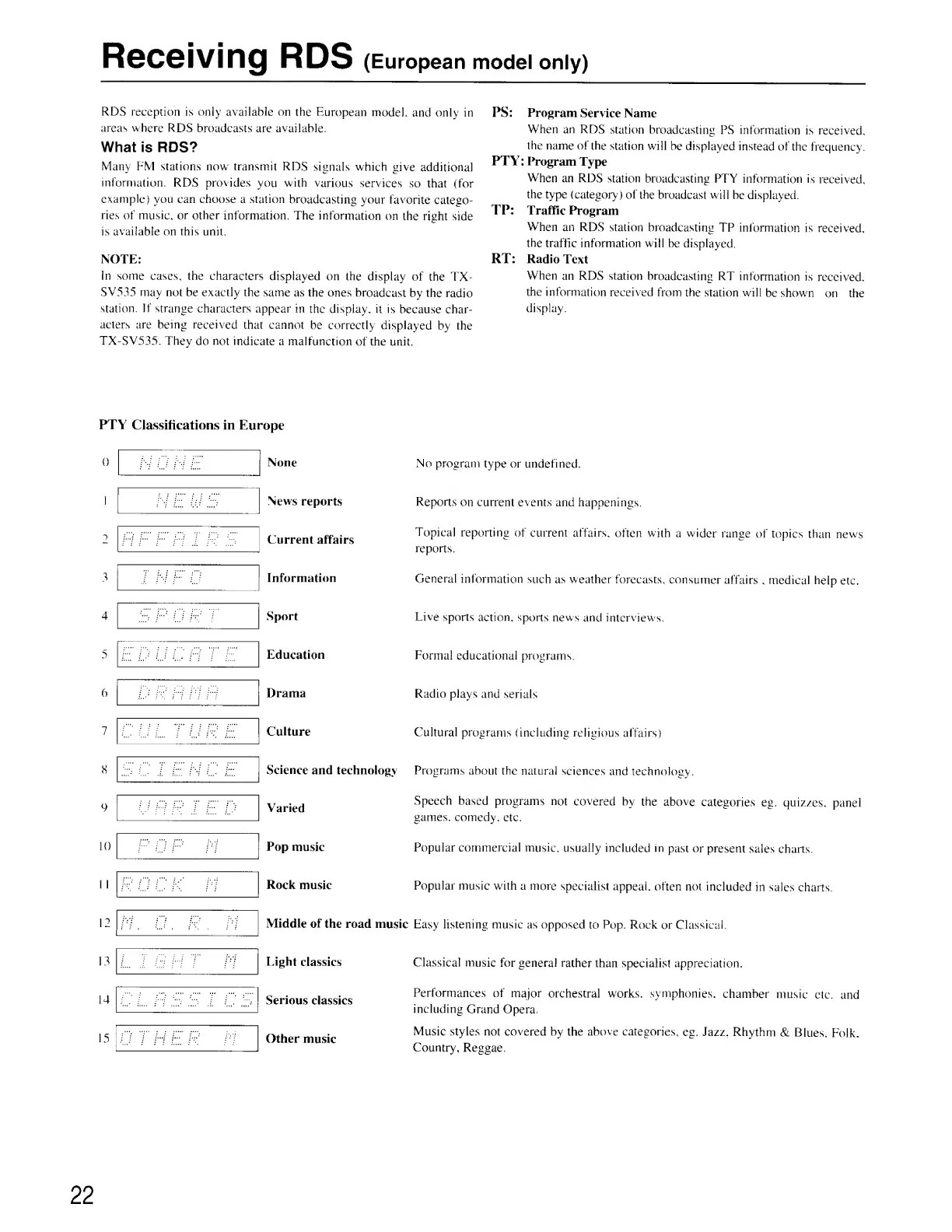

Receiving RDS (European model only)
RDS reception is only available on the European model, and only in
areas where RDS broadcasts are available.
What is RDS?
Many EM stations now transmit RDS signals which give additional
information. RDS provides you with various services so that (for
example) you can choose a station broadcasting your favorite catego¬
ries of music, or other information. The information on the right side
is available on this unit.
NOTE:
In some cases, the characters displayed on the display of the TX-
SV535 may not be exactly the same as the ones broadcast by the radio
station. If strange characters appear in the display, it is because char¬
acters are being received that cannot be correctly displayed by the
TX-SV535. They do not indicate a malfunction of the unit.
PS: Program Service Name
When an RDS station broadcasting PS information is received,
the name of the station will be displayed instead of the frequency.
PTY: Program Type
When an RDS station broadcasting PTY information is received,
the type (category) of the broadcast will be displayed.
TP: Traffic Program
When an RDS station broadcasting TP information is received,
the traffic information will be displayed.
RT: Radio Text
When an RDS station broadcasting RT information is received,
the information received from the station will be shown on the
display.
PTY Classifications in Europe
None
News reports
Current affairs
Information
Sport
Education
Drama
Culture
Science and technology
Varied
Pop music
Rock music
Middle of the road music
Light classics
Serious classics
Other music
No program type or undefined.
Reports on current events and happenings.
Topical reporting of current affairs, often with a wider range of topics than new's
reports.
General information such as weather forecasts, consumer affairs , medical help etc.
Live sports action, sports news and interviews.
Formal educational programs.
Radio plays and serials
Cultural programs (including religious affairs)
Programs about the natural sciences and technology.
Speech based programs not covered bv the above categories eg. quizzes, panel
games, comedy, etc.
Popular commercial music, usually included in past or present sales charts.
Popular music with a more specialist appeal, often not included in sales charts.
Easy listening music as opposed to Pop. Rock or Classical.
Classical music for general rather than specialist appreciation.
Performances of major orchestral works, symphonies, chamber music etc. and
including Grand Opera.
Music styles not covered by the above categories, eg. Jazz, Rhythm & Blues. Folk,
Country, Reggae.

Onkyo TX-SV535 Specifications

Amplifier Section

alternate channel attenuation	55 dB
power output stereo mode	80 watts per channel at 8 ohms
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%
frequency response	30 - 15, 000 Hz +/-1.5 dB
stereo separation	45 dB at 1 kHz / 30 dB at 10, 000 Hz
muting level	17.2 dBf, 2.0 pV (75 ohms)
continuous power output	2 x 100 watts at 8 ohms (DIN)
damping factor	60 at 8 ohms
input sensitivities phono	2.5 mV/50 kohms
input sensitivities CD/Tape play/Video in	150 mV/50 kohms
output level tape rec/video out	150 mV/2.2 kohms
pre out subwoofer	1 V/2.2 kohms
phono overload	120 mV RMS at 1, 000 Hz, 0.5% THD

Power Supply

power supply USA & Canadian models	AC 120 V, 60 Hz
power supply European models	AC 230 V, 50 Hz
power supply worldwide models	120 and 220-230 V switchable, 50/60 Hz

Tuner Section

FM tuning range	87.5 — 108.0 MHz (50 kHz steps)
usable sensitivity mono	11.2 dBf, 1.0 pV (75 ohms)
usable sensitivity stereo	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity mono	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity stereo	37.2 dBf, 20 pV (75 ohms)
capture ratio	1.5 dB
image rejection ratio USA & Canadian models	40 dB
image rejection ratio other area models	85 dB
IF rejection ratio	90 dB
signal-to-noise ratio mono	73 dB
signal-to-noise ratio stereo	67 dB

Dimensions and Weight

dimensions	455 x 170 x 389 mm
dimensions in inches	17-15/16" x 6-11/16" x 15-5/16"
mass	11.8 kg (26.0 lbs)
