Onkyo TX-SV535 Instruction Manual

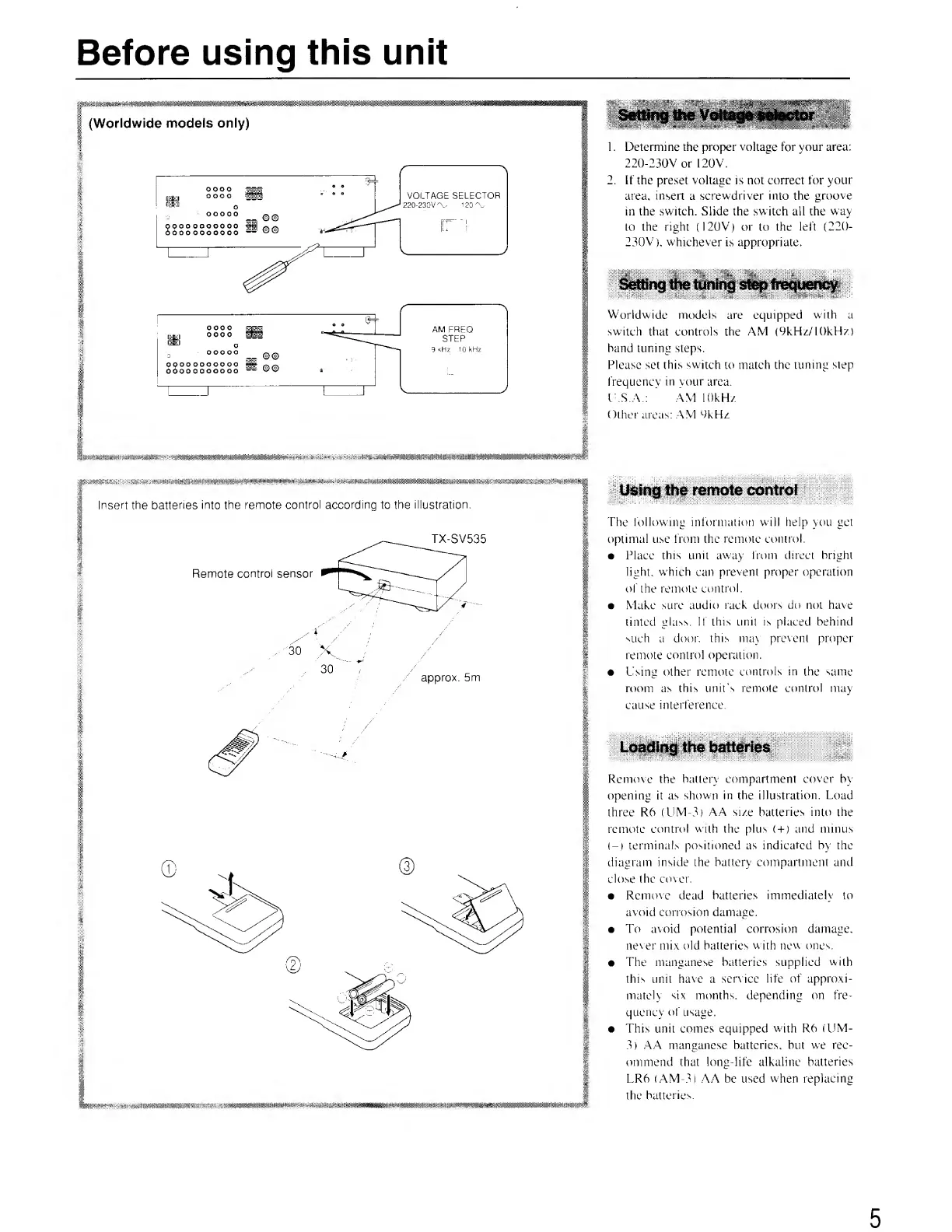

Before using this unit
(Worldwide models only)
VOLTAGE SELECTOR
22O-230V '"V 1 20 'X-
1. Determine the proper voltage for your area:
220-230V or 120V.
2. If the preset voltage is not correct for your
area, insert a screwdriver into the groove
in the switch. Slide the switch all the way
to the right (120V) or to the left (220-
230V). whichever is appropriate.
OOOOOOOOOOO id f-y ^
OOOOOOOOOOO 'SMSJ
\ii till i i
Worldwide models are equipped with a
switch that controls the AM (9kHz/l()kHz)
band tuning steps.
Please set this switch to match the tuning step
frequency in your area.
U.S.A.: AM 10kHz
Other areas: AM 9kHz
Insert the batteries into the remote control according to the illustration.
TX-SV535
Remote control sensor
30 X
approx. 5m
USlng th e remote control: ;
The following information will help you get
optimal use from the remote control.
• Place this unit away from direct bright
light, which can prevent proper operation
of the remote control.
• Make sure audio rack doors do not have
tinted glass. If this unit is placed behind
such a door, this may prevent proper
remote control operation.
• Using other remote controls in the same
room as this unit's remote control may
cause interference.
Remove the battery compartment cover by
opening it as shown in the illustration. Load
three R6 (UM-3) A A size batteries into the
remote control with the plus ( + ) and minus
(-) terminals positioned as indicated by the
diagram inside the battery compartment and
close the cover.
• Remove dead batteries immediately to
avoid corrosion damage.
• To avoid potential corrosion damage,
never mix old batteries w ith new ones.
• The manganese batteries supplied with
this unit have a service life of approxi¬
mately six months, depending on fre¬
quency of usage.
• This unit comes equipped with R6 (UM-
3) AA manganese batteries, but we rec¬
ommend that long-life alkaline batteries
LR6 (AM-3) A A be used when replacing
the batteries.
• ■ ■ . ■ - ... .
5

Onkyo TX-SV535 Specifications

Amplifier Section

alternate channel attenuation	55 dB
power output stereo mode	80 watts per channel at 8 ohms
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%
frequency response	30 - 15, 000 Hz +/-1.5 dB
stereo separation	45 dB at 1 kHz / 30 dB at 10, 000 Hz
muting level	17.2 dBf, 2.0 pV (75 ohms)
continuous power output	2 x 100 watts at 8 ohms (DIN)
damping factor	60 at 8 ohms
input sensitivities phono	2.5 mV/50 kohms
input sensitivities CD/Tape play/Video in	150 mV/50 kohms
output level tape rec/video out	150 mV/2.2 kohms
pre out subwoofer	1 V/2.2 kohms
phono overload	120 mV RMS at 1, 000 Hz, 0.5% THD

Power Supply

power supply USA & Canadian models	AC 120 V, 60 Hz
power supply European models	AC 230 V, 50 Hz
power supply worldwide models	120 and 220-230 V switchable, 50/60 Hz

Tuner Section

FM tuning range	87.5 — 108.0 MHz (50 kHz steps)
usable sensitivity mono	11.2 dBf, 1.0 pV (75 ohms)
usable sensitivity stereo	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity mono	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity stereo	37.2 dBf, 20 pV (75 ohms)
capture ratio	1.5 dB
image rejection ratio USA & Canadian models	40 dB
image rejection ratio other area models	85 dB
IF rejection ratio	90 dB
signal-to-noise ratio mono	73 dB
signal-to-noise ratio stereo	67 dB

Dimensions and Weight

dimensions	455 x 170 x 389 mm
dimensions in inches	17-15/16" x 6-11/16" x 15-5/16"
mass	11.8 kg (26.0 lbs)
