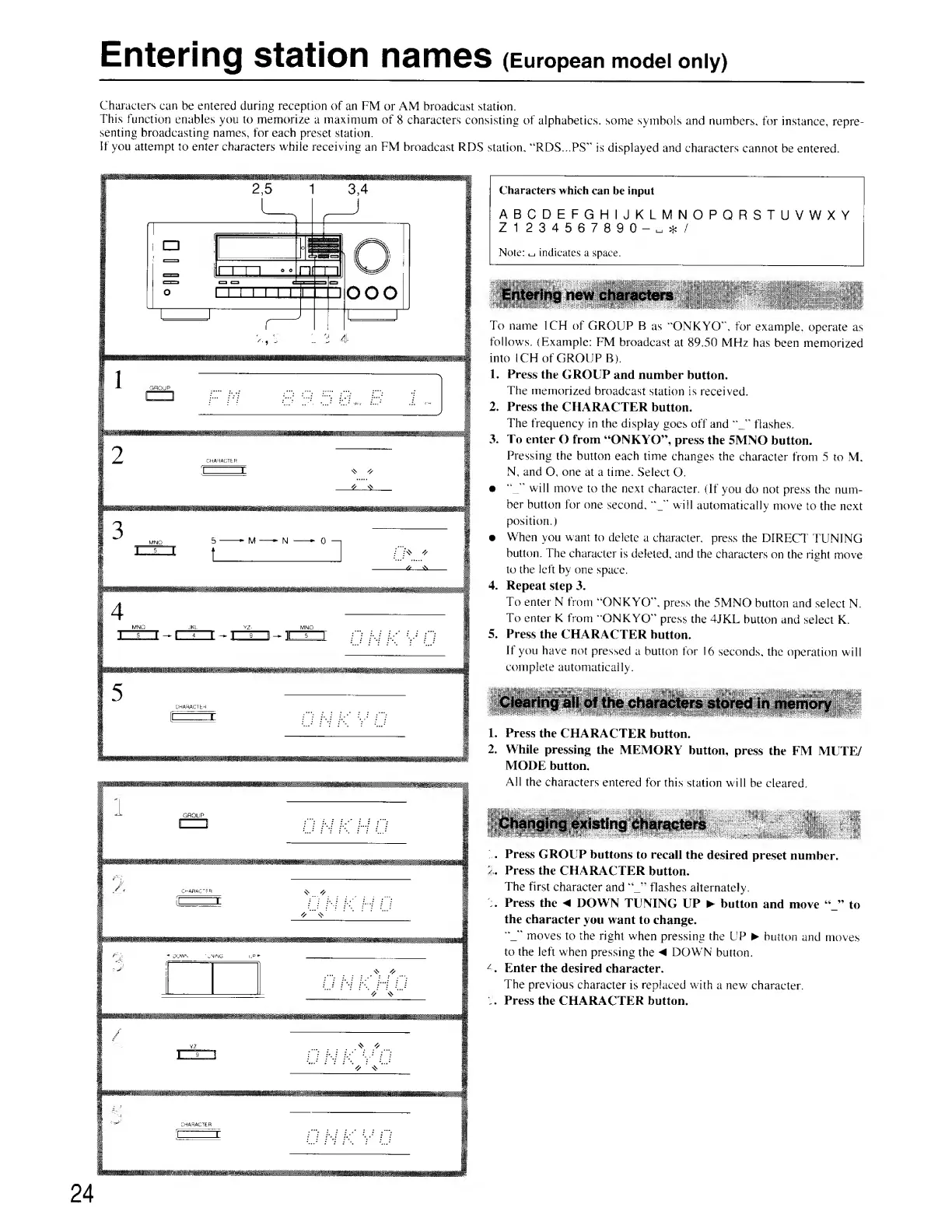

Onkyo TX-SV535 Instruction Manual

Entering station names (European model only)
Characters can be entered during reception of an FM or AM broadcast station.
This function enables you to memorize a maximum of 8 characters consisting of alphabetics, some symbols and numbers, for instance, repre¬
senting broadcasting names, for each preset station.
If you attempt to enter characters while receiving an FM broadcast RDS station, “RDS...PS” is displayed and characters cannot be entered.
Characters which can be input
ABCDEFGHIJKLMNOPQRSTUVWXY
Z 1 234567890-.,*/
Note: t_i indicates a space.
Entering new
To name 1CH of GROUP B as "ONKYO”, for example, operate as
follows. (Example: FM broadcast at 89.50 MHz has been memorized
into 1CH of GROUP B).
1. Press the GROUP and number button.
The memorized broadcast station is received.
2. Press the CHARACTER button.
The frequency in the display goes off and flashes.
3. To enter O from “ONKYO”, press the 5MNO button.
Pressing the button each time changes the character from 5 to M,
N, and O, one at a time. Select O.
• will move to the next character. (If you do not press the num¬
ber button for one second, will automatically move to the next
position.)
• When you want to delete a character, press the DIRECT TUNING
button. The character is deleted, and the characters on the right move
to the left by one space.
4. Repeat step 3.
To enter N from “ONKYO”, press the 5MNO button and select N.
To enter K from “ONKYO” press the 4JKL button and select K.
5. Press the CHARACTER button.
If you have not pressed a button for 16 seconds, the operation will
complete automatically.
1. Press the CHARACTER button.
2. While pressing the MEMORY button, press the FM MUTE/
MODE button.
All the characters entered for this station will be cleared.
:. Press GROUP buttons to recall the desired preset number.
2 . Press the CHARACTER button.
The first character and flashes alternately.
.. Press the ◄ DOWN TUNING UP ► button and move to
the character you want to change.
moves to the right when pressing the UP ► button and moves
to the left when pressing the ◄ DOWN button.
4-. Enter the desired character.
The previous character is replaced with a new character.
U Press the CHARACTER button.
24

Onkyo TX-SV535 Specifications

Amplifier Section

alternate channel attenuation	55 dB
power output stereo mode	80 watts per channel at 8 ohms
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%
frequency response	30 - 15, 000 Hz +/-1.5 dB
stereo separation	45 dB at 1 kHz / 30 dB at 10, 000 Hz
muting level	17.2 dBf, 2.0 pV (75 ohms)
continuous power output	2 x 100 watts at 8 ohms (DIN)
damping factor	60 at 8 ohms
input sensitivities phono	2.5 mV/50 kohms
input sensitivities CD/Tape play/Video in	150 mV/50 kohms
output level tape rec/video out	150 mV/2.2 kohms
pre out subwoofer	1 V/2.2 kohms
phono overload	120 mV RMS at 1, 000 Hz, 0.5% THD

Power Supply

power supply USA & Canadian models	AC 120 V, 60 Hz
power supply European models	AC 230 V, 50 Hz
power supply worldwide models	120 and 220-230 V switchable, 50/60 Hz

Tuner Section

FM tuning range	87.5 — 108.0 MHz (50 kHz steps)
usable sensitivity mono	11.2 dBf, 1.0 pV (75 ohms)
usable sensitivity stereo	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity mono	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity stereo	37.2 dBf, 20 pV (75 ohms)
capture ratio	1.5 dB
image rejection ratio USA & Canadian models	40 dB
image rejection ratio other area models	85 dB
IF rejection ratio	90 dB
signal-to-noise ratio mono	73 dB
signal-to-noise ratio stereo	67 dB

Dimensions and Weight

dimensions	455 x 170 x 389 mm
dimensions in inches	17-15/16" x 6-11/16" x 15-5/16"
mass	11.8 kg (26.0 lbs)
